GE logiq f8 ultrasonidos
GE

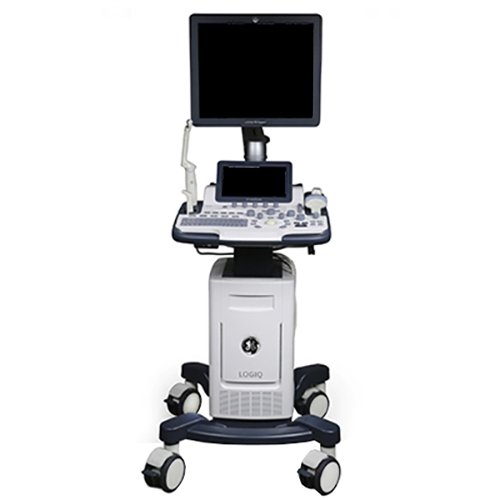

GE Logiq F8

Solicite una cotización
Cotizaciones en menos de 24 horas

The GE Logiq F8 Urology Ultrasound System combines advanced ultrasound imaging technologies with a lightweight, small-sized, low-cost ultrasound specifically designed for urology applications such as kidney, scrotum, and prostate examinations.

The Logiq F8 can also be used for other applications, although it is specifically designed for urologists. A new BE9CS-RS bi-plane rectal transducer has been added to the system, improving patient comfort and image quality. It is a multi-purpose ultrasound imaging system designed for abdominal, obstetric, gynecological, small parts, musculoskeletal, vascular/peripheral vascular, urological, pediatric, transcranial, and cardiac applications.

  • Automatic optimization
  • CrossXBeam
  • Speckle Reduction SRI
  • 4 active probe ports
  • 19″ LCD on an articulated arm
  • 4″ LCD touch screen
  • More than 1,000 frames or more than 60 seconds of CINE memory (128 MB) depend on FOV, lines of
  • scanning, etc.)
  • Loop storage with automatic optimization
  • Small footprint
  • Light

Dimensions

  • Height with 19″ LCD screen: Maximum 1495 mm (58.9 in) Minimum 1410 mm (55.5 in)
  • Width: Keyboard: 500 mm (19.7 in), Wheels: 720 mm (28.3 in)
  • Maximum depth: 810 mm (31.9 in) Wheel: 800 (31.5 in)

Weight (without peripherals)

  • 58 kg

Electrical energy

  • Voltage 100-240 VAC
  • Frequency 50/60 Hz
  • Maximum power consumption of 400 VA with
  • Peripherals

Monitor

  • 19″ (482.6 mm) high-resolution LCD
  • Articulated monitor arm
  • Tilt / Rotate / Translate
  • Tilt angle: +25˚ / -90˚
  • Rotate the angle: ± 90˚
  • Translate horizontally 800 mm
  • Translate vertically 164.5 mm
  • Folding and locking mechanism for transport
  • Brightness and contrast adjustment

User interface Operator keyboard

  • Full-size ergonomic keyboard
  • 8 TGC capsules
  • 8.4″ (213.4 mm) LCD Touchscreen

Console design

  • Max. 4 active probe ports
  • Integrated hard drive (500 GB)
  • Built-in speakers
  • Probe holders. Removable for cleaning and washing
  • Gel holder, removable for cleaning and washing
  • Front and rear handles
  • probe cable tray
  • Probe cable management slots
  • Easily removable air filters
  • Wheels: Wheel diameter: 125 mm
  • A locking mechanism that provides rotary locking and wheel swivel locking
