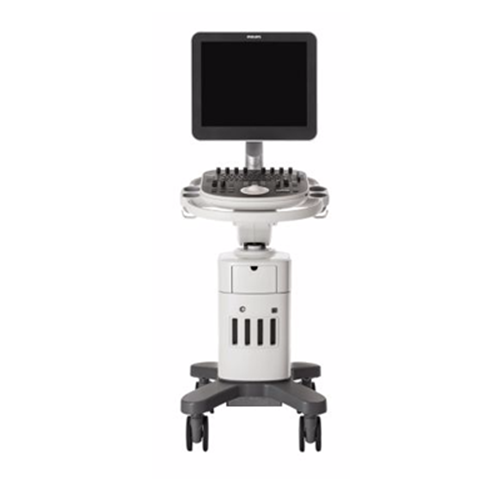

Philips ClearVue 850 Ultrasound Features
The Philips ClearVue 850 is a midrange Ultrasound. The ClearVue 850 is mainly used for women’s health but also offers ultrasonic imaging for vascular, cardiac, small parts, and echo exams. The System shares the same architecture as the ClearVue 350, 550, and 650. The only difference is that the CleaVue 850 offers more advanced features. These features include; Iscan, AutoSCAN, SoonoCT, and XRES. The 850 offers additional 4D imaging options 4D Convex, 4D transvaginal, Auto Face Reveal, iSlice, and Fetal STIC. The Philips Ultrasound can provide 2D, 3D, and 4D imaging options. Additional features include Blood flow and stress imaging. The ultrasound system offers quick action buttons for the most commonly used obstetric measurements and imaging modes. The 19-inch monitor comes on an articulating arm along with a height-adjustable control panel, for maximum user comfort.
- 19-inch, 360-degree articulating monitor
- Ergonomically advanced console for user height adjustment and comfort
- Monitor tilt and swivel
- Monitor articulating arm
- AutoSCAN automatically identifies tissue type and continuously adjusts image gain
- 3D/4D for visualization and analysis of volume data
- Upgradeable to 4D
- Stress echo for cardiac imaging
- Strain elastography
- Pulse inversion harmonics
- SonoCT
- XRES
- FloVue advanced imaging mode for direct visualization of blood flow in the vasculature
- Intima media thickness (IMT) imaging to automate measurement
- iSlice for quick volumetric display
- Curved ROI for OB imaging
- One-button iSCAN
- Active Array for superb image quality
- Broadband beamforming
- Tissue harmonic imaging
Philips ClearVue 850 Ultrasound Specifications
Dimensions
- Width: Keyboard: 500 mm (19.7 in) Caster: 720 mm (28.3 in)
- Depth: Maximum: 697 mm (27.4 in) Caster: 800 mm (31.5 in)
- Height: Maximum: 1412 mm (55.6 in)
- Weight: 56 kg, 123 lbs
General Specifications
- Digital beamformer
- Displayed imaging depth: 0 – 33 cm (probe dependent)
- Minimum depth of field: 0 – 2 cm (probe dependent)
- Maximum depth of field: 0 – 33 cm (probe dependent)
- Continuous dynamic receive focus/continuous dynamic receive aperture
- Adjustable dynamic range up to 120 dB
Power
- Nominal input voltage: 100-240 VAC, frequency 50/60 Hz
- Power consumption maximum: 400 VA with peripherals
System Overview
- Monitor (inch): 19” LCD
- Tilt/Rotate Adjustable Monitor: Yes
- Monitor Resolution: 1280*1024
- Touch Screen (Inch): No
- Trackball or Trackpad: Trackball
- CP Back-Lighting: Yes
- Weight: 115 lbs (52kg)
- Probe Ports: 4
- Battery: No
- Sleep Mode (Quick Start): No
- Maximum Depth of Field: 30cm
- Minimum Depth of Field
- Cart (HCU): No
- Independent Steer & Lockable Wheels: Yes
Imaging Modes
- 2D, M mode: Yes
- M-color Flow Mode: Yes
- Anatomical M-mode: Yes
- Trapezoidal Mode: Yes
- Color, Power Angio, Pulse Wave Doppler: Yes
- Bi-directional Power (=HD FLOW): Yes
- SCW Doppler: Yes
- Tissue Doppler(Velocity) Imaging: Yes
- Freehand 3D: Yes
- Live 3/4D OB/GYN: Yes
- HD Live: No
- STIC (Spatio-Temporal Image Correlation): Yes
- Live 3D Echo: No
- Stress Echo: No
- Strain and Strain Rate (Cardiac): No
- B Flow: Yes
- Panoramic Imaging (=Logiq view): Yes
- Contrast Imaging – Cardiac: No
- Contrast Imaging – General Imaging: No
- Strain-based Elastography: Yes
- Shear Wave Elastography No
Connectivity
- DICOM 3.0: Yes
- DICOM SR_Cardiac: Yes
- DICOM SR_Vascular: Yes
- DICOM SR_OB/GYN: Yes
- JPEG, WMV, & AVI: Yes
- USB: Yes(3)
- HDD/SDD: 500GB
- DVD/CD RW: Yes
- Wireless LAN: Nos
