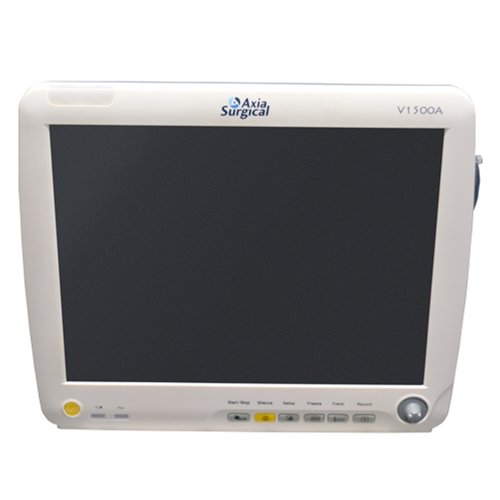

Axia V1500A Touch Screen
The Axia V1500A monitor is designed for a fast-paced work environment with an intuitive touchscreen . Patient information and vital sign settings can be quickly updated to meet the needs of changing patient conditions. Its upgradeable design adapts and moves seamlessly between various patient care settings. It offers ECG with arrhythmia detection, standard non-invasive blood pressure measurements, motion-tolerant SpO2, temperature, respiratory rate, and capnography.
The Axia V1500A monitor offers multiple connectivity solutions for monitoring multiple monitors and/or managing patient data on an electronic health record platform or hospital information system.
- Optional: Integrated Dräger 5-Agent anesthesia gas bank with CO2 capabilities
- 15-inch high-resolution touchscreen
- Capnography with EtCO2 monitoring (optional)
- Automatic adjustment of alarm limits
- Color-coded alarms
- Graphical and tabular trends (72 hours)
- Patient data entry
- OxiCRG, drug dosage calculation
- Tracking: 8 waveforms
- Trend time: 1 – 72 hours
- Network capability (wireless and wired)
- The color of the waveforms can be changed
- Backup battery (removable batteries)
- Weight: 10.85 lbs.
- Applications: neonatal, pediatric, and adult patients
General Specifications
- Screen: 12.1-inch color touchscreen
- Tracking: 8 waveforms
- Indicator: alarm indicator, power indicator, QRS beep, and alarm sound
- Trend time: 1 – 72 hours, Recorder: built-in, thermal matrix, 3 channels, Recording width: 48 mm, Recorder paper: 50 mm, Recording speed: 25 mm/s, 50 mm/s
Connection
- Industry standard 802.11b/g wireless network
Voltage
- Power supply: external AC power or internal battery
- AC Power: 100 ~ 240VAC, 50 / 60Hz, 150VA
- Battery: Built-in rechargeable lithium-ion
- Operating time: over 3 hours
Environmental Specifications
- Temperature: Operating: 5 ~ 40 °C; Storage: -20 ~ 65 °C
- Humidity range: operating: ≤80% Storage: ≤80%
ECG
- Input: 5-lead ECG cable and standard AAMI line for connection
- Lead selection: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST
- Profit options: x0.5, x1, x2, x4
- Frequency characteristic: 0.05 ~ 35 HZ (+ 3dB)
- ECG waveforms: 7 channels
- Penetration voltage: 4000VAC 50/60Hz
- Sweep speed: 12.5, 25, 50 and 100 mm/sec (left to right or right to left)
- HR display range: 30 ~ 300bpm
- Accuracy: ± 1 bpm or ± 1%, whichever is greater
- Alarm limit range adjustment: upper limit 100~200bpm, lower limit 30~100bpm
RESP
- Measurement method: RA-LL impedance
- Range: 0 ~ 120 rpm
- Accuracy: ± 3 rpm
- Alarm limit setting: upper limit 6 ~ 120 rpm, lower limit 3 ~ 120 rpm
- Sweep speed: 12.5, 25, 50 and 100 mm/sec (left to right or right to left)
Sp02
- ASpO2: Anti-motion SpO2
- SpO2% range: 0-100%
- SpO2 accuracy: ± 2% (70 ~ 100%, no movement) ± 3% (70 ~ 100%, movement)
- Pulse rate range: 30-250 bpm
- Pulse rate accuracy: ± 2 bpm (no movement), ± 3 bpm (movement)
- Alarm limit settings: upper limit 70~100%, lower limit 70~100%
- SpO2 probe: red LED wavelength 660nm ± 5nm, infrared LED wavelength 940nm ± 10nm
NIBP
- Measurement technology: Automatic oscillating measurement
- Cuff inflation: <30 s (0 ~ 300 mmHg, standard adult cuff)
- Measurement period: AVE <40 s
- Mode: Manual, Automatic
- Measurement interval in AUTO mode: 2 min ~ 4 h
- Pulse rate range: 30 ~ 250 (bpm)
- Adult/Pediatric mode: SYS: 40 ~ 250 (mmHg), DIA: 15 ~ 200 (mmHg)
- Neonatal mode: SYS: 40 ~ 135 (mmHg), DIA: 15 ~ 100 (mmHg)
- Maximum mean error: ± 5 mmHg
- Maximum standard deviation: 8 mmHg
- Resolution: 1 mmHg
- Overpressure protection: adult mode: 300 (mmHg)
- Neonatal mode: 160 (mmHg)
- Alarm limit setting: SYS: 50 ~ 240 mmHg
- DIA: 15 ~ 180 mmHg
