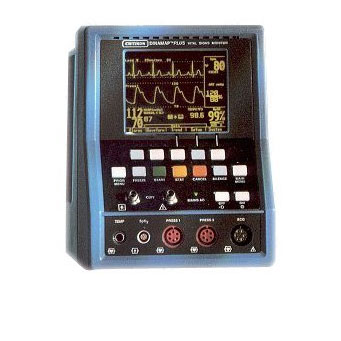

GE Dinamap Critikon 8720
Now the DINAMAP® Compact Monitor is available in four different configurations offering you the technology that’s right for you.
Each model features our unique DINAMAP® Technology, the «Gold Standard» in BP accuracy. Optional, integrated printers are also available in each model.
- Suitable for Adult, Pediatric and Neonatal Use
- Maintains Accuracy even when the Patient Moves
- Allows you to take all Connected Vitals with the Press of One Button
- STAT Mode for Rapid BP Readings in Emergency Situations
- Single Determinations or Automatic Monitoring of Blood Pressure
- User-Adjustable Target Inflation Pressure
- Oral / Rectal Predictive Temperature
- Built-In Printer Available
Specifications:
Noninvasive Blood Pressure
- Heart Rate Range: 10-250 bpm
- Connector: AAMI recommended, ECGC; MS3102A-14S-6S
- Leads: Selectable, I, II, III Lead-off detection
- Band Width: 0.5-40 Hz
- Sweep Speed: 12.5, 25 and 50 mm per second
- Gain: 1mV to 8mV full scale, selectable in 5 steps
- QRS Detection Tone: Volume selectable from 0(off) to 15
- Alarm Limits: Heart rate-high, 80-250 bpm; low, 10-140 bpm
ECG
- Heart Rate Range: 10-250 bpm
- Connector: AAMI recommended, ECGC; MS3102A-14S-6S
- Leads: Selectable, I, II, III Lead-off detection
- Band Width: 0.5-40 Hz
- Sweep Speed: 12.5, 25 and 50 mm per second
- Gain: 1mV to 8mV full scale, selectable in 5 steps
- QRS Detection Tone: Volume selectable from 0(off) to 15
- Alarm Limits: Heart rate-high, 80-250 bpm; low, 10-140 bpm
Oxygen Saturation
- Accuracy: (± standard deviation) ±2% at 90-99%; ±3% at 75-89%; unspecified under 75%
- Saturation Range: 40-99%
- Pulse Rate: From 30-250 bpm
- Pulse Averaging: User selectable for 0 to 30 sec. in increments of 3. Preset at 6 seconds at power turn on.
- Saturation Pitch Indicator: Pitch changes with saturation. Volume selectable from 0(off) to 15.
- Alarm Limits: Saturation – high, 90-99%; low, 40-95%
Alarm Functions
- System: Internal system test performed at power-up and during operation
- Volume: Adjustable from 1 to 15 on all parameters
- NIBP: Procedural alarm for overpressure, excess determination time, excess pump up time, no determination
- SpO2: Procedural alarms for low signal, probe disconnect, probe failure
Mechanical
- Weight: 9.8 lbs
- Dimensions: 9.25 (H) × 720 (W) × 8.5 (D) inches
- Display: Electroluminescent, 320 × 256 pixels; viewing area, 3.0 (H) × 3.8 (W) inches
- Power Requirements: 88-268 VAC; 47-63 Hz
- Fuse Requirements: 2.0 amps
- Leakage Current: <100µA
