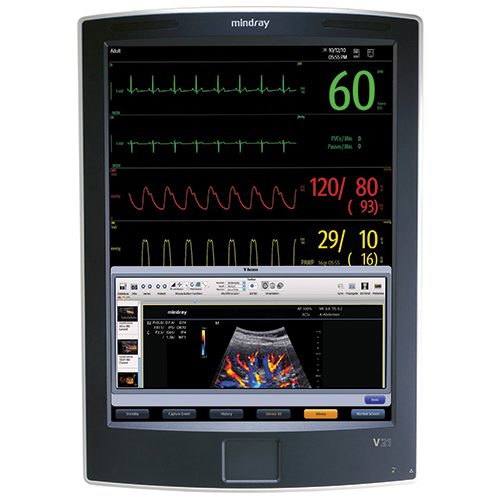

Mindray V21 Features
The Mindray V21 monitoring platform is a modular patient monitoring system. The system architecture allows users to customize, by removal or addition of modules, monitored parameters based on patients monitoring need or acuity level. The V21 monitoring platform maximizes the amount of viewable data through the use of a portrait display orientation.
- 21.3 in color touchscreen display with up to 12 waveforms.
- 3, 5,6, or 12 lead ECG.
- Ability to integrate with Panorama Central Stations and Nurse Call Systems.
- IV drug calculations and hemodynamic calculations.
- Modern User-interface.
- Interchangeable system elements.
- Consistent performance and easy maintenance.
Mindray V21 Specifications
Dimensions
- Height: 23 in (58.4 cm)
- Width: 16 in (40.6 cm)
- Depth: 9 in (22.9 cm)
- Weight: 23 lbs (10.4) (Without batteries)
Display
- Type: TFT Display
- Size: 21.3 in (54.1 cm)
- Aspect Ratio: 3:4
- Resolution: 1024 x 768 pixels
ECG (3,5,6 Lead)
- Range: Neonatal BPM: 30 to 350; Pediatric and Adult BPM: 30 to 300
- Resolution: 1 BPM
- Accuracy: ±3 BPM or ±3% from 30 to 250 BPM, whichever is greater and ±5% in the 251 to 350 BPM range
ECG (12 Lead)
- Range: Neonatal, Pediatric, and Adult BPM: 30 to 300
- Resolution: 1 BPM
- Accuracy: ±3 BPM or ±3% from 30 to 250 BPM, whichever is greater and ±5% in the 251 to 350 BPM range
NIBP Systolic Pressure
- Accuracy: Mean error ±5 mmHg
- Standard Deviation: Less than 8 mmHg
- Measurement Range: Adult Mode: 55 to 235 mmHg; Pediatric Mode: 55 to 160 mmHg; Neonate Mode: 45 to 120 mmHg
- Resolution: 1 mmHg
NIBP Diastolic Pressure
- Accuracy: Mean error ±5 mmHg
- Standard Deviation: Less than 8 mmHg
- Measurement Range: Hg Adult Mode: 30 to 200 mmHg; Pediatric Mode: 30 to 150 mmHg; Neonate Mode: 20 to 100 mmHg
- Resolution: 1 mmHg
NIBP Heart Rate
- Accuracy: Greater of ± 3 BPM or ± 3%
- Resolution: 1 BPM
- Measurement Range: Adult Mode:35 to 245 BPM; Pediatric Mode:35 to 245 BPM; Neonate Mode:70 to 245 BPM
IBP
- Accuracy: ± 2mmHg or 2% of the signal value whichever is greater (excluding transducer error).
- Resolution: 1 mmHg
IBP Heart Rate
- Range: Adult Mode:30 to 300 BPM; Pediatric Mode:30 to 300 BPM; Neonate Mode: 30 to 350 BPM
- Resolution: 1 BPM
- Accuracy: ± 3 BPM or ± 3% at 30 to 250 BPM ± 5 BPM or ± 5% from 251 to 350 BPM
Temperature
- Range: 59°F to 113°F (15°C to 45°C)
- Resolution: 0.1°F (0.1°C)
- Accuracy: ± 0.2°F (± 0.1°C)
SpO2
- Range: 70% to 100%
- Resolution: 1%
- Update Rate: 2 seconds
- Nellcor SpO2 Heart Rate: Range: 20 to 249 BPM; Accuracy ±3 BPM
- Massimo SpO2 Heart Rate: Range: 26 to 239 BPM; Accuracy ±3 BPM
Thermodulation Cardiac Output (CO)
- Range: 0.2 to 20.0 liters/minute
- Range for Hospira: 1.0 to 20.0 liters/minute
- Range for Edwards Life Science: 1.0 to 20.0 liters/minute
- Resolution: 0.1 liters/minute
- Accuracy: 5% or 0.2 liters/minute, whichever is greater
- Repeatability: + 2% or 0.2 liters/minute, whichever is greater as measured by electronically generated flow curves
CO2
- Performance: 0-99 mmHg
- Respiration Rate Range: 0 to 150 RPM
- Flow Rate: 50 ml/min -7.5 + 15 ml/min, flow measured by volume
- Respiration Rate Accuracy: 0 to 70 RPM ± 1 RPM; 71 to 120 RPM ± 2 RPM; 121 to 150 RPM ± 3 RPM
