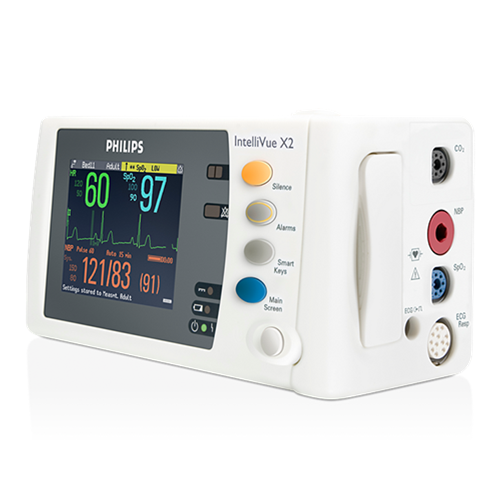

Philips IntelliVue MMS X2

Philips IntelliVue X2 Features

The Philips IntelliVue X2 Multi-Measurement Module is a versatile patient monitoring device with a color touchscreen display. It can simultaneously monitor 3-, 5-, 6- or 10-lead ECG (including arrhythmia and ST monitoring), respiration, SpO2, NBP and either invasive pressure and temperature, or CO2.

• One of the lightest, smallest and rugged critical care transport monitors available.
• An MMS with the display, alarm capability, 3-hour removable battery, and extended trends.
• Crisp, colorful touchscreen with 3.5” display with seamless electronic recording.
• Connect to a large display solution based on Philips IntelliVue XDS software to transform the compact IntelliVue X2 into a versatile standalone monitor with the same outstanding screen flexibility available in high-acuity IntelliVue monitors.
• Transmits data wired or wirelessly to the IntelliVue Information Center, or just plug and play to upload data to another IntelliVue monitor.

Philips IntelliVue X2 Specifications

Dimensions

• Height: 3.9 In (9.9 cm)
• Width: 7.4 In (18.8 cm)
• Depth: 3.4 In (8.6 cm)
• Weight: 2.8 lbs. (1.25 kg)

Power

• Power consumption
  • <12 W average
  • <30 W while the battery is charging
• Operating Voltage: 36 to 60 V DC floating

Battery

• Operating Time (Basic Monitoring Configuration): 2.5 Hours
• Charge Time (Off): 2 Hours
• Charge Time (On): 12 Hours

Measurements

• Cardiotach
  • Range
    • Adult/pedi: 15 to 300 bpm
    • Neo range: 15 to 350 bpm
  • Accuracy: ±1% of range
  • Resolution: 1 bpm
  • Sensitivity: ≥200 μVpeak
• PVC Rate
  • Range: 0 to 300 bpm
  • Resolution: 1 bpm
• ST Numeric
  • Range: -20 to +20 mm
  • Accuracy: ±0.5 mm or 15%, whichever is greater
  • Resolution: 0.1 mm
• QT Numeric
  • Range: 200 to 800 ms
  • Accuracy: ±30 ms
  • Resolution: 8 ms
• QTc Numeric
  • Range: 200 to 800 ms
  • Resolution: 1 ms
• ΔQTc Numeric
  • Range: -600 to +600 ms
  • Resolution: 1 ms
• QT-HR Numeric
  • Range – adult: 15 to 300 bpm
  • Range – pediatric and neonatal: 15 to 350 bpm
• Sinus and SV Rhythm Ranges
  • Brady
    • Adult: 15 to 59 bpm
    • Pedi: 15 to 79 bpm
    • Neo: 15 to 89 bpm
  • Normal
    • Adult: 60 to 100 bpm
    • Pedi: 80 to 160 bpm
    • Neo: 90 to 180 bpm
  • Tachy
    • Adult: >100 bpm
    • Pedi: >160 bpm
    • Neo: >180 bpm
• Bandwidth
  • Diagnostic Mode: Adult/neo/pedi: 0.05 to 150 Hz
  • Extended Monitoring Mode: Neo/pedi: 0.5 to 150 Hz
  • Monitoring Mode
    • Adult: 0.5 to 40 Hz
    • Neo/pedi: 0.5 to 55 Hz
  • Filter Mode: Adult/neo/pedi: 0.5 to 20 Hz
