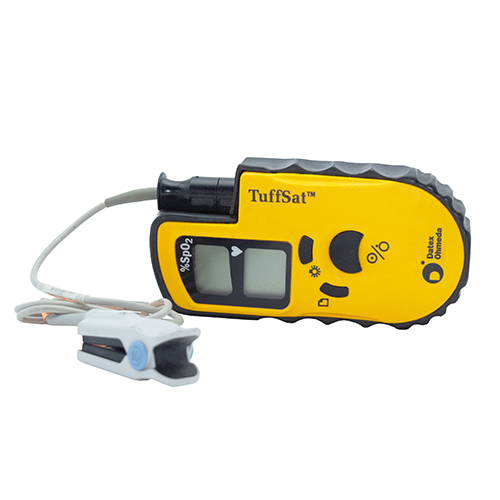

GE Datex Ohmeda Tuffsat Features
The GE Datex Ohmeda TuffSat is a Handheld Pulse Oximeter. it was designed for spot-checking Oxygen Saturation (SpO2) and Pulse rate. The TuffSat runs off of four 1.5 v alkaline AA batteries. The Pulse Oximeter is ideal for quick reads in the field and can be used in respiratory care, hospital satellite facilities, doctor’s offices, transport, EMS, and rehabilitation facilities.
The TuffSat can continuously calculate SpO2 levels, unlike other Pulse Oximeters. With the TruTrak data ample from the TuffSat system it can even provide a reading during times of low perfusion, motion, and even electrical interference. The system can easily fit in a pocket or be attached to a belt. with a backlit screen, it is even easy to see the readings in low light. The Ge Datex Ohmeda TuffSat comes in a variety of colors; white, blue, pink, and yellow.
- Lightweight, ergonomic design.
- Rubber grip offers secure handling.
- Intuitive feature set-minimal training required.
- Rigorously stress tested – exceeds international durability standard.
- Reduced cost of ownership.
- Water-resistant for ultimate protection in all conditions.
- Relative Perfusion Index helps locate the best site for the sensor by providing a quantitative value to compare the strength of the pulse signal at different sites on the patient
- Superior portability.
- fits conveniently in a pocket or can be worn using the included carrying case.
- Excellent visibility in low light conditions. Backlit, large LCD display provides easy to read numbers.
- Low battery indicator for added convenience
GE Datex Ohmeda Tuffsat Specifications
Dimensions
- Height:6 in (15cm)
- Width: 1.2 in (3cm)
- Depth: 2.8 in (7 cm)
- Weight: 9 oz/257g
Electrical Power
- Battery: Four 1.5V AA batteries
SpO2
- Calibration: Functional
- Range: 0 – 100%
- Accuracy: 70 to 100% ± 2 digits; Below 70% unspecified
- First Reading (Full Accuracy): ≤ 12 seconds
- Resolution: 1%
Sensor Emitter Wavelength Ranges
- Red LED Peak Wavelength Range: 650 – 670 nm
- Infrared LED Peak Wavelength Range: 930 – 950 nm
- Average Power: ≤ 1 mW
Pulse Rate
- Range: 40 – 255 bpm
- Accuracy: 40 – 100 , ± 2 bpm; 100 to 255, ± 2%
- First Reading (Full Accuracy): ≤ 12 seconds
- Resolution: 1 bpm
Plr Pulsatile Value
- Range: 0.01 to 9.99
- Averaging Interval: 12 seconds
Alarms
- No alarms (audible or visual) for any situation, including low SpO2 and high/low pulse rate
Display
- LCD Screen: Displays SpO2, pulse rate, and PIR values; updated every second
- Pleth Bar: Seven-segment column that indicates the pulse rate and signal strength; updated continuously. During monitoring, the lowest segment is always on
- Backlight: Edge-lit yellow light-emitting diode
- Visibility without backlight: visible in normal light (fluorescent, 215 Lux) from 1.5 meters (5 feet) at 30° angle from above and 45° angle from the left, right, and below
- Visibility with backlight: visible in a dark room from 0.6 meters (2 feet) at 30° angle
