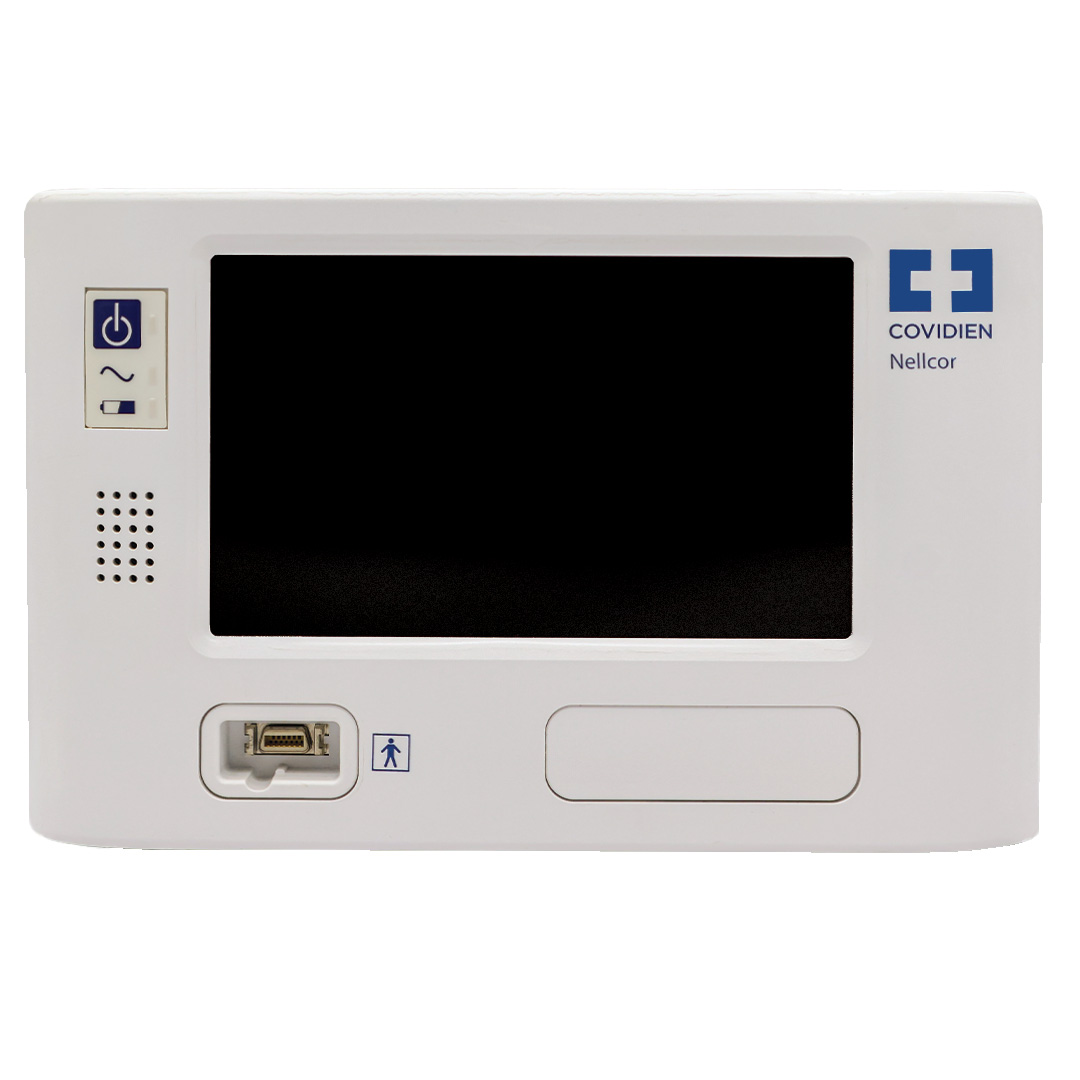

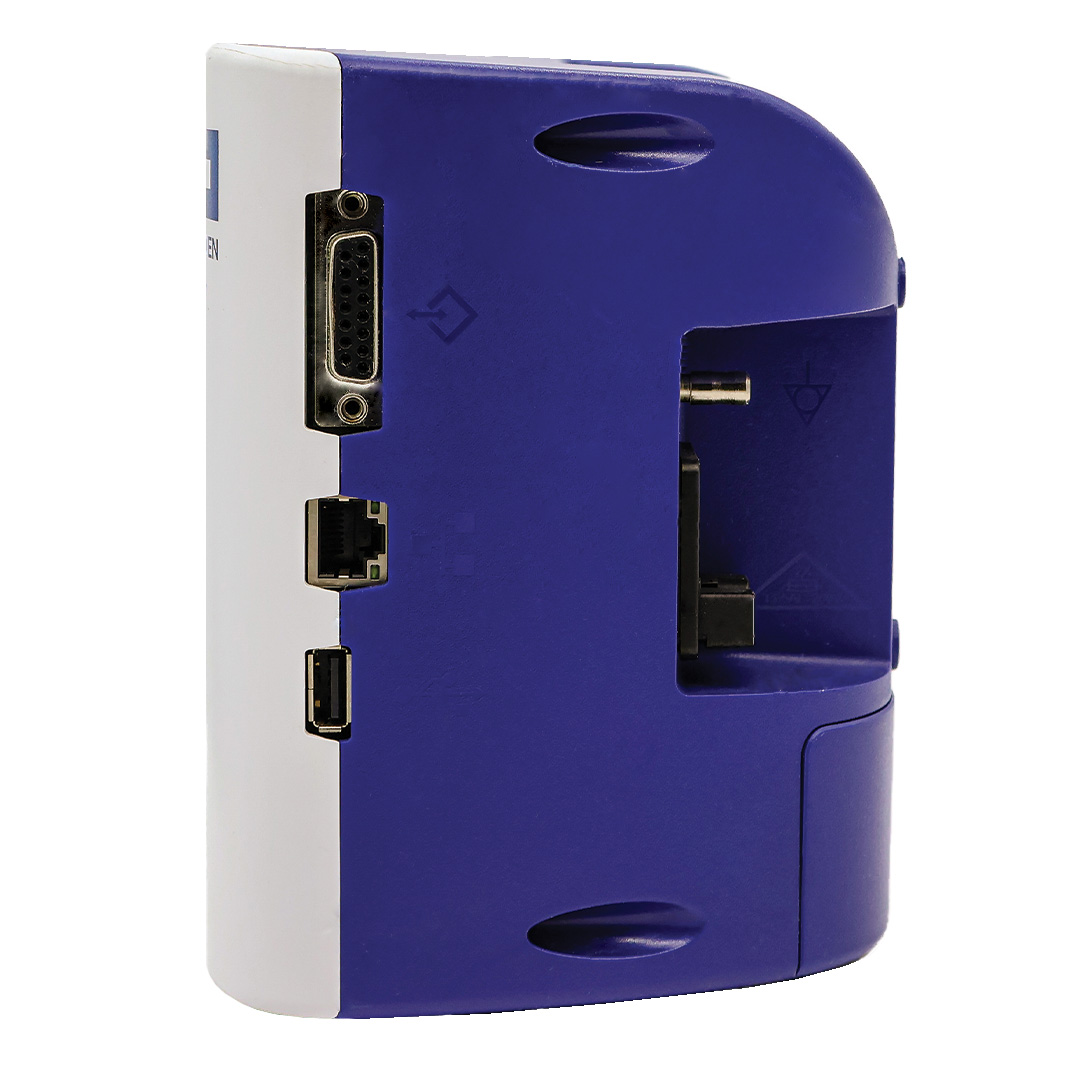

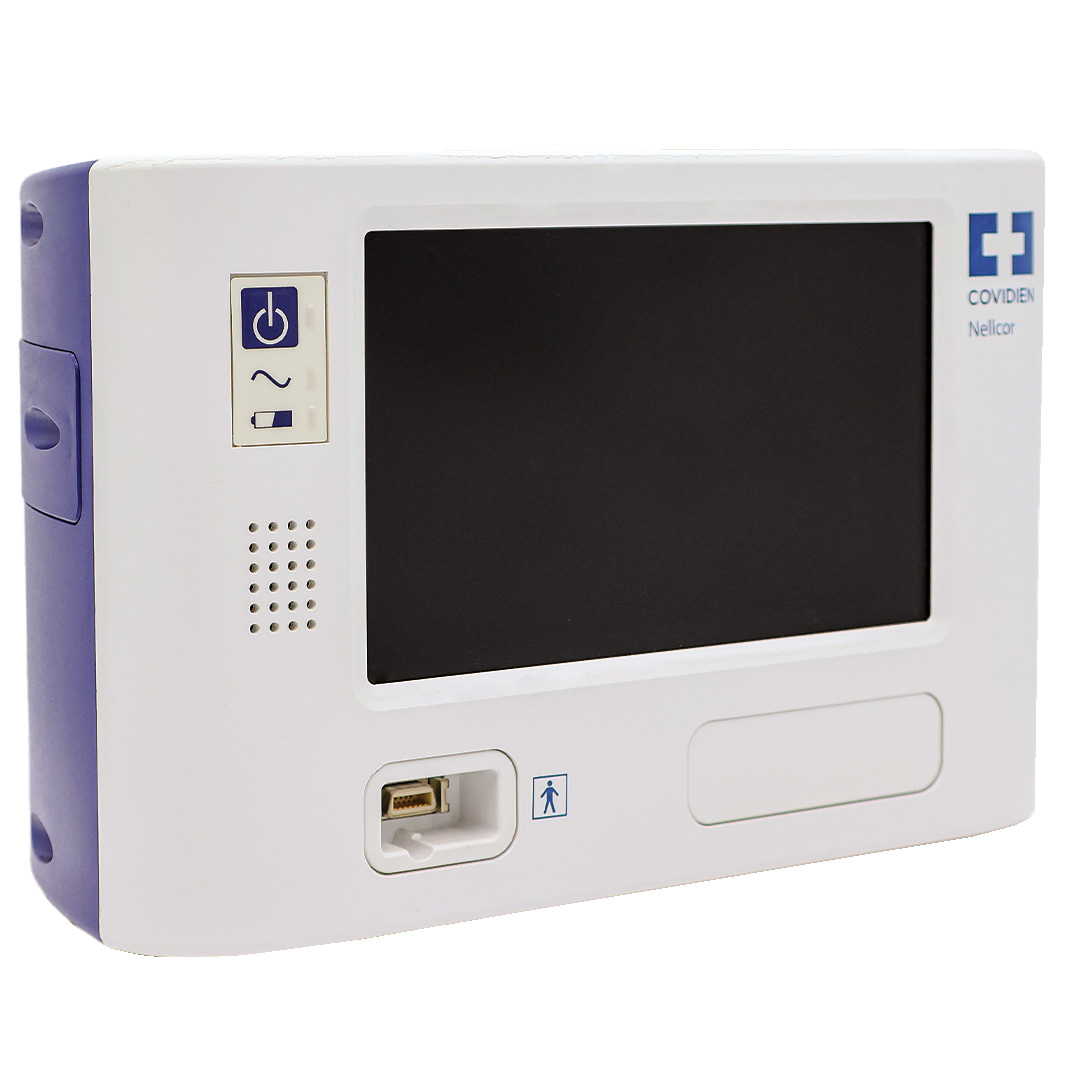

Medtronic Covidien Nellcor PM1000N

Oxímetro de Pulso

Equipo Médico Covidien - Soma Technology, Inc.Equipo Médico Medtronic - Soma Technology, Inc.Equipo Médico Nellcor - Soma Technology, Inc.

Descripción

Medtronic Covidien Nellcor PM1000N Features

The Medtronic Covidien Nellcor PM1000N is a bedside Respiratory Patient Monitoring system that offers Pulse oximetry monitoring and cardiac-based technology. The PM1000N offers continuous monitoring of SpO2 and Pulse rate in adult, pediatric and neonatal patients. The Monitoring system comes with a versatile, easy-to-use interface and color touch screen.

  • Modular software, expandable parameters, and easy upgrades.
  • State-of-the-art, lightweight and versatile design.
  • Multiple connectivity options.
  • Nellcor respiration rate technology delivers Oxygen saturation (SpO2), Pulse Rate, and respiration rate through a single finger sensor.
  • Motion-tolerant pulse oximeter.

Medtronic Covidien Nellcor PM1000N Specifications

Dimensions

  • Height: 6.5” (16.5 cm)
  • Width: 10” (25.4 cm)
  • Depth: 5” (12.7 cm)
  • Weight: 7.5 lbs (3.4 kg)

Battery

  • Type: Lithium-ion
  • Battery Capacity: 6 hours under nominal load conditions
  • Voltage: 7.2 Volts DC, 11.6 Ah, 83 Wh
  • Recharge Time: 8 hours with monitoring system turned off 12 hours with monitoring system turned on
  • Shelf Life: Four months, if monitoring system runs on new, fully-charged battery; After four months storage, units run 33% of stated battery life
  • Compliance: IEC 62133

Nursing Call Relay

  • Maximum Input Voltage: 30 VAC or VDC (polarity is not important)
  • Load Current: 120 mA continuous (peak 300 mA @ 100 ms)
  • Minimum Resistance: 26.5 ohms to 50.5 ohms (40.5 ohms typical) during alarms
  • Ground Reference: Isolated Ground
  • Electrical Isolation: 1500 Volts

Performance

  • SpO2: 1% to 100%
  • Pulse Rate: 20 to 250 beats per minute (bpm)
  • Pulse Amplitude: 0.03% to 20%

Accuracy

  • Adult – Neonate
    • Saturation: (% SpO2 ± 1 SD)
    • Adult: 70% to 100% ± 2 digits
    • Neonate: 70% to 100% ± 3 digits
    • Low perfusion: 70% to 100% ± 2 digits
    • Pulse Rate: 20 to 250 bpm ± 3 digits
    • Low Perfusion: 20 to 250 bpm ± 3 digits

Power

  • Power Requirements: 80-263 VAC, 47/63 Hz, 30 VA power
  • Fuse rating: Slow blow 1.5A 250V

Output

  • Capability to connect with the Nellcor Oxinet III central monitoring station via wired/wireless Ethernet as well as a wired serial port
  • Capability to connect to Philips Vuelink module and Nurse Call via wired serial port
  • Capability to download trend data to PC

Optional Accessories

  • GCX mounting adapter interface cable

Operating Range and Dissipation

  • Red Light Wavelength: Approximately 660 nm
  • Infrared Light Wavelength: Approximately 900 nm
  • Optical Output Power Less than 15 mW
  • Power Dissipation: 52.5 mW

Environmental

  • Operating
    • Temperature: 5 ºC to 40 ºC (41 ºF to 104 ºF)
    • Altitude: -304.8 m to 4,572 m (-1,000 ft. to 15,000 ft.)
    • Atmospheric Pressure: 105 kPa to 57.2 kPa (31.0 in. Hg to 16.89 in. Hg)
    • Relative Humidity: 15% to 95% non-condensing
  • Transport and Storage
    • Temperature: -20 ºC to 60 ºC (-4 ºF to 140 ºF)
    • Altitude: -390 m to 5,574 m (-1,254 ft. to 18,288 ft.)
    • Atmospheric Pressure: 50 kPa to 106 kPa (14.7 in. Hg to 31.3 in. Hg)
    • Relative Humidity: 15% to 95% non-condensing

Product Compliance

  • Equipment Classification: IEC/EN 80601-2-61:2011; IEC/EN 60601-1:2005; CAN/CSA C22.2 No. 60601-1:08; ANSI AAMI ES 60601-1:2005
  • Protection Type: Class I (Internally powered)
  • Degree of Protection: Type BF – applied part
  • Mode of Operation: Continuous
  • Electromagnetic Compatibility: IEC 60601-1-2:2007
  • Liquid Ingress: IPX1: Protected against harmful effects of dripping water
  • Degree of Safety: Not suitable for use in the presence of flammable anesthetics
