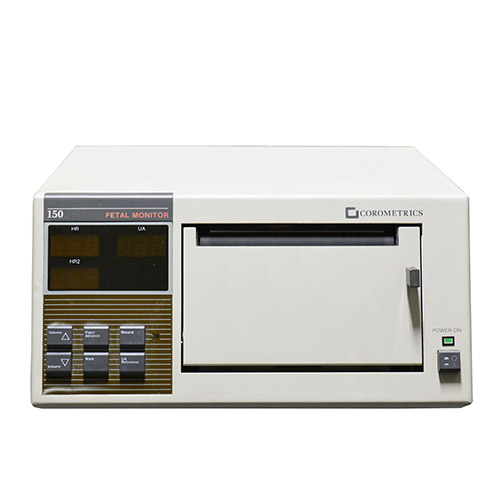

GE Corometrics 150

Monitores Fetales

Equipo Médico GE - Soma Technology, Inc.

Descripción

Características de GE Corometrics 150

The GE Corometrics 150 is a dual fetal Monitor, where it can detective heart rate for twins using pulsed Doppler technology and 9-Crystal ultrasound transducers. where heart rates of twins can overlap, the Corometirics 150 can separate each heart rate. The FHR Ultrasonic monitoring on the Ge Corometrics 150 has significantly been improved, making the easier to clearly get a consistent heart rate tracing. The Corometrics 150 offers an easy-to-load paper tray and provides high resolution thermal linear readings and patient records. The fetal monitor can be used in OB/Gyn offices, clinical settings as well as hospital settings.

  • Complete with Toco and Ultrasound Transducers
  • Dual ultrasound with offset mode
  • Fetal movement detection

Especificaciones de GE Corometrics

Dimensions

  • Height: 6.9 in (17.5 cm)
  • Width: 13.25 (33.8 cm)
  • Depth: 15.1 in (38.3 cm)
  • Weight: approximately 22 lbs (9.98 kg)

Ultrasound

  • Technique: pulsed Doppler with autocorrelation processing
  • Pulse repetition frequency: 4 kHz in a single ultrasound mode, 2 kHz in a dual ultrasound mode
  • Pulse duration: 92μs
  • Center frequency: 1.151 MHz
  • Internalty: <10mW/cm²
  • Heart rate counting range: 50-210 BPM
  • Leakage current: <10μA at 120 VAC (transducer isolated)

Uterine Activity

  • Tocotransducer range: 0-100 relative units (with UA reference set)
  • Excitation voltage: +4.0 VDC
  • Resolution: 1 relative unit. Bandwidth: DC to < 5 Hz. Zero set temperature drift: <0.1 mmHg/°C (electronics only). Leakage current: <10μA at 120 VAC (transducer isolated)

Recorder

  • Domestic heart rate scale: 7 cm chart width, 30 BPM/cm scaling, 30-240 BPM range, 1 BPM resolution
  • International heart rate scale: 8 cm chart width, 20 BPM/cm scaling, 50-210 BPM range, 1 BPM resolution
  • Uterine activity: 4 cm chart width, 25 relative units scaling, 0-100 relative units range, and 1 relative unit resolution
  • Chart drive: 1, 2, and 3 cm/min speed, ±1% accuracy

MECG

  • Line voltage: 100/120/220/240 VAC selectable
  • Line frequency: 48-62 Hz
  • Power consumption: 60 Watts



Marca

GE
