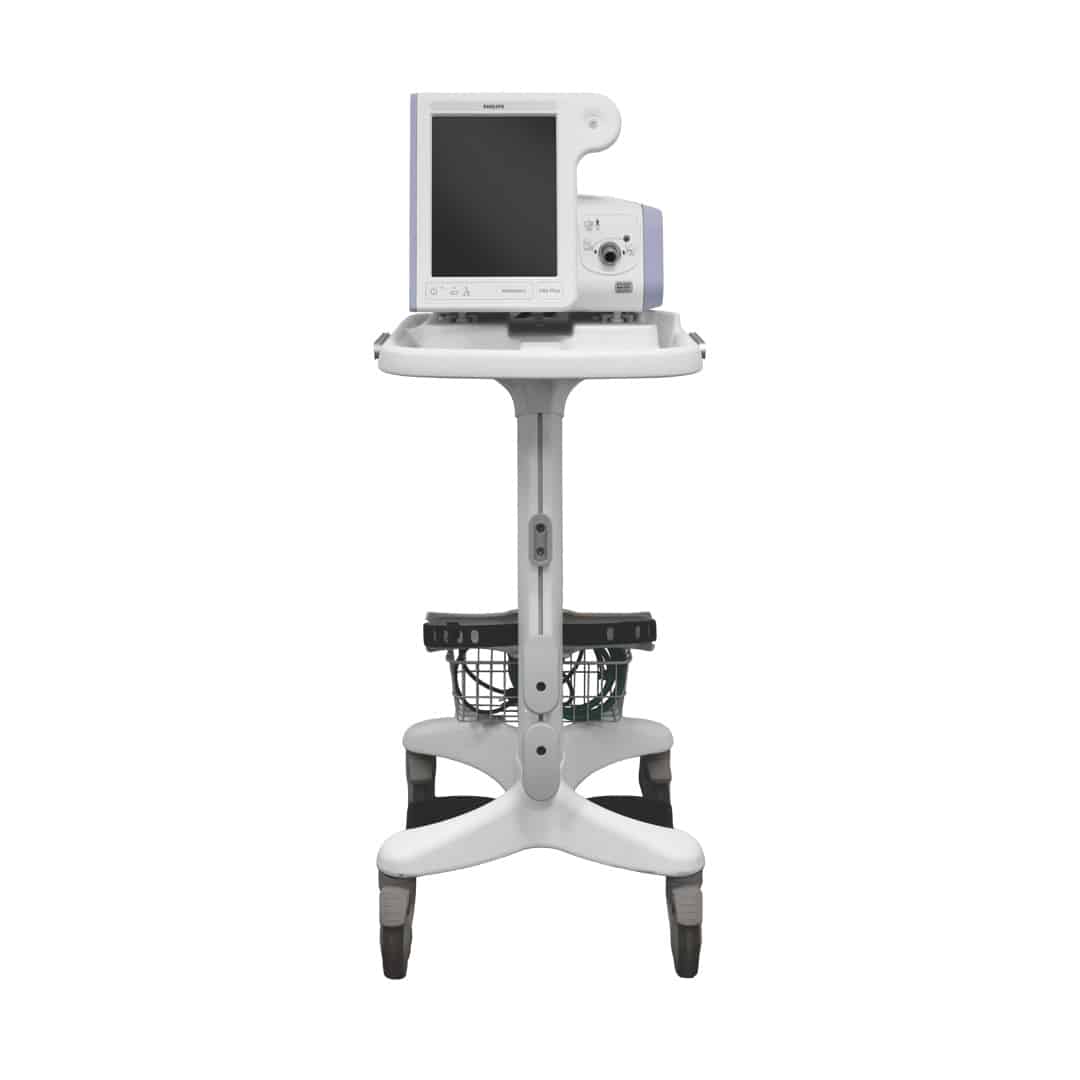

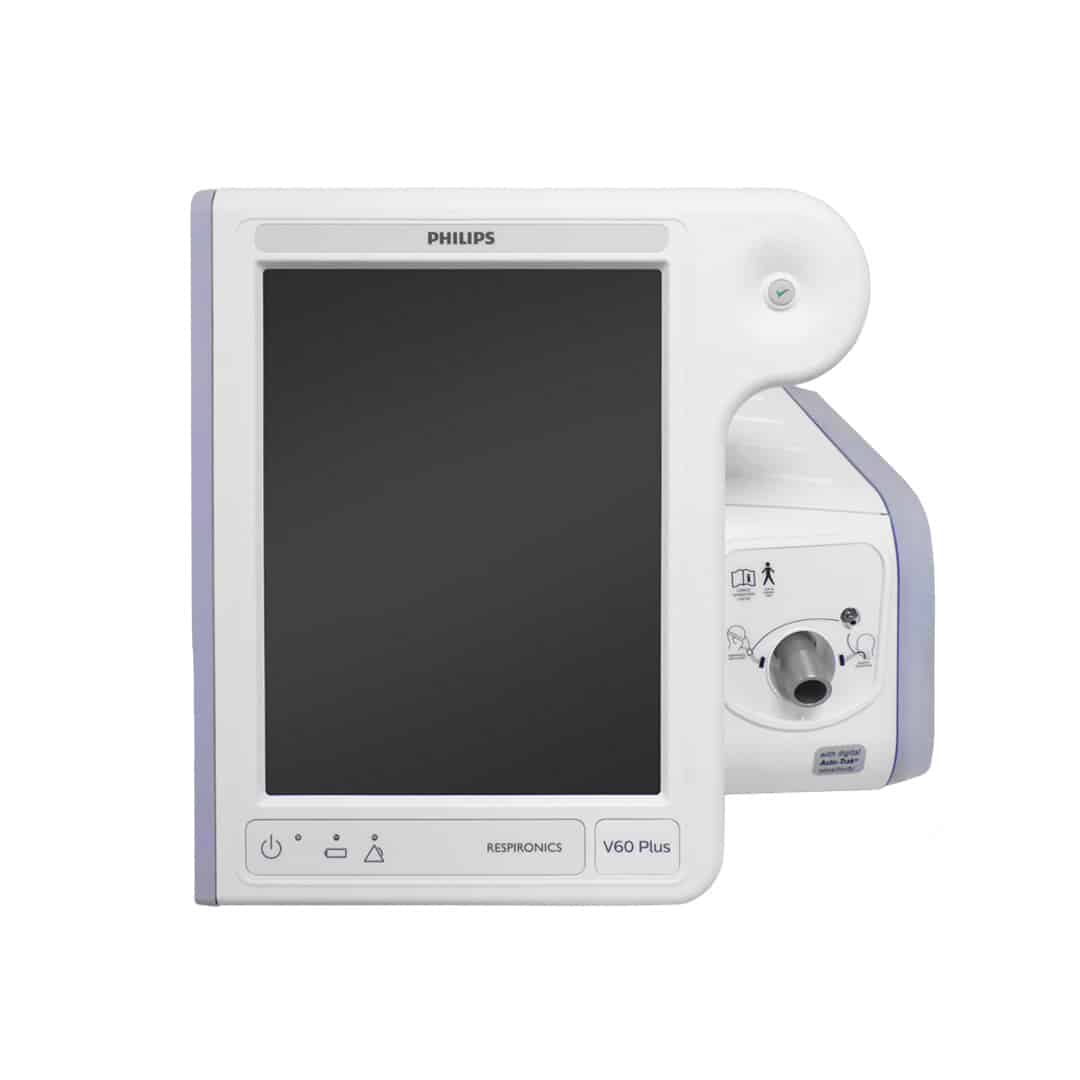

Philips Respironics V60 Plus

Philips V60 Plus Ventilator Features

The Philips Respironics V60 Plus is a Ventilator that runs on a microprocessor with bi-level, positive air ventilation that can be either non-invasive or invasive for spontaneous breathing. The V60 Plus can offer two different ventilation therapy options in one machine, Non-Invasive (NIV) and High Flow Therapy (HFT). Additionally, the V60 Plus offers AVAP to monitor the tidal volume in a pressure limited mode, PCV when a Patient has reduced lung capacity and can’t breathe fully on their own, and CPAP which can provide continuous pressure throughout the respiratory cycle.

The Philips V60 Plus can offer ventilation to both pediatrics and adult patients. The ventilator comes with the Philips auto-tracking technology allowing for adjustments to be made to the therapy needed for the patient without having to switch machines. The system comes with a touch screen display making it easy to use and view the different parameters on a large color screen. With 6-hour battery life, the V60 plus can be used as an intra-hospital transport ventilator.

• High-resolution graphics facilitating waveform interpretation.
• The internal 6-hour battery enables intra-hospital transport (actual battery time will vary depending on user settings and battery charge level). Standby mode supports patient-clinician interaction without nuisance alarms.
• Data communication capabilities support hospital connectivity.
• Respi-Link, a remote communication tool, allows efficient system diagnostics and upgrades via the internet.
• AVAPS maintains a target tidal volume in a pressure limited mode. It provides extra assurance similar to a volume-limited mode with the safety of a pressure limited mode.
• CPAP with C-Flex offers three levels of flow-based expiratory pressure relief. This option leads to improved sleep quality and patient comfort, adding greater flexibility and improved treatment acceptance.
• PCV can be used when greater control of the patient’s breathing pattern is required. Additionally, the option of ventilating a patient invasively gives the caregiver greater flexibility in the approach to treatment.
• Treatment for a wide range of clinical severities and patients from pediatric to adult.
• Flexibility for intra-hospital transport with an internal 6-hour smart battery.

Philips V60 Plus Specifications

Dimensions

• Height: 13.3 in (33.7 cm)
• Width: 15.5 in (39.4 cm)
• Depth: 16.5 in (42.9 c)
• Weight: 10.9 kg ( 24 lbs) with Battery
• Weight: 10 kg (22 lbs) without Battery

Patient Types

• Adult
• Pediatric •(Less than or equal to 20 kg)

Battery

• 14.4V, 10.0 Ah, 163 Wh
• Maximum system current draw: 11 A
• Charge Voltage: 16.9 V Maximum
• Operating Time: 360 minutes under normal conditions

Modes

• Continuous positive airway pressure (CPAP)
• Spontaneous with timed backup (S/T)
• Pressure control ventilation (PCV)
• Average volume assured pressure support (AVAPS) —optional

Settings

• C-Flex OFF, 1–3
• CPAP 4–25 cmH2O
• EPAP 4–25 cmH2O
• IPAP 4–40 cmH2O
• I-time (inspiratory time) 0.30–3.00 sec
• Max P (AVAPS maximum IPAP) 6–40 cmH2O
• Min P (AVAPS minimum IPAP) 5–30 cmH2O
• O2 (oxygen percent) 21–100%
• Ramp time OFF, 5–45 min
• Rate (respiratory rate) 4–60 BPM
• Rise (rise time) 1–5
• Triggering and cycling Auto-adaptive (Auto-Trak)
• AVAPS target tidal volume 200–2000 ml

Monitored Parameters

• Breath Phase / Trigger Indicator Spont, Timed, Exhale
• PIP 0–50 cmH2O
• Patient / Total Leak 0-200 l/min BTPS
• Patient trigger 0–100%
• Respiratory rate 0–90 BPM
• Ti/Ttot 0–91%
• Minute volume ²OPLQ%736
• Tidal volume 0–3000 ml BTPS

General

• Oxygen inlet pressure range 276–600 kPa (40–87 psig)
• Weight 10.9 kg (24lb) with optional battery; 10.0 kg (22 lb) without optional battery
• Dimensions 33.7 cm (13.3 in) height; 39.4cm (15.5 in) weight; 42.9 cm (16.5 in) depth

Electrical

• AC voltage 100–240 VAC
• AC frequency 50–60 Hz
• AC power 300 VA
• Battery operating time 6 hours in normal conditions

Environmental Specifications (Operating)

• • Temperature: 41 to 104 ºF (5 to 40 ºC)

Relative Humidity: 15 to 95% (noncondensing) Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)

Environmental Specifications (Storage)

• • Temperature: -4 to 122 ºF (-20 to 50 ºC)

Relative Humidity: 10 to 95% relative (noncondensing) Barometric Pressure: 600 to 765 mmHg (approximately -61 to 1951 m (-200 to 6400 ft) relative to sea level)

High-pressure Oxygen Supply

• • Connector: DISS male, DISS female, NIST
  • Pressure: 2.76 to 6.00 bar / 276 to 600 kPa / 40 to 87 psig
  • Flow: 175 SLPM

• Connector: SIS
• Pressure: 3.31 to 6.00 bar / 331 to 600 kPa / 48 to 87 psig
• Flow: 175 SLPM

High-pressure Oxygen Supply (Using V60 manifold)

• • Connector: DISS male, DISS female, NIST
  • Pressure: 3.10 to 6.00 bar / 310 to 600 kPa / 45 to 87 psig
  • Flow: 175 SLPM

• Connector: SIS
• Pressure: 3.66 to 6.00 bar / 366 to 600 kPa / 53 to 87 psig
• Flow: 175 SLPM

Inspiratory Outlet (To patient port)

• Connector: ISO 15 mm female/22 mm male conical

Air Supply

• Integrated blower

Flows and Pressures

• Flow Delivery: 150 L/min at 40 cmH2O at 1951 m (6400 ft) altitude (10% degradation in flow at 2286 m (7500 ft))
• Flow Range: -240 to 240 L/min BTPS
• Pressure Range: 4 to 40 cmH2O
• Dynamic pressure regulation: ± (2 cmH2O + 4% of target)
