Philips HeartStart Onsite Features

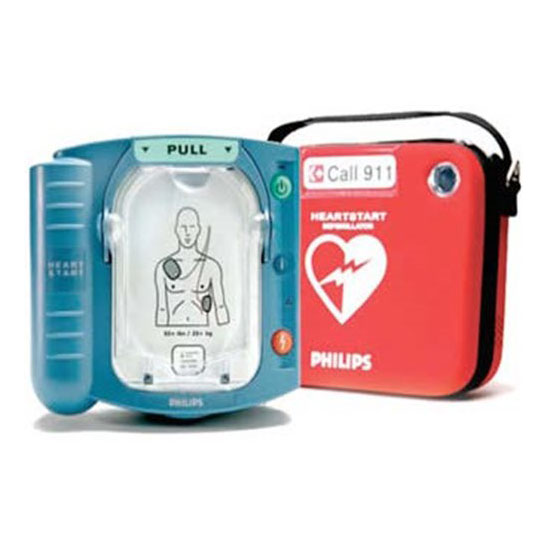

The Philips Heartstart Onsite is a ready-to-rescue AED. The Philips HeartStart OnSite is a lightweight Automatic External Defibrillator that is easy for anyone to use. The Defibrillator comes in a carrying case, preloaded with a battery and electrode pads. The system offers calming voice instructions to guide you through the process, from placing the pads on the patient to delivering a shock and performing PRC. The Philips AED comes standard with the Philips Smart Biphasic therapy that can control the current of energy used on patients for maximum effectiveness while minimizing the side effects to the patient’s fragile heart. The Philips Heartstart Onsite comes with both adult and pediatric electrode pads, along with the option for a training pad cartridge. The AED can deliver up to 150 joules of energy for adult patients.
- Lightweight: Fully equipped at just 3.3 pounds.
- Intuitive: Clean design and clear voice instructions instill the confidence that’s needed when administering therapy to a person in cardiac arrest.
- Every-Ready: Powered by a long life (4-year) disposable battery. Automated tests help ensure readiness.
- Versatile: Available for use on anyone of any age, including children and infants.
- Effective: Patented SMART Analysis heart rhythm assessment and SMART Biphasic defibrillation therapy, clinically proven in nearly 10 years of use. No other biphasic waveform is as well documented.
Philips HeartStart Onsite Specifications
Dimensions
- Height: 2.8 inches (7 cm)
- Width: 8.3 inches (21 cm)
- Depth: 7.4 inches (19 cm)
- Weight: With battery and pads case: 3.3 lbs (1.5 kg) Without battery or pads case: 2.4 lbs (1 kg)
Defibrillator
- Defibrillator Family: HS1
- How Supplied: Defibrillator, Owner’s Manual, battery,1 adult SMART Pads Cartridge, Quick Reference Guide, Quick Start poster, and your choice of the carry case.
- Waveform: Truncated Exponential Biphasic.Waveform parameters adjusted as a function of each patient’s impedance.
- Energy: Single energy output. Adult: nominal 150 Joules into a 50-ohm load.Infant/Child: nominal 50 Joules into a 50-ohm load. Automatically set based on the type of SMART Pads cartridge installed.
- Shock-to-Shock Cycle Time Typically less than 20 seconds between shocks in a series.
- Quick Shock: Able to deliver a shock after the CPR pause, typically in 8 seconds.
- Voice Instructions: Detailed voice messages guide the responder through the use of the defibrillator.
- CPR Coaching: Instructions for adult and infant/child CPR are available at the user’s option.
- Shock Delivery Via adhesive pads placed on patient’s bare skin as illustrated on pads.
- Controls: Green SMART Pads Cartridge handle, green on/off button, blue i-button, orange shock button.
- Indicators: Ready light;blue i-button;caution light.
Environmental / Physical Specifications
- Sealing: Solid objects per EN60529 class IP2X. Drip-proof per EN60529 class IPX1.
- Temperature Operating:32º – 122º F (0º- 50º C)
- Standby:50º – 109º F (10º- 43º C)
- Humidity Operating:0% to 95% relative,non-condensing
- Standby:0% to 75% relative,non-condensing
- Altitude Operating:0 to 15,000 feet
- Standby:0 to 8,500 feet > 48 hours and 8,500 to 15,000 feet < 48 hours
- Shock/Drop: Abuse Withstands 1 meter drop to any edge, corner or surface.
- Vibration: Meets EN1789 random and swept sine, road ambulance the specification in operating and standby states.
- EMI (Radiated/Immunity) Meets EN55011 Group 1 Level B Class B and
- EN61000-4-3.
Battery (M5070A)
- Type: 9 Volt DC,4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells.
- Capacity: Minimum 200 shocks or 4 hours of operating time.
- Install-By Date: Battery is labeled with an install-by date of at least five years from the date of manufacture.
- Standby Life Four years is typical when the battery is installed by the install-by date. (Will power the AED in standby state within the specified standby temperature range, assuming one battery insertion test and no defibrillation uses.)
SMART Pads
- Adult SMARTPads Cartridge: M5071A defibrillation pads for patients 8 years of age and older or 55 lbs.(25 kg) and over.
- Infant/Child SMART Pads Cartridge: M5072A defibrillation pads for patients under 8 years of age or 55 lbs. (25 kg).Rx only.
- Energy Delivered Adult: nominal 150 Joules into a 50-ohm load. Infant/Child: nominal 50 Joules into a 50-ohm load.
- How Supplied: Disposable cartridge, containing adhesive defibrillation pads, clicks into defibrillator for an integrated pads solution.
- Active Surface Area 13.2 in2 (85 cm2) each
- Cable Length: Adult pads:54 in (137.1 cm)Infant/Child pads:40 in(101.6 cm)
- Use-By Date: Cartridge is labeled with a use-by date of at least two years from the date of manufacture.
