GE Datex Ohmeda Aestiva 5 Compact

Cotizaciones en menos de 24 horas

GE Datex Ohmeda Aestiva 5 Compact Features

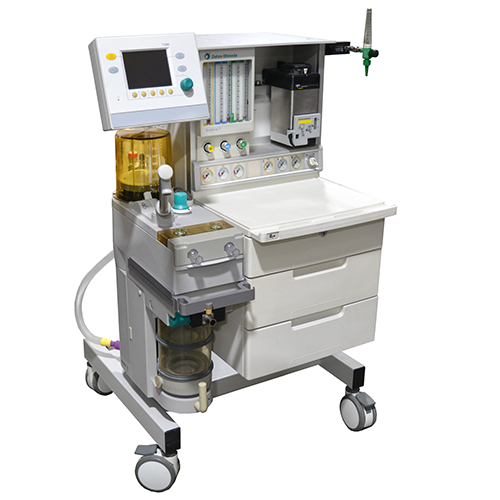

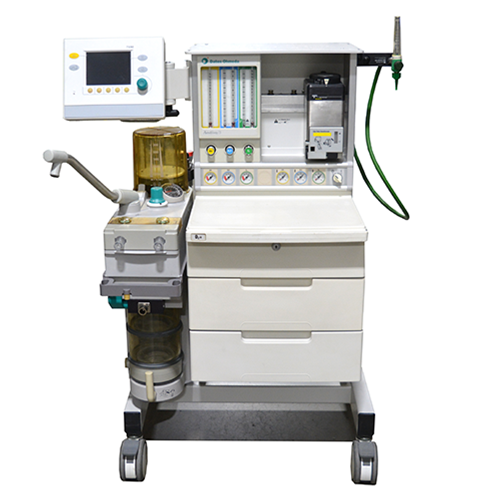

The GE Datex Ohmeda Aestiva 5 Compact is an anesthesia machine part of the Aestiva 5 Family. The Aestiva 5 Compact is slightly different, offering only two vaporizer slots on the anesthesia machine. Like the base model, The Compact version comes with two options for ventilators, the 7100 and the 7900 SmartVents. The anesthesia machine offers electronic PEEP, integrated volume and Oxygen monitoring, pressure mode, tidal volume compression, and pressure waveform monitoring.

  • Supports physical integration of Datex-Ohmeda monitoring solutions
  • The bag/vent switch turns mechanical ventilation on/off without additional controls
  • Configured for two vaporizers
  • Optional fresh gas flow compensation
  • Minimum O2 flow of 50 mL
  • Dual airflow tube for low-flow resolution
  • Smart alarms direct users to specific problems and affected parameters to help enhance patient safety
  • Smaller footprint and lower overall height
  • Available in a wall-rail mount configuration, for use where space is limited
  • The end case quickly establishes ventilator standby
  • Direct function controls for most commonly used parameters
  • 120 x 90 LCD screen provides clear viewing of ventilator data
  • Intuitive design helps promote ease of use
  • Airway pressure monitoring and pressure bar graphs for visual reference on a breath-by-breath basis are standard

GE Datex Ohmeda Aestiva 5 Compact Specifications


  • Height: 130.3 cm/51.3 in
  • Width: 75 cm/29.5 in
  • Depth: 83 cm/32.7 in
  • Weight: Approximately 106.6 kg/235 lb (machine configured with one drawer and no vaporizers)

Ventilation Operating Modes

  • Volume Control
    • With tidal volume compensation (standard in the US)
  • Pressure mode (optional)

Anesthetic Agent Delivery

  • Vaporizers: Tec 4, Tec 5, Tec 6 Plus, Tec 7
  • Number of positions: 2
  • Mounting: Tool-free installation Selectatec® manifold interlocks and isolates vaporizers

Electrical Specifications

  • Current Leakage
    • 120V: < 300μA
  • Power and battery back-up
    • Power input: 120 Vac, 60 Hz
  • Backup
    • Power: Demonstrated battery time (under typical operating conditions) is 90+ minutes when fully charged
    • Battery type: Internal rechargeable sealed lead acid
    • Power cord: Length: 5 m/16.4 ft | Rating: 15A @ 120 Vac
