Vyaire Nonin 7500

Oxímetro de Pulso

Equipo Médico Vyaire - Soma Technology, Inc.

Descripción

Vyaire Nonin 7500 Series Features

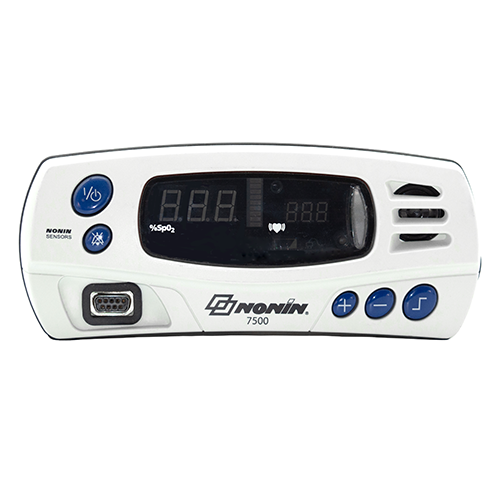

The Vyaire Nonin 7500 is a portable pulse oximeter. The compact, lightweight design of the system makes it ideal for spot-checking, continuous monitoring, and during patient transport. The Nonin 7500 can be used to monitor patients ranging from neonates to adults. The claire pulse oximeter has a 16-hour battery life and can hold up to 70 hours of memory. The bright LED display makes it easy to read a wide range of display indicators on the screen. The pulse Oximeter comes with an alarm system that comes with default settings along with the ability to customize the settings per patient.



  • Can be used on a variety of patients; neonates, pediatrics, and adults
  • Bright LED display screen makes it easy and clear to read
  • 70 hours of memory available
  • An innovative alarm system that can be customized
  • Can be used as a stand-alone device or it can be combined with other equipment







Vyaire Nonin 7500 Specifications

Dimensions

  • Height: 3.6 In (9.2 cm)
  • Width: 8.6 In (21.9 cm)
  • Depth: 5.6 In (14.2 cm)
  • Weight: 2 lbs (0.9 kg)

Oxygen Saturation Display Range

  • 0–100% SpO2

Pulse Rate Range

  • 18–321 BPM

Saturation Accuracy

  • 70–100%
  • Adults / Pediatrics
    • No Motion:
      • Reusable Finger Clip: ± 2 digits
      • Disposable 6000 Series: ± 2 digits
    • Motion:
      • Reusable Finger Clip: ± 2 digits
  • Neonates
    • No Motion:
      • Reusable Finger Clip: ± 3 digits
      • Disposable 6000 Series: ± 3 digits

Pulse Rate Accuracy

  • No Motion: 18–300 BPM
  • Motion: 40–240 BPM
  • Low Perfusion: 40–240 BPM
  • Adults / Pediatrics
    • No Motion:
      • Reusable Finger Clip: ± 3 digits
      • Disposable 6000 Series: ± 3 digits
    • Motion:
      • Reusable Finger Clip: ± 5 digits
    • Low Perfusion:
      • Reusable Finger Clip: ± 3 digits
      • Disposable 6000 Series: ± 3 digits
  • Neonates
    • No Motion:
      • Reusable Finger Clip: ± 3 digits
      • Disposable 6000 Series: ± 3 digits
    • Motion:
      • Reusable Finger Clip: ± 5 digits
    • Low Perfusion:
      • Reusable Finger Clip: ± 3 digits
      • Disposable 6000 Series: ± 3 digits

Memory

  • 70 hours (assuming continuous operation)

Internal Power

  • Battery: 7.2 volt NiMH battery pack
  • Operating Life (fully charged battery): 16 hours minimum
  • Storage Life: 21 days minimum
  • Recharge Rate: 4 hours maximum

Analog Outputs

  • SpO2 Output Range: 0-1 VDC (0–100% SpO2), 1.27 VDC (out of track)
  • Pulse Rate Output Range: 0-1 VDC (0–300 BPM), 1.27 VDC (out of track)
  • Event Marker: 0 V (no event), 1 V (event occurred)
  • Accuracy: ± 2% (SpO2), ± 5% (Pulse Rate)
  • Load Current: 2 mA maximum
