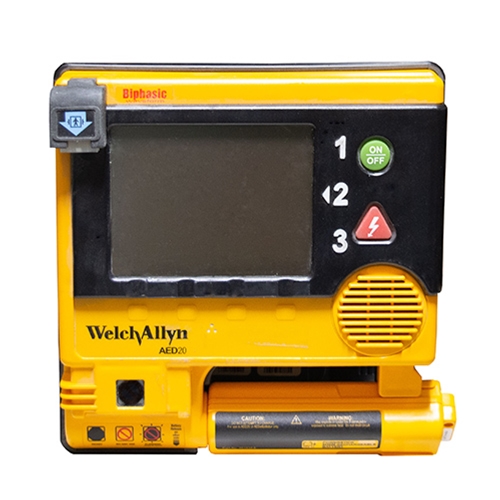

Welch Allyn AED 20 Features
Designed for everyone from basic rescuers to well-trained advanced life support personnel, the Welch Allyn AED 20 is a versatile device perfect for virtually any setting. The device is simple enough for minimally trained personnel to use in an office setting and even has advanced options that make it ideal for use by advanced life support personnel.
Welch Allyn AED 20 Specifications
Dimensions
- Height: 3.3 in (8.4cm)
- Width: 8.9in (22.6 cm)
- Length: 9.4in (23.9cm)
- Weight: less than 5.4lbs (2.45kg) without battery
Physical Specifications
- Humidity: Up to 95% (non-condensing)
- Altitude: -500 to 15,000 feet (-150 to 4570 m)
- Shock: Mil-Std 810E method 516.4, procedure 1 (40G, 6-9 ms pulse, 1/2 sine each axis)
- Vibration: Mil-Std 810E method 514.4, category 10 (minimum integrity test for helicopters)
- Water resistance: IEC 60529 IPX4
- In-flight use: Complies with RTCA/DO-160E, Section 21, Category M limits for radio frequency interference
Data Managment
- Event documentation: Internal and via Welch Allyn Datacard
- Internal memory capacity: 1MB: 75 4-sec ECG samples or 500 time-stamped events
- Datacard capacity:
- 4MB – 90 min of Continuous ECG
- 40 min of ECG and audio
- 8MB – 3 hrs of Continuous ECG
- 80 min of ECG and audio
- 16MB – 6 hrs of Continuous ECG
- 2.5 hrs of ECG and audio
- 4MB – 90 min of Continuous ECG
- Playback: Welch Allyn PIC or Smartview
- Quick report: Treatment Summary, Event Log, Test Log
- Datacard compatibility: Compatible with Welch Allyn PIC Advance Life Support Defibrillator
- Communication: Serial port via RS-232 to PC and printer
Display
- Type: 1/4 VGA Monochrome LCD
- Size: 5.7” (145 mm) diagonal
- Resolution: 320 x 240
- Freq response: 0.5 – 40 Hz
- Heart rate: 20 – 300 bpm, user-configurable
- ECG input: Via defib pads, isolated, type BF, defibrillator-proof
- ECG sweep speed: 25 mm/sec
- Low battery indicator: Battery Icon gauge on display with 10 capacity levels
- Backlight (optional): EL backlight
