3M Bair Hugger Ranger Model 245
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
3M Bair Hugger Ranger Model 245 Features

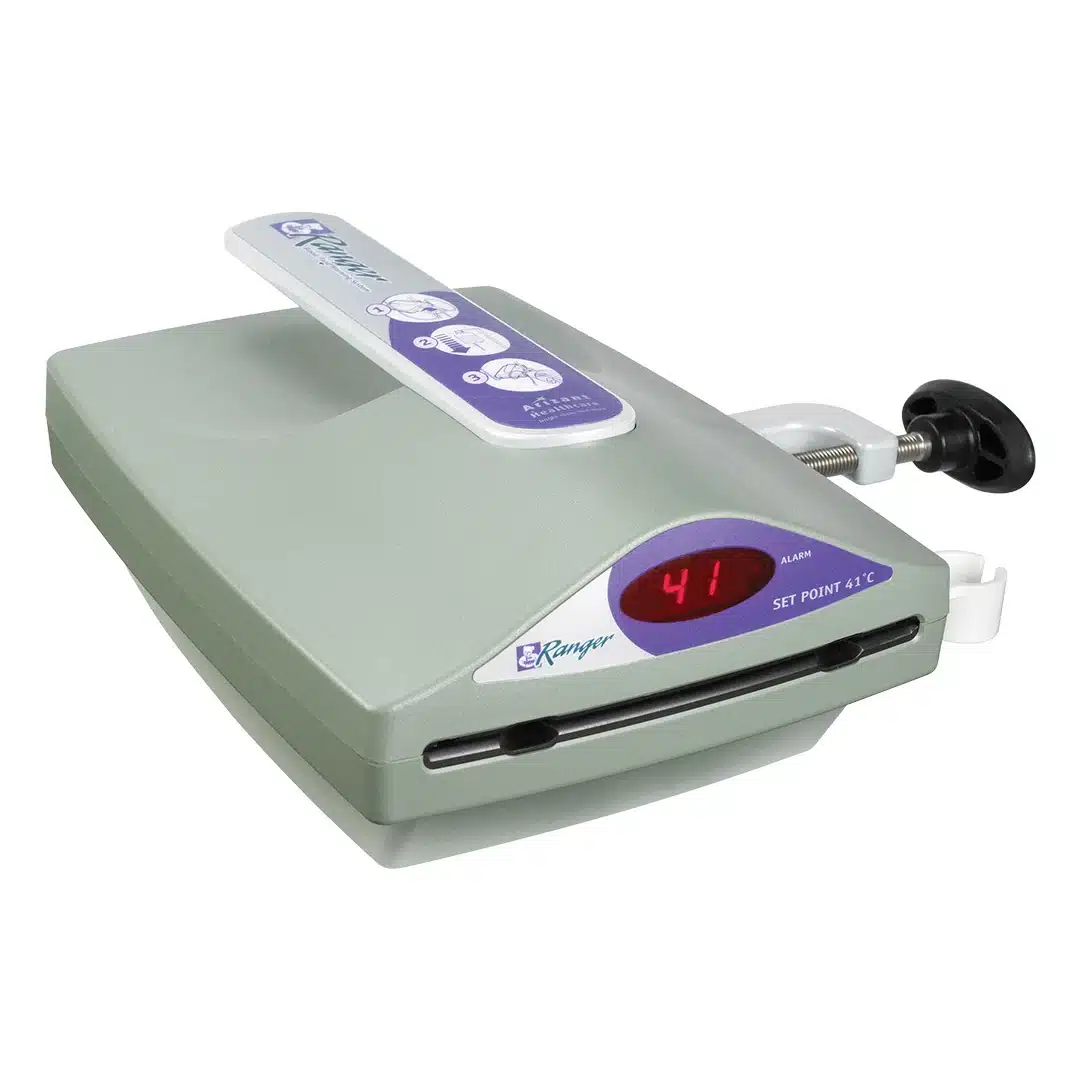

The 3M Bair Hugger Ranger Model 245 blood and fluid warming system is designed to warm blood, blood products, and liquids and deliver these at a flow rate from KVO to 500mL/min. At these flow rates, the device maintains fluid output temperatures ranging from 33°C to 41°C. The 3M Bair Hugger Ranger is designed to be mounted on an an I.V. pole and has a handle on top for easy transport. It’s lightweight, compact, and liquid-resistant.
- Display that indicates heater temperature.
- Alert indicator light for over and under-temperature alerts.
- Convenient top carrying handle.
- Compact and lightweight.
3M Bair Hugger Ranger Model 245 Specifications
Dimensions
- Height: 4.5” (11 cm)
- Width: 7.5” (19 cm)
- Depth: 10” (25 cm)
- Weight: 7 lbs 7 oz. (3.4 kg)
Temperature
- Set Point Temperature: 41° ± 1° C
- Over Temperature Alert: 43° +3/-2° C
- Under Temperature Alert: 33° ± 2° C
- Over Temperature Cutoff: 44° ± 2° C (warming units Rev N and newer) 46° ± 2° C (warming units Rev A to M)
Ranger Blood/Fluid Warming Sets
- Standard Flow Set
- Flow Rate: 150 mL/min
- Priming Volume: 39-44 mL
- Patient Line Length: 76 cm 152 cm (76 cm patient line plus 76 cm extension)
- High Flow Set
- Flow Rate: 100-500 mL/min
- Priming Volume: 65-150 mL
- Patient Line Length: 152 cm (76 cm patient line plus 76 cm extension)
- Pediatric/Neonate
- Flow Rate: 100 mL/min
- Priming Volume: 20 mL
- Patient Line Length: 46 cm
Operating and Storage Conditions
- Operating Temperature Range: 15° to 40°C (59° to 104°F)
- Storage and Transport Temperature Range: -20° to 45°C (-4° to 113°F)
- Operating Humidity: 10 to 85% RH, non-condensing
- Atmospheric Pressure Range: 50 kPa to 106 kPa
