Masimo Rad 97

Quotes in less than 24 hours Download Specifications

Masimo Rad 97 Pulse Oximeter Features

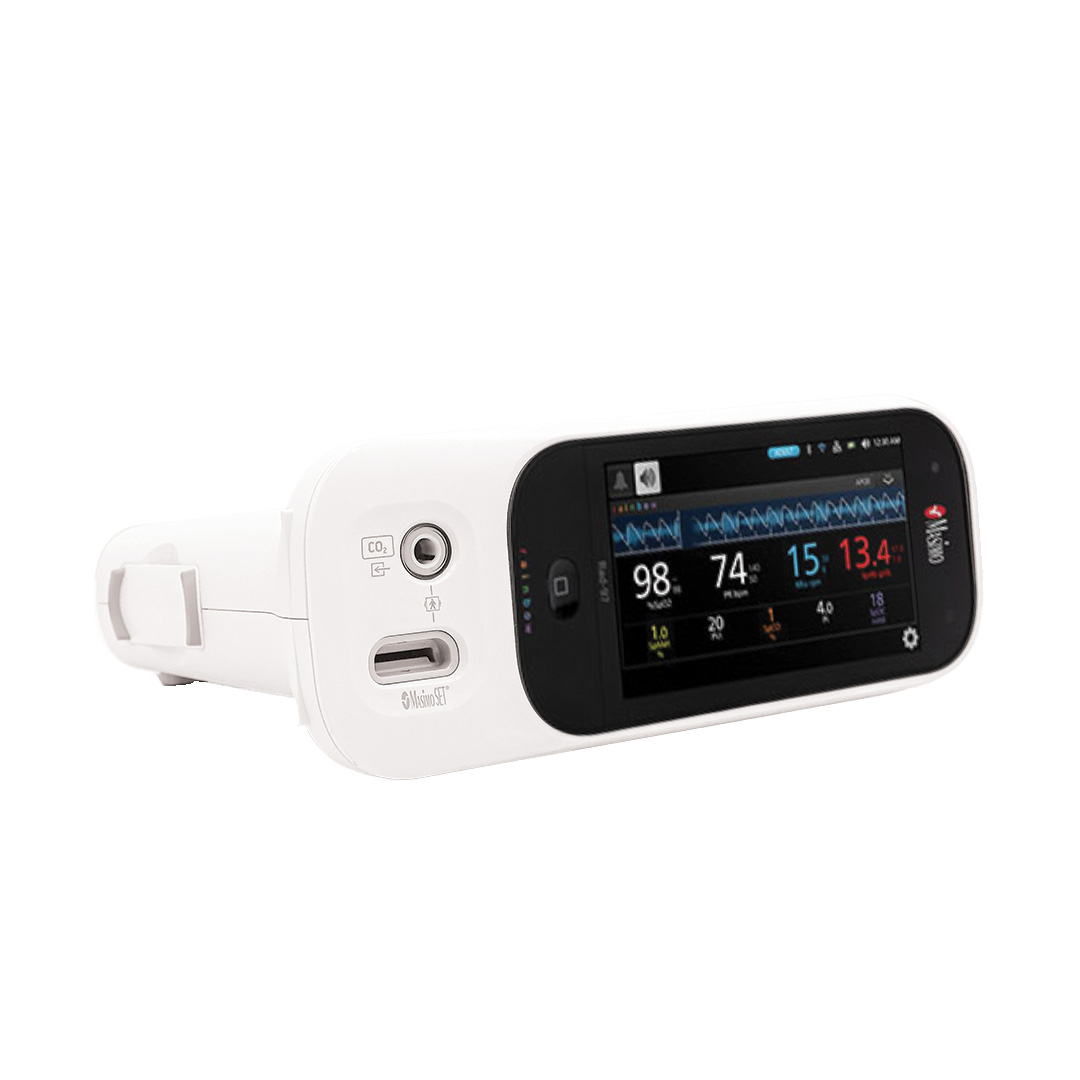

The Masimo Rad 97 is a non-invasive Pulse CO-Oximeter. The Rad-97 offers continuous SpO2, etCo2, blood pressure, and respiration rate measurements. The system is a small, compact, portable device that can be used as a stand-alone bedside monitor. The Masimo system comes with three different measurement modes for blood pressure measurements; spot-check, automatic interval, and stat interval. The Pulse oximeter can be used on adults, pediatrics, and neonatal patients. The Masimo Rad system offers built-in Wi-Fi capabilities that can connect to the Masimo Patient SafetyNet or Iris Gateway in your facility to update and transfer the patient’s data for future reference. The Rad 97 Pulse Oximeter additionally offers a bright high-resolution, color display with touchscreen capabilities. This makes it easy to customize the display for quick assessments and expand pertinent data for real-time analysis.

  • Bright High Resolution, LCD color display
  • The ambient light sensor automatically adjusts the screen brightness
  • Profile icon changes and the home button illuminates in corresponding colors to provide visual indicators of the current Profile setting
  • Light indicator for alarms and system messages
  • Rechargeable Li-ion battery with approximately four hours of power
  • Trend 96 hours of parametric data to analyze patient status over time
  • Audible and visual alarms for quick identification of alarming parameter

Masimo Rad 97 Specifications


  • Size: 9 in x 6.5 in x 4in (22.9 cm x 16.5 cm x 10.2 cm)
  • Weight: 3 lb (1.36 kg)

Measurement Range

  • Spo2 (Functional Oxygen Saturation): 05 to 100%
  • PR (Pulse Rate): o bpm to 240 bpm
  • Pi (Perfusion Index): 0.00 to 0.99
  • PVi (Pleth Variability Index): 0 to 100
  • RRa (Respiration Rate): 0 rpm to 70 rmp
  • SpHb (Hemoglobin):
    • 0.0 g/dl to 25.0 g/dl
    • 0 g/L tp 250 g/L
    • 0.0 mol/L to 15.5 mol/L
  • SpCO (Carboxyhemoglobin): 0% to 99%
  • SpMet (Methemoglobin): 0.00% to 99.0%
  • SpOC (Oxygen Content): 0 ml/dl to 35 ml/dl
  • ORi (Oxygen Reserve index): 0.00 to 0.99
  • RRp (respiration Rte): 0 rpm to 70 rpm


  • Spo2: 1%
  • SpCo: 1%
  • SpMet: 0.1%
  • SpHb: 0.1 g/dL
  • SpOC: 1.0 ml/dL
  • Pulse Rate: 1 beat per minute
  • Respiration Rate: 1 beat per minute


  • AC Power requirements: 100 to 240 VAC, 47 to 63 Hz
  • Power Consumption: 60 VA
  • Fuses: UL, Metric (5x20mm), rated min. 250 VAC, 1 Amp, Time Delay, min. 1500A breaking capacity


  • Type: lithium-ion
  • Capacity: 7 hours (7)
  • Charging time: 3 hours


  • Operation temperature: 0°C to 35°C (32°F to 95°F)
  • Storage/ Transport Temperature: -20°C to 60°C [8] (-4°F to 140°F)
  • Operating Humidity:10% to 95%, non-condensing
  • Storage / Transport Humidity: 10% to 90%, non-condensing
  • Operating Atmospheric Pressure: 540 mbar to 1,060 mbar (540 hPa to 1060 hPa)
  • Operating altitude: 5000 m to -382 m (16,404 ft to -1253 ft)

Output Interface

  • Output: USB 2.0, type-A Connector, Nurse Call Connector

Refurbished Masimo Rad 97 Pulse Oximeter

Soma Tech Intl offers Refurbished Rad 97’s up to 50% below OEM prices with the same service and warranty as new. The Masimo Rad 97 pulse oximeter is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the Masimo pulse oximeter, it’s carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on the Rad 97. If necessary, parts are replaced to make sure that all aspects of the pulse oximeter are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Masimo Rad pulse oximeter is working like new it undergoes a special cosmetic restoration process. The Masimo pulse oximeter is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the pulse oximeter functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the pulse oximeter is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Masimo Rad-97 pulse oximeter contact soma at [email protected] or call us at 1-800-438-7662.

Soma Tech Intl is also actively looking to purchase a Masimo Rad-97 pulse oxiemter’s. If you or your facility is looking to sell your Masimo pulse oximeter, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Masimo Pulse Oximeter to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our Pulse Oximeters?

Soma Tech Intl offers a wide range of pulse oximeters. If you have any questions about any of our pulse oximeters or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your pulse oximeters? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
