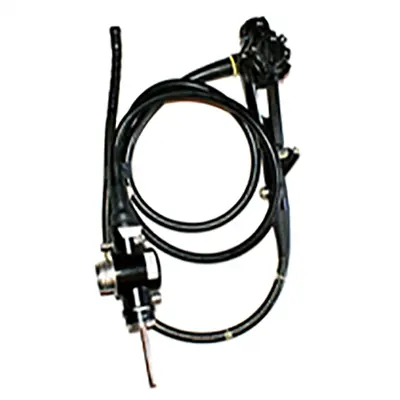

Olympus CF-100S
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Olympus CF-100S Features
The Olympus CF-100S has been designed for endoscopic diagnosis and treatment within the lower digestive tract (rectum and sigmoid). The CF TYPE 100S Sigmoidoscope is a precision instrument. Its design incorporates many features to ensure patient safety. In particular, the angulation system is constructed to provide a smooth response and maximal angulation of the distal end.
- A relatively thin insertion tube, extensive angulation capability, and a wide-angle lens system facilitate insertion, orientation, and observation in the stomach.
- 3.2 mm working channel for maximum versatility and performance.
- Push-button remote switches on the control section give the physician or technician finger-tip control of documentation equipment.
- Complete immersion allows total cleaning and disinfection provided that the electrical plug is attached with a water-resistant cap.
Olympus CF-100S Specifications
Optical System
- Field of View: 140°
- Direction of View: 0° (Forward Viewing)
- Depth of Field: 5 – 100mm
Distal End
- Outer Diameter: 15.4 mm
Bending Section
- Range of Distal End Bending
- Up: 180°
- Down: 180°
- Right: 160°
- Left: 160°
- Maximum Deflection: 230°
Insertion Tube
- Outer Diameter: 13.3mm
Length
- Working Length: 620mm
- Total Length: 920mm
Instrument Channel
- Inner Diameter: 3.2mm
Biopsy Forceps
- Minimum Visible Distance: 4mm from distal end
Remote Switch
- Switch 1: Release / Freeze
- Switch 2: Iris / Print
- Switch 3: Fast Shut / VTR
- Switch 4: Release / Freeze
Operating Environment
- Ambient Temperature: 10-40? (50-104°F)
- Relative Humidity: 30-85%
- Atmospheric Pressure: 700-1,060 mbars
