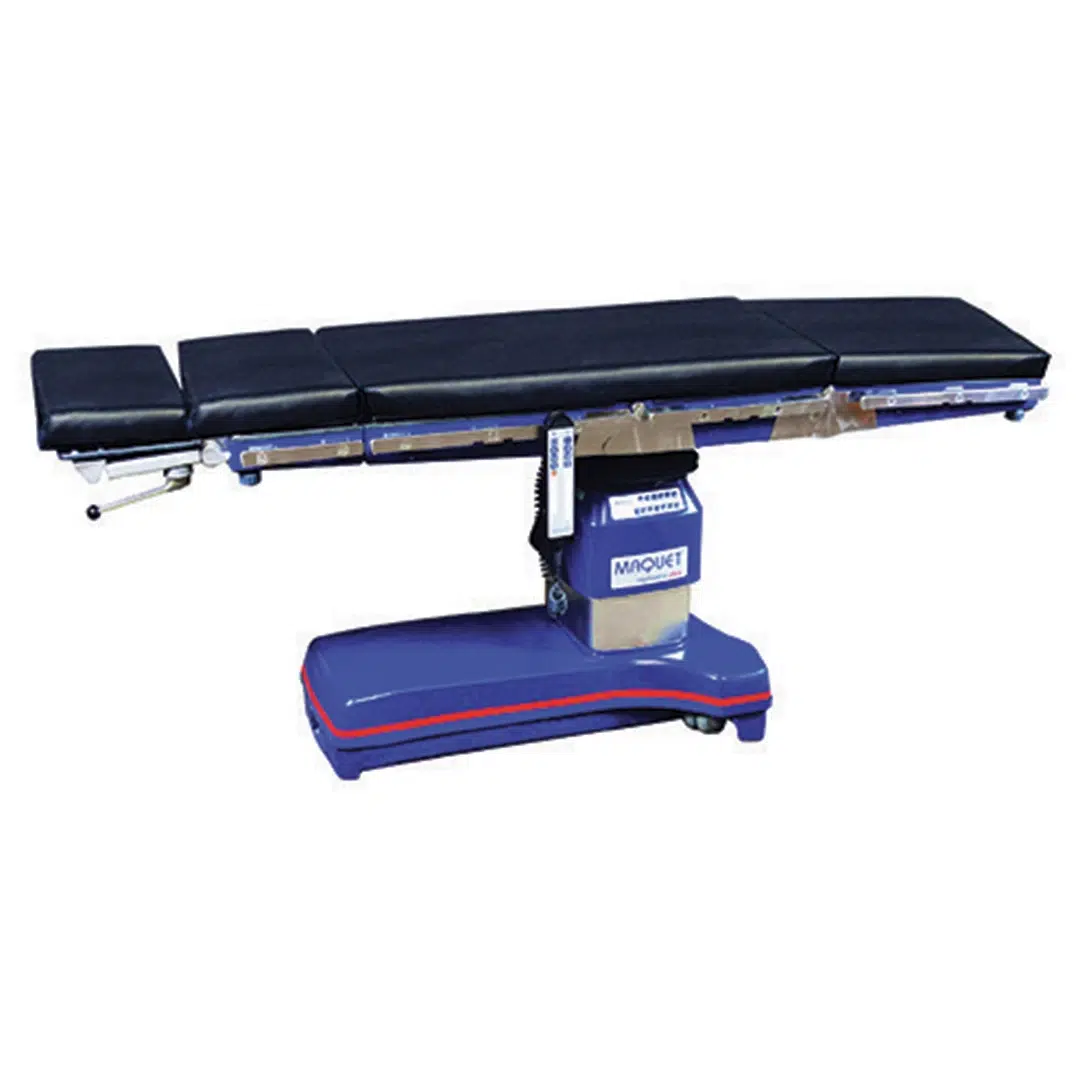

Maquet Alphastar Surgical Table

Quotes in less than 24 hours Download Specifications

Maquet Alphastar Features

The Maquet AlphaStar surgical table, with an electrically controlled hydraulic drive, provides essential table functions from tabletop positioning and auto-drive to reverse mode. AlphaStar can be modified to suit the needs of any surgical discipline in just a few quick steps. Ideal for smooth workflow in the operating room. Electrically controlled hydraulic drive for all the table’s essential functions Mounting point allows the quick use of a broad range of socket-mounted modules Back-lit key panel considerably simplifies the work in the dark MIC room.

Maquet Alphastar Specifications

Adjustment Options

Height without padding

  • 1132.11 27.0″ – 44.3″ (685 – 1125 mm)
  • 1132.12 23.5″ – 37.4″ (598 – 950 mm)
  • 1132.13 27.0″ – 42.1″ (685 – 1070 mm)


  • Length without a head plate and extension plates 51.2″ (1300 mm)
  • Length with a head plate and extension plates 82.5″ (2095 mm)
  • Width 20.5″ (520 mm)
  • Width across side rails 23.2″ (590 mm)


  • Operating table weight 300 kg / 660 lbs
  • Maximum permissible overall load 270 kg / 600 lbs(patient weight and accessories)

Tilting Features

  • Trendelenburg: +30°/-30°
  • Lateral tilt left/right: 18°/18°
  • NORMAL Backplate: +68°/-25°
  • Legplates: +80°/-105°
  • 0-Position: (resetting adjustments such as Trendelenburg / reverse Trendelenburg, lateral tilt, back plate, and leg plates.)

Additional Features

  • Base braking: (lock/unlock.)
  • Patient Orientation: (normal/reverse.)
  • Autodrive in the base.
  • (Equipment option in conjunction with the corded hand control.)
