Philips HeartStart Onsite

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips HeartStart Onsite Features

The Philips Heartstart Onsite is a ready-to-rescue AED. The Philips HeartStart OnSite is a lightweight Automatic External Defibrillator that is easy for anyone to use. The Defibrillator comes in a carrying case, preloaded with a battery and electrode pads. The system offers calming voice instructions to guide you through the process, from placing the pads on the patient to delivering a shock and performing PRC. The Philips AED comes standard with the Philips Smart Biphasic therapy that can control the current of energy used on patients for maximum effectiveness while minimizing the side effects to the patient’s fragile heart. The Philips Heartstart Onsite comes with both adult and pediatric electrode pads, along with the option for a training pad cartridge. The AED can deliver up to 150 joules of energy for adult patients.

  • Lightweight: Fully equipped at just 3.3 pounds.
  • Intuitive: Clean design and clear voice instructions instill the confidence that’s needed when administering therapy to a person in cardiac arrest.
  • Every-Ready: Powered by a long-life (4-year) disposable battery. Automated tests help ensure readiness.
  • Versatile: Available for use on anyone of any age, including children and infants.
  • Effective: Patented SMART Analysis heart rhythm assessment and SMART Biphasic defibrillation therapy, clinically proven in nearly 10 years of use. No other biphasic waveform is as well documented.

Philips HeartStart Onsite Specifications


  • Height: 2.8 inches (7 cm)
  • Width: 8.3 inches (21 cm)
  • Depth: 7.4 inches (19 cm)
  • Weight: With battery and pads case: 3.3 lbs (1.5 kg) Without battery or pads case: 2.4 lbs (1 kg)


  • Defibrillator Family: HS1

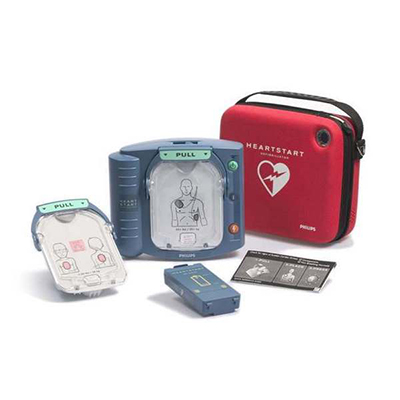

  • How Supplied: Defibrillator, Owner’s Manual, battery,1 adult SMART Pads cartridge, Quick Reference Guide, Quick Start poster, and your choice of carry case.
  • Waveform: Truncated Exponential Biphasic. Waveform parameters are adjusted as a function of each patient’s impedance.
  • Energy: Single energy output. Adult: nominal 150 Joules into a 50 ohm load.Infant/Child: nominal 50 Joules into a 50-ohm load. Automatically set based on the type of SMART Pads cartridge installed.
  • Shock-to-Shock Cycle Time Typically less than 20 seconds between shocks in a series.
  • Quick Shock: Able to deliver a shock after the CPR pause, typically in 8 seconds.
  • Voice Instructions: Detailed voice messages guide the responder through the use of the defibrillator.
  • CPR Coaching: Instructions for adult and infant/child CPR are available at the user’s option.
  • Shock Delivery Via adhesive pads placed on the patient’s bare skin as illustrated on pads.
  • Controls: Green SMART Pads Cartridge handle, green on/off button, blue i-button, orange shock button.
  • Indicators: Ready light; blue i-button; caution light.

Environmental / Physical Specifications

  • Sealing: Solid objects per EN60529 class IP2X. Drip-proof per EN60529 class IPX1.
  • Temperature Operating:32º – 122º F (0º- 50º C)
    • Standby:50º – 109º F (10º- 43º C)
  • Humidity Operating:0% to 95% relative,non-condensing
    • Standby:0% to 75% relative,non-condensing
  • Altitude Operating:0 to 15,000 feet
    • Standby:0 to 8,500 feet > 48 hours and 8,500 to 15,000 feet < 48 hours
  • Shock/Drop: Abuse Withstands a 1-meter drop to any edge, corner, or surface.
  • Vibration: Meets EN1789 random and swept sine, road ambulance the specification in operating and standby states.
  • EMI (Radiated/Immunity) Meets EN55011 Group 1 Level B Class B and
  • EN61000-4-3.

Battery (M5070A)

  • Type: 9 Volt DC,4.2 Ah, composed of disposable long-life lithium manganese dioxide primary cells.
  • Capacity: Minimum 200 shocks or 4 hours of operating time.
  • Install-By Date: The battery is labeled with an install-by date of at least five years from the date of manufacture.
  • Standby Life Four years is typical when the battery is installed by the install-by date. (Will power the AED in standby state within the specified standby temperature range, assuming one battery insertion test and no defibrillation uses.)


  • Adult SMARTPads Cartridge: M5071A defibrillation pads for patients 8 years of age and older or 55 lbs. (25 kg) and over.
  • Infant/Child SMART Pads Cartridge: M5072A defibrillation pads for patients under 8 years of age or 55 lbs. (25 kg).Rx only.
  • Energy Delivered Adult: nominal 150 Joules into a 50-ohm load. Infant/Child: nominal 50 Joules into a 50-ohm load.
  • How Supplied: Disposable cartridge, containing adhesive defibrillation pads, clicks into the defibrillator for an integrated pads solution.
  • Active Surface Area 13.2 in2 (85 cm2) each
  • Cable Length: Adult pads:54 in (137.1 cm)Infant/Child pads:40 in(101.6 cm)
  • Use-By Date: The cartridge is labeled with a use-by date of at least two
    years from the date of manufacture.

Refurbished Philips Heartstart Onsite

Soma Tech Intl offers Refurbished Philips Heartstart up to 50% below OEM prices with the same service and warranty as new. The Philips Heartstart Onsite is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the AED, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Philips Heartstart Onsite AED. If necessary, parts are replaced to make sure that all aspects of the AED are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the AED System is working like new it undergoes a special cosmetic restoration process. The Philips AED is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips Heartstart Onsite is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Philips Heartstart Onsite AED
contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Philips Heartstart Onsite If you or your facility is looking to sell your AED, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Philips Heartstart Onsite AED to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
