Drager Fabius GS Premium

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Drager Fabius GS Premium Features

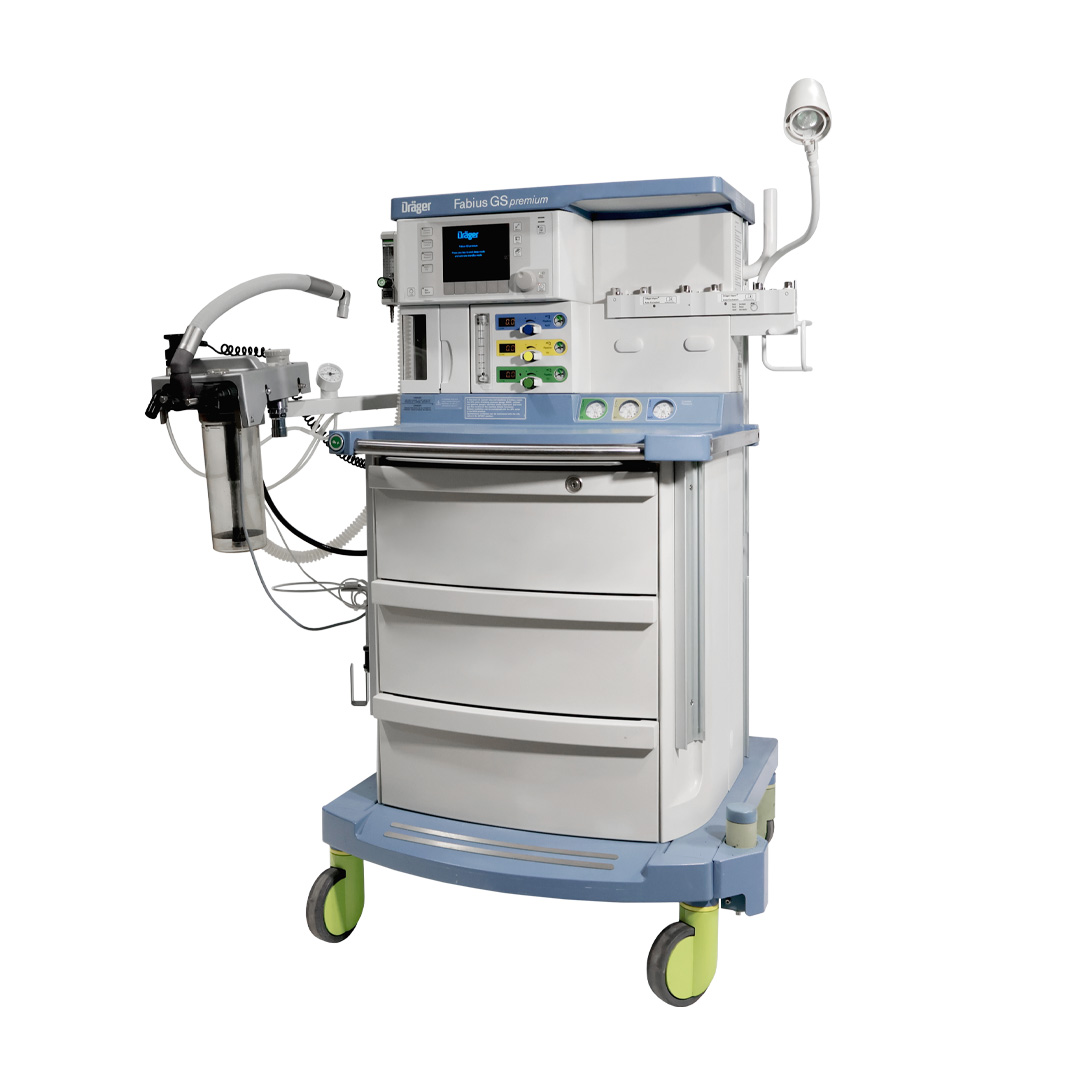

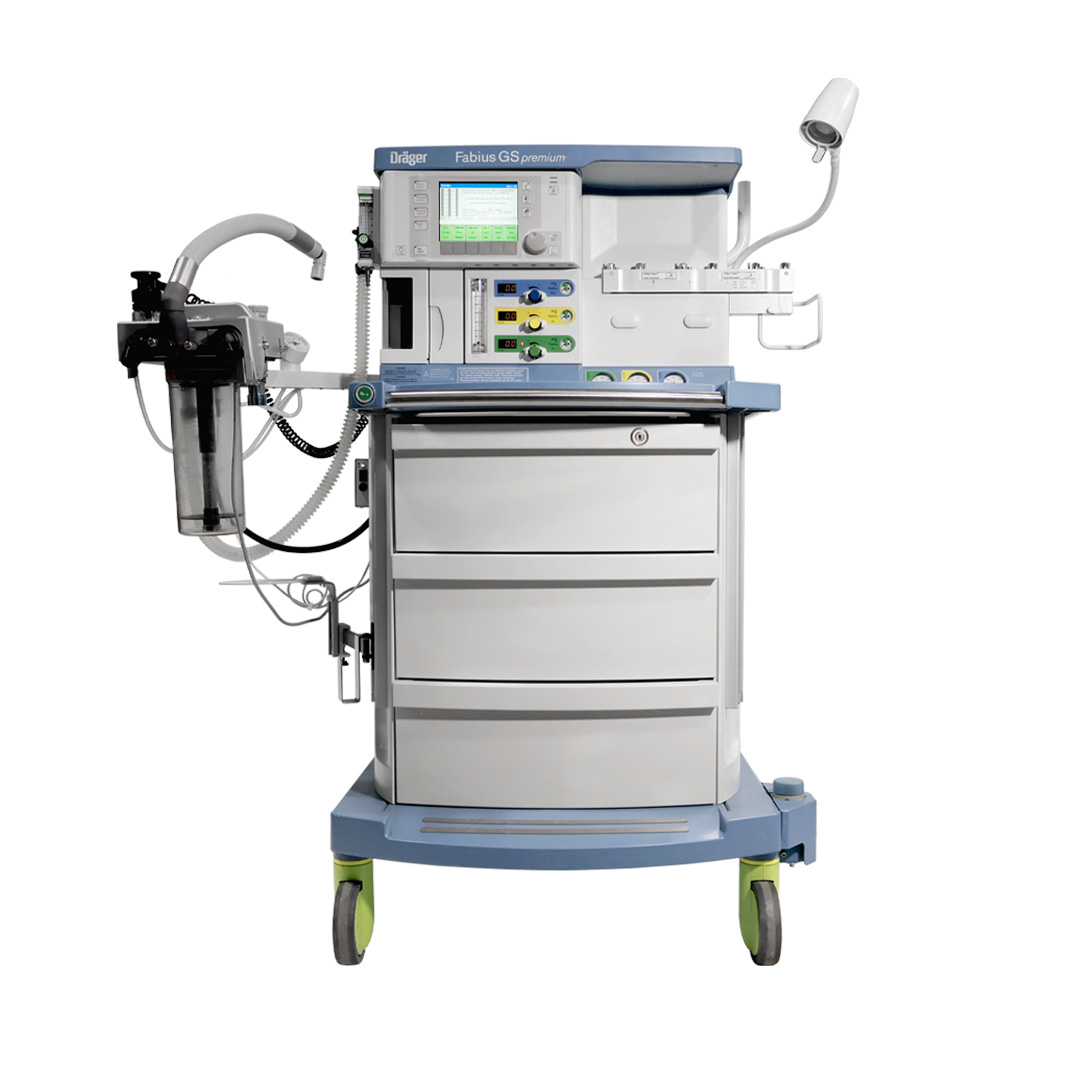

The Drager Fabius GS Premium is an anesthesia machine that offers a wide range of ventilation capabilities that can be customizable to fit your OR needs. The anesthesia machine offers advanced ICU Piston ventilation that eliminates the need for driver gases, while still providing support for volume and pressure controls and pressure support. The Fabius GS Premium shows the details of the ventilation parameters on a high-contract color monitor. The anesthesia Machine offers low-flow anesthesia, standard mounting rails for additional Drager monitors, and a locking brake system for easy movability.

  • High-contrast color monitor with the Drager user interface for easy and familiar operation.
  • All major ventilation modes.
  • New, highly maneuverable trolley with central brake.
  • Integrated LED workplace illumination.
  • Solid, spacious design with large drawers.
  • Industry-standard rails for additional Drager and third-party equipment.

Drager Fabius GS Premium Specifications


  • Height: 52 in
  • Depth: 33 in
  • Width: 30 in
  • Weight: (Base unit without vaporizers or cylinders): 296 lb (134.2 kg)

Power Supply

  • 100-240 VAC, 50/60 Hz, 2.3 A max.
  • Battery (supports ventilator and monitor): > 45 min.

Ventilator E-Vent

  • Electronically controlled, electrically driven.

Breathing Frequency

  • 4 to 60 bpm.

Max. Minute Volume (MV)

  • 99 L/min.

Positive End Expiratory Pressure (PEEP

  • 0-20 cmH2O.

Inspiration / Expiration Ratio (Ti: Te)

  • 4:1 to 1:4

Pressure Limiting (Pmax):

  • 15-70 cmH20

Tidal Volume (Vt):

  • 20-1400 mL in Volume Control.
  • 20-1100 mL in SIMV/PS.

Inspiratory Pause (Tip: Ti):

  • 0 – 50 %

SIMV Inspiratory Time (Tinsp):

  • 0.3 – 4.0 sec.

Inspiratory Pressure (Pinsp):

    PEEP + 5 to 65 cmH2O.

Inspiratory Flow (InspFlow):

  • 10-75 L/min in Volume and Pressure Control.
  • 10-85 L/min in Pressure Support.

Pressure Support Level (?PPS):

  • PEEP + 3 to 20 cmH2O.

Min. Freq. for Apnea-Ventilation (Freq. Min.):

  • 3-20 bpm and “OFF”.


  • 2-15 L/min.

Range of Fresh Gas Flow Indicators:

  • 0.00 to 12.0 L/min.

Total Fresh Gas Flow Meter:

  • 0 to 10 L/min.
  • Calibrated with a mixture of 50 % O2 and 50 % N2O mixture.

O2 Flush:

  • 87 psi (6 bar):
    • max.75 L/min
    • min 25 L/min41 psi (2.8 bar):

Refurbished Drager Fabius GS Premium Anesthesia Machine

Soma Tech Intl offers Drager Fabius GS Premium Anesthesia Machines up to 50% below OEM prices with the same service and warranty as new. The Drager Fabius is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the anesthesia machine, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on anesthesia machines. If necessary, parts are replaced to make sure that all aspects of the Anesthesia Machine are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Anesthesia Machine is working like new it undergoes a special cosmetic restoration process. The Drager Fabius GS Premium is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Drager Fabius GS Premium is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Drager Fabius GS Premium anesthesia machine contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Drager Fabius GS Premium. If you or your facility is looking to sell your Anesthesia Machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Drager Fabius GS Premium to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
