Mindray DPM7

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

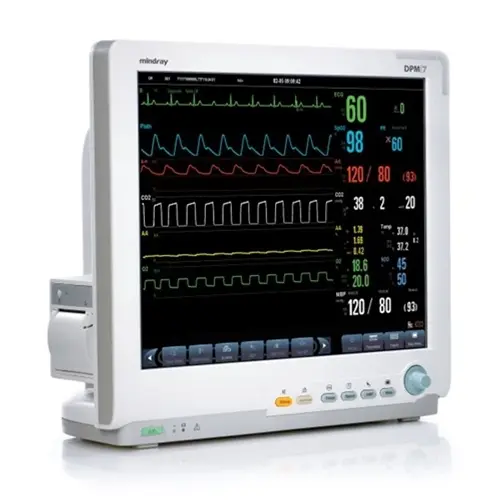

Mindray DPM7 Features

The Mindray DPM7 is a muti-parameter patient monitor that comes with a unique split-screen feature. This allows operators to view 5-Lean ECG while analyzing the real-time data. Making the DPM7 an asset to have in your ICU or Operating Room. The Mindray patient monitor comes with a 17 inch touchscreen display and resolution making it easier to monitor patients. The Mindray patient monitor has a broad range of monitoring capabilities including: providing clinicians with multi-vector arrhythmia monitoring, as well as 3, 5, and 12-lead ECG monitoring, RESP, NIBP, ST analysis, CO, CCO/SVO2, CO2, 8 invasive blood pressures, and 5-agent multi-gas analysis with auto-ID and data storage.

  • Multi-parameter monitor
    • Multi-gas analysis
    • RESP
    • Pulse Rate
    • NIBP
    • Multi-vector arrhythmia and ST analysis
    • 3, 5, and 12-lead ECG monitoring
  • Clear, 17” high-resolution color
  • Comes standard with lithium-ion batteries
  • Customizable touchscreen quick-action
    keys for efficiency
  • Large numeric display mode for
    increased visibility

Mindray DPM7 Specifications

Physical Specifications

  • Dimensions: 14.6” (370 mm) H x 15.7” (400 mm) W x 7.6” (193 cm) D
  • Weight: > 31.9 lbs (14.5 kg) including display, MPM, AG module, 2 lithium batteries, recorder, CF components
  • Display: 17” (432 mm)
  • Power Supply: 1 AC power connector
  • Network: 2 RJ45 network connectors, 100 BASE-TX
  • Video: 1 standard DVI-D video interface connector
  • Auxiliary output: 1 BNC connector
  • Equipotential: 1 equipotential grounding connector IEEE 802.11g Wi-Fi compatible


  • Operating Atmospheric Pressure: 425 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)
  • Operating Temperature: 41° – 104°F (5° to 40°C), 32° – 104°F (0°C to 40°C) Microstream CO2 module, 41° – 95°F (5°C to 35°C) Sidestream CO2 module, 50° – 104°F (10°C to 40°C) AG Module
  • Operating Humidity: 15% to 95%, non-condensing
  • Storage Atmospheric Pressure: 120 – 809 mmHg, 430 – 795 mmHg (Microstream CO2 module), 428 – 790 mmHg (Sidestream CO2 module), 525 – 900 mmHg (AG module)

Inspiration time (Ti)

  • 0.11 to 10 s (adults)
  • 0.1 to 10 s (pediatric patients, neonates)


    • Input Voltage: 100 to 240VAC
    • Current: 2.8 to 1.6A

Refurbished Mindray DPM7 Patient Monitor

Soma Tech Intl offers the Mindray DPM7 Patient Monitors up to 50% below OEM prices with the same service and warranty as new. The Mindray DPM7 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Mindray DPM7, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient monitoring systems. If necessary, parts are replaced to make sure that all aspects of the Mindray DPM7 are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Mindray DPM7 is working like new it undergoes a special cosmetic restoration process. The Mindray DPM7 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Mindray DPM7 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Mindray DPM7 Patient Monitoring systems contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Mindray DPM7. If you or your facility is looking to sell your Mindray DPM7, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Mindray DPM7 takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
