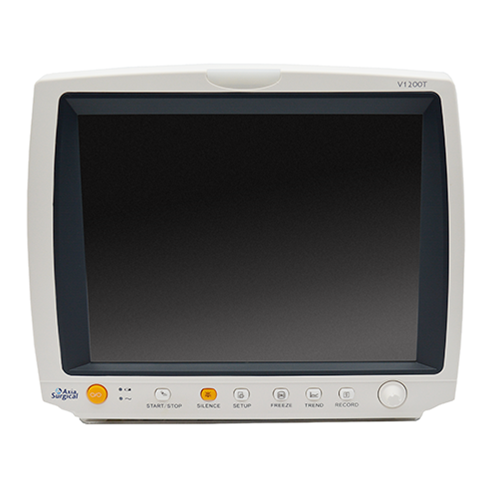

Axia V1200T Touch Screen

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Axia V1200T Touch Screen Features

The Axia V1200T is a patient monitor with a large touchscreen display, making adjustments to the patient’s vital signs quickly and easily when needed. The Axia V1200T can monitor non-invasive blood pressure, ECG with arrhythmia detection, Masimo Set SpO2, temperature, and respiration rate. End-tidal CO2, anesthesia agent measurements, Cardiac output, and invasive blood pressure can be added by attaching a plugin module to the monitoring system. The Axia V1200T not only offers a quick way to adjust the parameters but also offers additional default settings, and alarm limits and can manage up to 72 hours of detailed patient data. The Monitor can transmit the patient’s data to the facility’s computer system through a standard Ethernet connection.

  • High-resolution 12.1-inch touch-screen display
  • Capnography with EtCO2 monitoring (optional)
  • Auto setting of alarm limits
  • Color-coded alarms
  • Graphical and tabular trends (72 hours)
  • Patient data entry
  • OxiCRG, drug dose calculation
  • Trace: 8 waveforms
  • Trend Time: 1 – 72 Hours
  • Networking capability (wireless and non-wireless)
  • The color of the waveforms can be changed
  • Battery backup (removable batteries)
  • Weight: 8.45 lbs.
  • Applications: Neonatal, pediatric, and adult patients


Axia V1200T Touch Screen Specifications



  • Display: 12.1 inch color touchscreen
  • Trace: 8 waveforms
  • Indicator: Alarm indicator, Power indicator, QRS beep and alarm sound
  • Trend time: 1 – 72 hours, Recorder: Built-in, thermal array, 3 channels Record width: 48mm, Recorder paper: 50mm, Record speed: 25mm/s, 50mm/s


  • Industry-standard 802.11b/g wireless network


  • Source: External AC power or internal battery
  • AC Power: 100 ~ 240VAC, 50/60Hz, 150VA
  • Battery: Built-in & rechargeable lithium-ion
  • Operating Time: 3+ hours

Environmental Specifications

  • Temperature: Operating: 5 ~ 40 °C, Storage: -20 ~ 65 °C
  • humidity range: Operating: =80 % Storage: =80 %


  • Input: 5-lead ECG Cable and standard AAMI line for connection
  • Lead Choice: I, II, III, aVR, aVF, aVL, V, V1-V6, TEST
  • Gain Choice : x0.5, x1, x2, x4
  • Frequency Characteristic: 0.05 ~ 35 HZ (+3dB)
  • ECG Waveforms: 7 channels
  • Penetration Voltage: 4000VAC 50/60Hz
  • Sweep Speed: 12.5, 25, 50, and 100 mm/sec (left to right or right to left)
  • HR Display Range: 30 ~ 300bpm
  • Accuracy: ±1bpm or ±1%, whichever is greater
  • Alarm Limit Range Setting: upper limit 100 ~ 200bpm, lower limit 30 ~ 100bpm


  • Measure Method: RA-LL impedance
  • Range: 0 ~ 120 rpm
  • Accuracy: ±3 rpm
  • Alarm Limit Setting: upper limit 6 ~ 120 rpm, lower limit 3 ~ 120 rpm
  • Sweep Speed: 12.5, 25, 50, and 100 mm/sec (left to right or right to left)


  • ASpO2: Anti-motion SpO2
  • SpO2% Range: 0-100%
  • SpO2 Accuracy: ±2% (70 ~ 100%, non-motion), ±3% (70 ~ 100%, motion)
  • Pulse Rate Range: 30-250 bpm
  • Pulse Rate Accuracy: ±2 bpm (non-motion, ±3 bpm (motion)
  • Alarm Limit Setting: upper limit 70 ~ 100%, lower limit 70 ~ 100%
  • SpO2 Probe: Red light LED wavelength 660nm±5nm, Infrared light LED wavelength 940nm±10nm

Refurbished of The Axia V1200T Patient Monitor

Soma Tech Intl offers the Axia V1200T Patient Monitors
up to 50% below OEM prices with the same service and warranty as new.The Axia V1200T Patient Monitor is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Axia V1200T Patient Monitor, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the Axia V1200T to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Axia V1200T is working like new it undergoes a special cosmetic restoration process. The Axia V1200T is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Axia V1200T is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Axia V1200T patient monitor contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Axia V1200T If you or your facility is looking to sell your Axia V1200T , be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Axia V1200T takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our </a href=”” target=”_blank”>Sell to Soma website.
