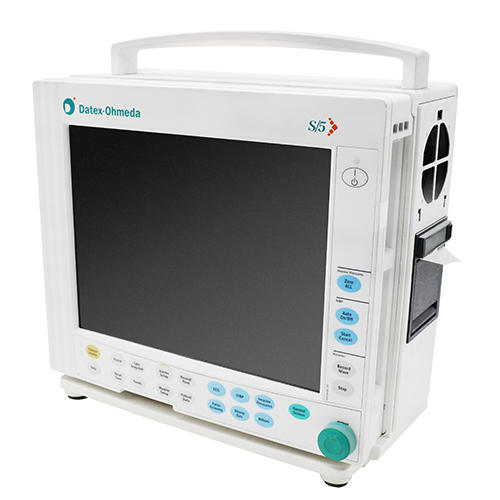

Datex Ohmeda Compact S5

The Datex Ohmeda S5 Compact is a patient monitor that comes with anesthesia monitoring as well. The S5 Compact offers the basic monitoring parameters including; ECG, NIBP, SpO2, temperature, and EtCO2 on top of offering 5 agent gases for anesthesia. The monitor is ideal for hospitals, surgery centers, smaller operating rooms, and recovery rooms. The monitor’s large LCD color screen makes it easy to view the parameters being monitored.

  • Measures ECG, NIBP, SpO2, Temperature, and EtCO2
  • 5 Agent gas analysis to monitor Sevoflurane & Desflurane agents
  • Larger 12 inch color LCD display
  • Up to 8 waveforms and 4 numeric digital fields can be displayed
  • 24-hour graphical and numeric tends can be displayed or stored in the historical data
  • Integrated basic Hemodynamic and all airway gas measurements
  • 2+2 slot monitor using standard s/5 Datex Ohmeda modules

Datex Ohmeda Compact S5 Specifications

Dimensions

  • Height: 13.4 in (340 mm)
  • Depth: 8.1 in (205 mm)
  • Width: 13.2 in (335 mm)
  • Weight: 24.2 lbs (11 kg)

Display

  • Display Size: 12.1 in diagonal
  • Display Type: Active matrix color TFT LCD
  • Display Resolution: SVGA resolution, 800 x 600
  • Number of Waveforms: Up to 8
  • Number of Digit Fields: Up to 4
  • Display Layout and Colors: User-configurable
  • Integrated Command Board with direct function keys, menu keys, and ComWheelTM for selections and adjustments in menus

Frame

  • Module Capacity: 2+2 module slots
  • I/O Connections: RS-232 computer serial output, 2 fixed analog outputs, connector for remote controller, external keyboard and barcode reader with Y-cable, defibrillation sync, Nurse call
  • Device Interfacing Solution: Connector for up to 10 simultaneous S/5 DIS interfaces
  • Network: Compatible with Datex-Ohmeda S/5 Network and Central for monitor-to-monitor communication, centralized viewing, and remote alarm management
  • Wireless Network Option: Allows the monitor to utilize both the wired and wireless network (WLAN) for centralized monitoring
  • MemCard Option: Activates MemCards to transfer the trended data of patient vital signs
  • Printing: Laser printing capabilities: serial printer supporting PCL5 language or network printer (serial/parallel converter, additional accessory)
  • Recorder Option: Built-in three-channel thermal array recorder • Mounting Options: Bed mount, wall mount, and roll stand

Battery

  • Type: Built-in NiMH battery
  • Capacity: Up to 1.5 h typical on full charge at 23°C/73°C; with combination: M-NESTPR, M-miniC and N-CMW typically 2h
  • Recharging: When connected to main power
  • Charging Time: 10 hours to full capacity
  • Battery operation alarm: Early warning – ‘Battery low’ note, Final warning -’Battery low’ alarm
  • Battery state indicator: Battery bar displayed on the screen

Alarms

  • Alarm system classified into three categories according to priority in anesthesia; color and audio tone-coded
  • Central alarm display and adjustment page
  • 10 min graphical mini-trends referenced to set alarm limits

Modes

  • Modes: Up to 6 user-configurable modes for care-specific configurations
  • Pages: Up to 6 user-configurable display pages for each mode



Refurbished Datex Ohmeda Compact S5 Multiparameter Patient Monitor

Soma Tech Intl offers the Datex Ohmeda Compact S5 monitors up to 50% below OEM prices with the same service and warranty as new. The Datex Ohmeda Compact S5 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Datex Ohmeda Compact S5, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the Datex Ohmeda Compact S5 to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Datex Ohmeda Compact S5 system is working like new it undergoes a special cosmetic restoration process. The Datex Ohmeda Compact S5 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before theDatex Ohmeda Compact S5 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Datex Ohmeda Compact S5 monitors contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Datex Ohmeda Compact S5 monitor. If you or your facility is looking to sell your Datex Ohmeda Compact S5, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Datex Ohmeda Compact S5 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
