Philips IntelliVue MX450 Features

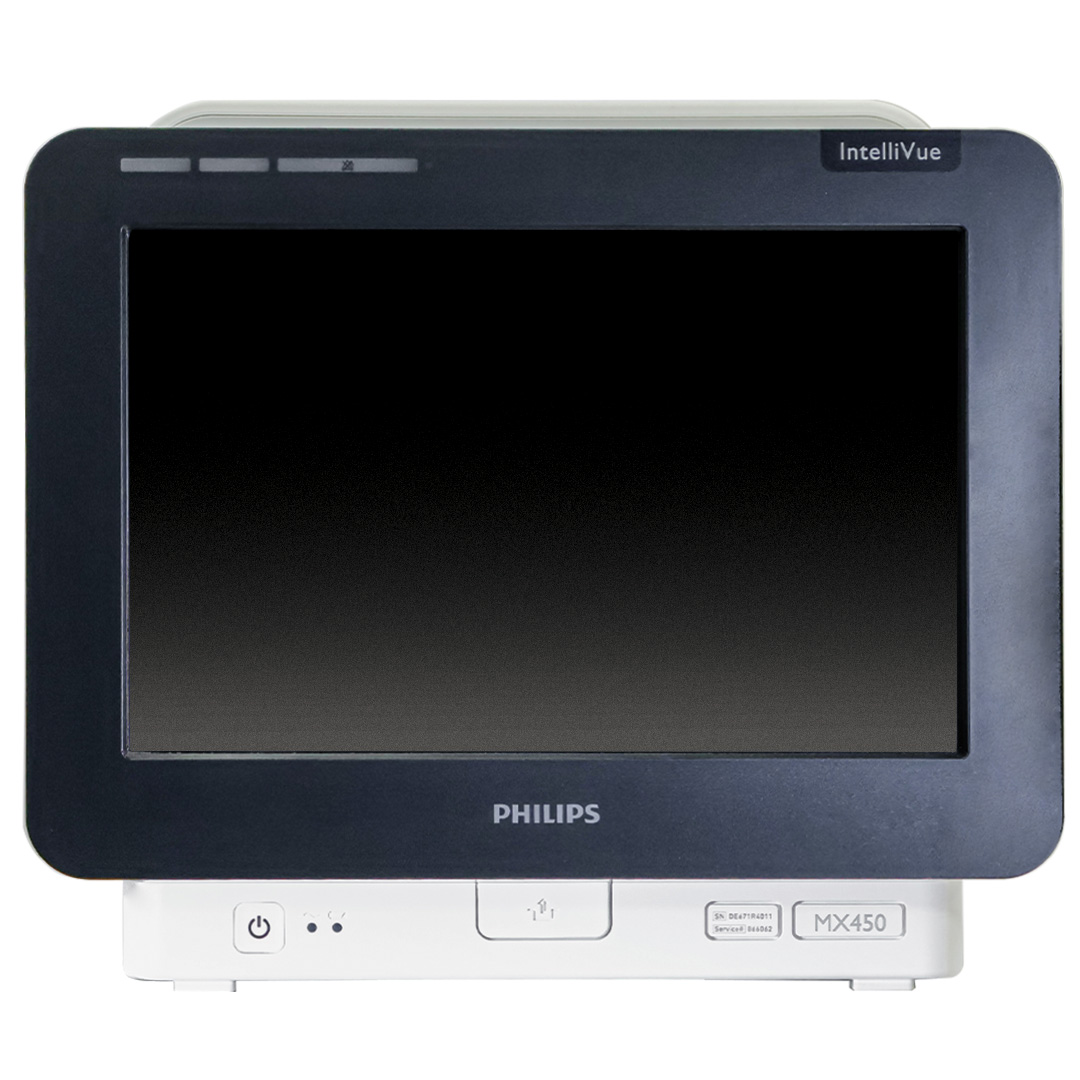

The Philips IntelliVue MX450 is a patient monitor that is designed to fit a variety of needs. The MX450 comes with a 12-inch color touch screen and an easy to use interface. The Display screen has a sensor that can automatically adjust the lighting on the display screen, to maintain readability in any lighting situation. The design of the Philips IntelliVue monitor makes the MX450 a compact easy carry design that can be both a bedside monitor and for intra-hospital transport. The MX450 Modules. Some of these modules include; anesthesia, intensive, cardiac, neonatal, and general care units. At the same time, the MX450 can easily be connected to an EMR system and share the patient’s data across other devices or even a central data station in your medical facility. Philips offers a variety of patient monitors, another in the MX series is the Philips IntelliVue MX 500.

  • Patient data management with tabular and high-resolution trends.
  • Drug, ventilation, hemodynamic, and oxygenation calculations.
  • Easy-to-read, easy-to-use touch screen.
  • Simple menu hierarchy for fast access to all basic monitoring tasks.
  • Capable of functioning in a wireless infrastructure.
  • Adjustable screen layouts.
  • Built-in recorder.

Philips IntelliVue MX450 Specifications


  • Height: 11.34” (28.8 cm)
  • Width: 12.87” (32.7 cm)
  • Depth: 7.17” (18.2 cm)
  • Weight: 12.9 lbs (5.9 kg)


  • Operating Time: ~ 3-4 hours depending on monitoring configuration
  • Charge Time: 3 hours when the monitor is off. 5 hours when the monitor is in use.

Wave Speeds

  • Available for Standard Waves: 6.25 mm/s, 12.5 mm/s, 25 mm/s, 50 mm/s with ±5% accuracy (guaranteed only for integrated displays)
  • Available for EEG and BIS Waves: 6.25 mm/s, 12.5 mm/s, 15 mm/s, 25 mm/s, 30 mm/s, 50 mm/s with ±5% accuracy (guaranteed only for integrated displays)

High Res Trend Waves

  • Measurements Available: HR, SpO2, Resp, tcpO2, Pulse, Perf, tcpCO2, CO2, ABP, PAP, CVP, ICP, CPP, BIS, CCO, AWP, Anesthetic Agents, Delta SpO2, inO2
  • Resolution: Measurement samples are taken at a resolution of four samples per second
  • Update Speed: Waves are drawn at a speed of 3 cm/minute

Display (12″ WXGA)

  • Type: 310 mm active matrix color LCD (TFT)
  • Resolution: 1280 x 800 (WXGA 16:10)
  • Refresh Frequency: 59.9 Hz
  • Useful Screen: 261.1 mm x 163.2 mm
  • Pixel Size: 0.204 mm x 0.204 mm


  • Power Consumption: <70 W average
  • Line Voltage: 100 to 240 V
  • Current: 1.2 to 0.5 A
  • Frequency: 50/60 Hz


  • Resolution: 4h@12s, 24h@1min, 48h@5min for 50 numerics


  • Capacity: 25 or 50 events for either 8 or 24 hours
  • Episode Data: Configurable, either: 4 minutes of high-resolution trend or 20 minutes of numerics trend @ 12 sec. resolution or 15 seconds of 4 waves @ 125 samples/sec. (Snapshot) including all current numerics, alarms, and tops.

Refurbished Philips IntelliVue MX 450 Patient Monitor

Soma Tech Intl offers Philips IntelliVue MX 450 Patient Monitor up to 50% below OEM prices with the same service and warranty as new. Philips IntelliVue MX 450 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts the infusion pump is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the Philips IntelliVue MX 450 are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips IntelliVue MX 450 is working like new it undergoes a special cosmetic restoration process. The Philips IntelliVue MX 450 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Philips IntelliVue MX 450 Patient Monitor is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Philips IntelliVue MX 450 contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a Philips IntelliVue MX 450 Patient Monitor. If you or your facility is looking to sell your Philips IntelliVue MX 450, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Philips IntelliVue MX 450 to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
