GE Eagle 4000

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

GE Eagle 4000 Features

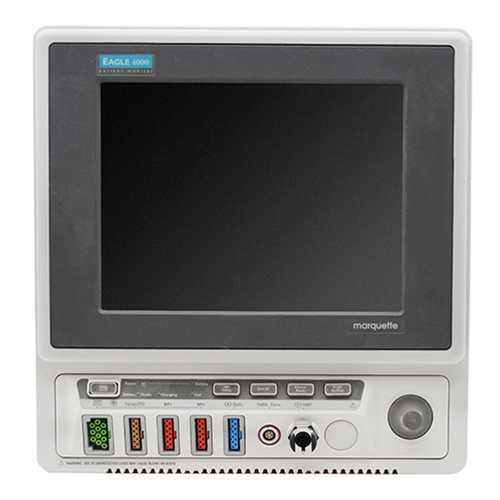

The Ge Eagle 4000 is a patient monitor that can fit each patient’s needs. The Eagle 4000 offers the basic parameters; multi-lead ECG, non-invasive blood pressure, SpO2, and two different temperature readings. Additional sources can be added to the GE Eagle to add invasive blood pressure, EtCo2, cardiac output, respiration, 12 lead ECG analysis, and 12 lead st monitoring. The monitoring system can show up to 6 waveforms at once on the 10-inch color LCD screen. The lightweight monitor can go from a bedside monitor to a transport monitor. The GE Eagle 4000 can be used for both sub-acute and acute situations.

  • Multi lead ECG
  • NIBP, SpO2, Dual IBP and Temperature
  • Simultaneous multi-lead arrhythmia analysis
  • Event storage and recall

Options

  • 12-lead ST monitoring
  • CO2 Monitoring

GE Eagle 4000 Specifications

Dimensions

  • Height: 32.6 cm (12.8”). Width: 32 cm (12.5”). Depth: 14.1 cm (5.6”). Weight: 17.9 lbs

Display

  • Size: 10.4” diagonal.
  • Type: monochrome high-bright electroluminescent and color thin film transistor liquid crystal display.
  • Resolution: 640 x 480 pixels.
  • Number of traces: 6.
  • Length of trace: 6.0 at 25 mm/ sec.
  • Sweep speed: 25 mm/s, all waveforms except CO2.
  • Waveform display options: full or individual.
  • Information window: displays all non-real-time information without obstructing the display of real-time information.
  • Display organization: prioritized by parameter.

Alarms

  • Classification: crisis, warning, advisory, and message.
  • Notification: audible and visual.
  • Setting: default and individual.
  • Silencing: 1 minute, current alarm only.
  • Volume: default 70%, 70 dB measured at 1 meter.

ECG

  • Leads: I, II, III, V, aVR, aVL, and aVF.
  • Leads analyzed simultaneously: I, II, III and V (multi-lead mode).
  • Heart rate range: 30 to 300 bpm.

Respiration

  • Measurement technique: impedance variation detection.
  • Respiration rate range: 1-200 breaths per minute.
  • Alarms: user-selectable upper and lower limits, and user-selectable apnea limit.

Temperature

  • Channels: 2. Range: 0°C to 45°C (32°F to 113°F. Resolution: ±0.1°C.
  • Parameters displayed: T1 and T2.
  • Alarms: selectable upper and lower limits for T1 and T2.

NIBP

  • Measurement Technique: oscillometric.
  • Displayed parameters: systolic, diastolic, and mean pressures, pulse rate, time of last measurement.
  • Measurement modes: manual, auto and stat.
  • Heart rate detection: 30 to 300 beats per minute.
  • Alarms: user-selectable upper and lower limits for systolic, diastolic, and mean pressures.

Pulse Oximetry

  • Parameters monitored: arterial oxygen saturation (SpO2) and peripheral pulse rate (PPR).
  • SpO2 – range: 50-100%; accuracy: ±2% (70-100%), ±3% (50-60%).
  • PPR – range: 20-250 bpm; accuracy: ±3 bpm.
  • Alarms: user-selectable upper and lower limits for SpO2 and PPR

Power Requirements

  • 90-132 VAC 50/60 Hz; 190-264 VAC 50/60 Hz.
  • Power consumption: 90-132 VAC 2A; 190-264 VAC 50/60 1A

Refurbished GE Eagle 4000 Patient Monitor

Soma Tech Intl offers the GE Eagle 4000 patient monitors up to 50% below OEM prices with the same service and warranty as new. The Eagle 4000 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the GE Eagle 4000 it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the GE Eagle 4000 are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE Eagle 4000 is working like new it undergoes a special cosmetic restoration process. The GE Eagle 4000 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Eagle 4000 is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished GE Eagle 4000 patient monitors contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a GE Eagle 4000. If you or your facility is looking to sell your GE Eagle 4000, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE Eagle 4000 patient monitors to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
