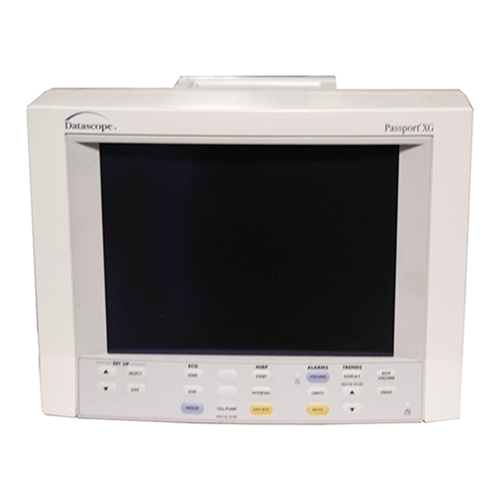

Datascope Passport XG
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included. Download Specifications
Datascope Passport XG Features
The Datascope Passport XG is a Patient Monitor that was specifically designed to be used for hospital use, Monitoring during surgeries, a bedside monitor, or as a transport monitor. The Passport XG has a large color display tot is easy to read and can provide up to three waveforms on the display at once. The parameters it can measure include EKG, NIBP, pulse oximetry, and temperature. The Datascope System can be configured to also monitor end-tidal CO2 as well.
- 3/5 Lead ECG
- Printer
- Non-invasive blood pressure
- Pulse oximetry
- Battery back up for transport
Datascope Passport XG Specifications
Display
- S21.1 cm x 15.8 cm(1.5 kg)
ECG
- Leads I, II, III, aVR, aVL, aVF and V.
- Defibrillator overload protection: Withstand Lown and trapezoidal or Edmark waveform up to 400 joules applied to 100 ohms load and electrode at 20 second intervals.
- Recovery time: time for trace to return to screen from defibrillator moo pulse is 3 seconds maximum.
IBP
- Range to digital display; systolic/diastolic mean -20 to +300 mmHg.
- Accuracy: 2 mmHg or 2%, whichever is greater to numerical display position.
- Zero range: ±120 mmHg minimum at nominal gain.
Heart Rate
- Range – 30-300 bpm for adult/child, 30-350 bpm for neonatal.
- Accuracy – 30-250 ±3 bpm or ±3%, whichever is greater.
NIBP
- Technique: oscillometric.
- Systolic range: 50 to 250 mmHg for adult/ped mode, 15 to 150 mmHg for neonatal mode.
- Diastolic range: 30 to 200 mmHg for adult/ped mode, 10 to 150 mmHg for neonatal mode.
- Systolic accurancy: mean error less than 7 mmHg, standard deviation less than 8 mmHg (adult/ped), mean error less than 4 mmHg, standard deviation less than 13 mmHg (neonatal)
- Diastolic accuracy: mean error less than 7 mmHg, standard deviation less than 8 mmHg (adult/ped), mean error less than 4 mmHg, standard deviation less than 7 mmHg (neonatal). • Heart rate meter range: 30-250 bpm.
- Heart rate meter accuracy: ±3 bpm or ±3%, whichever is greater.
Temperature
- TScale: selectable °C or °F.
- Range: 15°C to 45°C, 59°F to 113°F.
- Accuracy: ±0.1°C to 45°C or ±0.2°F 59 to 113°F
Respiration (ECG)
- Range: 4-200 pm.
- Accuracy: ±2% or ± bpm, whichever is greater
Recorder
- Speed – 50, 25, 12., 6.25, 3.125 mm/sec ±5%
C02
- Range: 0-14.8 vol%, 0-14.8 kPa, 0-11 mmHg, 0-111 Torr.
- Rise Time: <400ms.
- Accuracy: ±(0.2% vol% to 2% of reading)
02
- Range: 0-100 vol%.
- Rise time: <400 ms.
- Accuracy: ±(0.2% vol% + 2% of reading)
N02
- Range: 0-100% N2O.
- Rise time: <450 ms.
- Accuracy: ±(2 vol%+ 2% of reading)
Battery
- Type: 2 sealed lead acid batteries.
- Voltage: 12 VDC nominal (@2.3A load).
- Capacity: 2.3 AH each.
- Run time: 1.5 hours from full charge of new battery at 25°C with SpO2, 1 NIBP every 15 minutes, no recording.
- Recharge time: 16 hours.
- Low battery warning: 11.6V, ±3.5%. • Low battery cut off: 11.0V ±2.8%
h3>Refurbished of The Datascope Passport XG Patient Monitor
Soma Tech Intl offers the Datascope Passport XG Patient Monitor
up to 50% below OEM prices with the same service and warranty as new. The Datascope Monitor is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the patient monitors, it is carefully inspected and tested by our own in-house biomedical engineers that are highly skilled and certified to work on patient monitors. If necessary, parts are replaced to make sure that all aspects of the monitor are to the original engineering manufacturer specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Datascope monitor is working like new it undergoes a special cosmetic restoration process. The monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Passport XG monitor is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished stretcher contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is actively looking to purchase Datascope patient monitors, If you or your facility is looking to sell your patient monitors, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned monitors, takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Techn Intl’s purchasing department at [email protected] or send us a message on our </a href=”https://www.somatechnology.com/Sell-to-Soma/” target=”_blank”>Sell to Soma website.
?
