GE Aestiva/5 MRI

Quotes in less than 24 hours Download Specifications

GE Aestiva/5 MRI Features

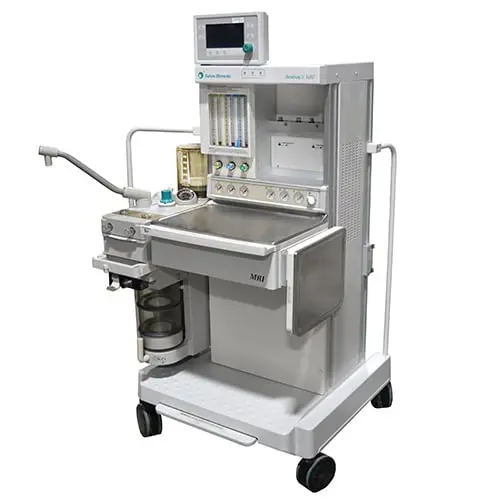

The GE Aestiva/5 MRI is an MRI compatible anesthesia machine. The compact design and small footprint of the Aestiva/5 MRI make it easy to move to either an MRI Suite or an Operating Room when needed. The Aestiva 5 MRI features the standard Datex-Ohmeda user interface like the Aestiva 5, along with ventilation of the SmartVent technology and the advanced breathing system. Coming with two options for ventilators the 7100 and the 7900 SmartVent. The Aestiva 5 MRI comes with an integrated alarm system that warns the operator when the machine is located in an MRI magnetic fringe field in excess of 300 gausses. The GE anesthesia machine offers low and minimal flow anesthesia along with reducing agent consumption.

  • MRI anesthesia machines for us in environments with up to 300 Gauss, actively shielded 1.5T and 3T magnets
  • Physically integrated magnetic field strength monitor (Gauss Alarm)
  • Low overall height
  • Features facilitate use in both the MRI suite and surgical OR
  • Volume Mode, Pressure Control Mode, Pressure Support (PSVPro), Synchronized Intermittent Mandatory Ventilation (SIMV), electronic PEEP
  • Tidal volume compensation
  • Two key presses to total standby: end case
  • One motion from mechanical to manual mode
  • Cardiac bypass case mode
  • Innovative patient breathing system
  • Eight integrated machine hoses/cables
  • Autoclavable and latex-free
  • Responsive location of common gas outlet
  • Improved low flow/reduced life cycle costs

GE Aestiva/5 MRI Specifications


  • Height: 59.8 in (152 cm)
  • Width: 38.4 in (97.5 cm)
  • Depth: 32.7 in (83 cm)
  • Weight: ~ 300 lb (136 kg)

Ventilation Operating Modes

  • Volume Control
  • Pressure Control
  • Synchronized Intermittent Mandatory Ventilation (SIMV) (optional)
  • Pressure Support (PSVPro) with Apnea Backup ventilation (optional)
  • Ventilator (VT) parameter ranges

Anesthetic Agent Delivery

  • Anesthetic agent delivery: Tec 5, Tec 7
  • Number of positions: 2
  • Mounting: Tool-free installation Selectatec manifold interlocks and isolates vaporizers

Electrical specifications

Current Leakage

  • 120V: < 300μA
  • 220V: < 500μA

Power and Battery Back-Up

Power Input
  • USA/Canada/Mexico: 120 Vac, 60 Hz, 10A
  • Euro: 220-240 Vac, 50 Hz, 6A
  • Italy/France/Belgium: 230 Vac, 50 Hz, 6A
  • Japan: 100 Vac, 50 or 60 Hz, 10A
  • UK: 240 Vac, 50 Hz, 6A


  • Demonstrated battery backup time under typical operating conditions is 45 minutes when fully charged
Battery Type
  • Internal rechargeable sealed lead acid
Power Cord
  • Length: 5 m/16.4 ft | Rating: 10A @ 250 Vac or 15A @ 120 Vac

Communication Port

Serial Interphase
  • Isolated RS-232C compatible port

Refurbished GE Datex-Ohmeda Aestiva 5 MRI Anesthesia Machine

Soma Tech Intl offers GE Datex-Ohmeda Aestiva/5 MRI anesthesia machines up to 50% below OEM prices with the same service and warranty as new. The GE MRI anesthesia machine is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Aestiva 5, it is carefully inspected and tested by our in-house biomedical engineers, that are highly skilled and certified to work on anesthesia machines. If necessary, parts are replaced to ensure that all aspects of the anesthesia machine are functioning correctly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit works the same way it originally left the manufacturer. After the anesthesia machine is working like new, it undergoes a special cosmetic restoration process. The Aestiva/5 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE MRI compatible anesthesia machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Datex Ohmeda Aestiva 5 MRI anesthesia machines contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase a GE Datex-Ohmeda Aestiva 5 MRI. If you or your facility is looking to sell your Anesthesia Machine, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE Datex Ohmeda Aestiva 5 MRI to Soma Tech Intl takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you or your facility is looking to regain space for new equipment, or if you are looking to upgrade your current equipment, contact Soma Tech Intl’s purchasing department at [email protected] or send us a message on our Sell to Soma website.
