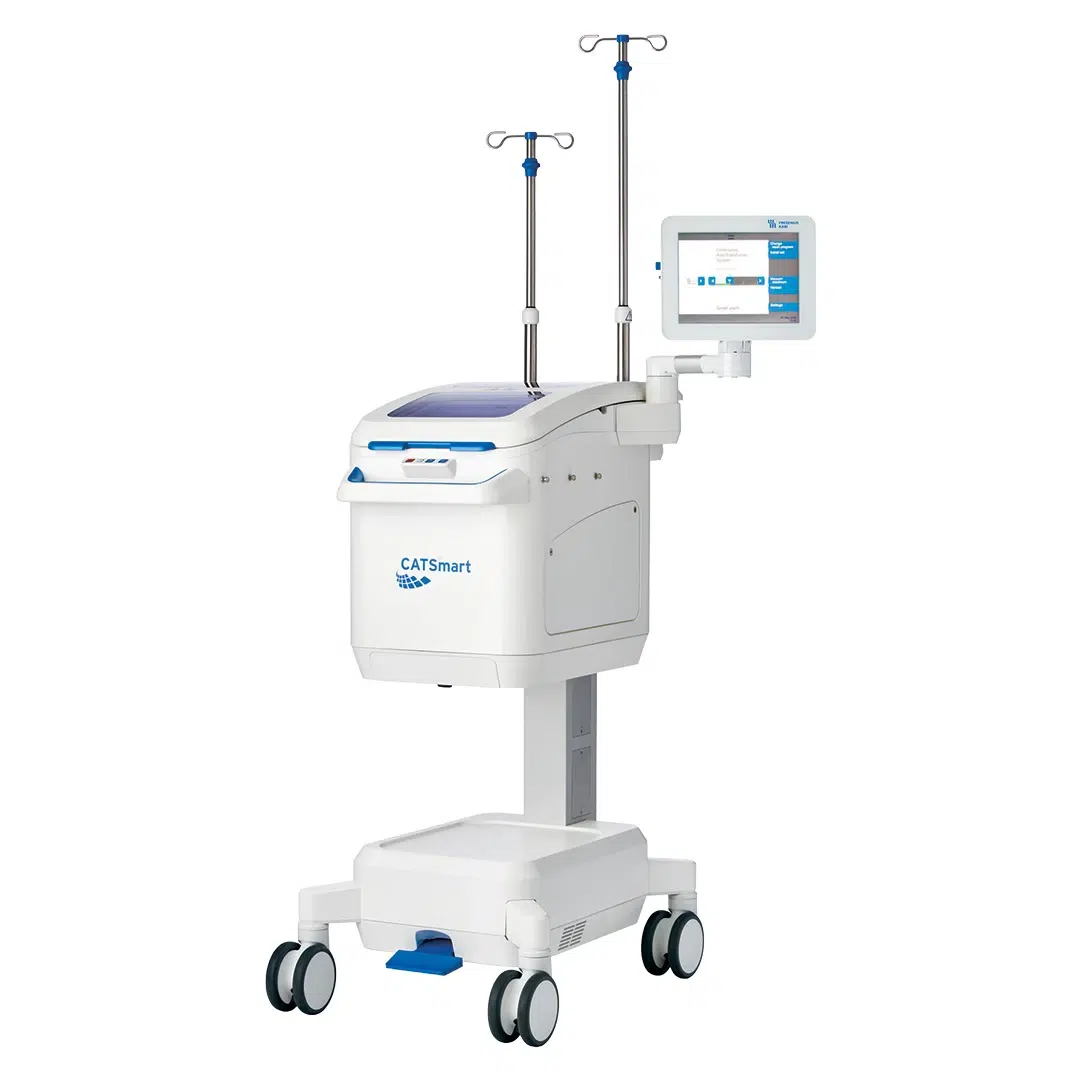

Fresenius Kabi CATSmart
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Fresenius Kabi CATSmart Features
The Fresenius Kabi CATSmart autotransfusion system is designed to collect, process, and return a patient’s own blood during surgical procedures, helping support blood management strategies in the operating room. Using automated processing technology, the CATSmart autotransfusion system separates and washes red blood cells to provide a consistent, high-quality output for reinfusion. Its user-friendly interface and guided workflow simplify operation, allowing clinical staff to efficiently manage intraoperative blood recovery with minimal manual intervention. The compact design and mobile platform make it easy to position within a variety of surgical environments, from operating rooms to specialty procedure suites.
- Automated Blood Processing: Collects, washes, and concentrates red blood cells.
- User-Guided Operation: Intuitive interface with step-by-step prompts helps streamline setup and operation.
- Flexible Processing Programs: Multiple program options allow customization based on procedure type and blood volume requirements.
- Compact, Mobile Design: Integrated stand and small footprint provide easy transport and positioning.
- Consistent Output Quality: Designed to produce reliable hematocrit levels and high-quality washed red blood cells for reinfusion.
Fresenius Kabi CATSmart Specifications
Dimensions
- Height (In transport position): 33.5 in (85 cm)
- Height (In highest working position with IV poles): 72.2 in (183.5 cm)
- Width: 20.9 in (53 cm)
- Depth: 32.3 in (82 cm)
- Weight: 181 lb (82 kg)
Centrifuge
- Speeds
- Centrifuge Rotor: nr = 0 – 1200 rpm ± 60 rpm
- Washing Chamber: nw = nr x 2 = 0 – 2400 rpm ± 120 rpm
- Direction of rotation: counter clockwise
- Mass of washing camber: m = 0.6 kg
Wash Programs
- Low Volume Wash: 25 mL/min
- Smart Wash: 20 – 40 mL/min
- Emergency Wash: 50 – 100 mL/min
Delivery Flow Rates
- Red Blood Cell Pump: 0 – 190 mL/min
- Shed Blood Pump: 0 – 350 mL/min
- Washing Solution Pump: 0 – 400 mL/min
IV Poles
- Maximum Load: 6.6 lb (3 kg) per hook
Vacuum Unit (Option)
- Dimensions (HxWxD): 6.5 in x 7.3 in x 13.6 in (16.5 cm x 18.5 cm x 34.5 cm)
- Weight: 9 lb (4.1 kg)
- Intake capacity without disposable: 42 l/min (1013 mbar)
- Vacuum (max) without regulation: < 130 mbar (1013 mbar)
Refurbished Fresenius Kabi CATSmart
Soma Tech Intl offers the Fresenius Kabi CATSmart Autotransfusion System up to 50% below OEM prices, providing the same service and warranty as a new. This autotransfusion system undergoes both technical and cosmetic refurbishment to ensure it performs and appears as if it were new. During the refurbishment of the CATSmart system, our in-house biomedical engineers, who are highly trained and certified to work on autotransfusion and blood recovery systems, carefully inspect and test the unit. If required, components are replaced to ensure all aspects of the Fresenius Kabi CATSmart meet the original manufacturer’s engineering specifications. This ensures the system delivers consistent, high-quality autologous red blood cell recovery using continuous-flow processing during surgical procedures.
Once the CATSmart autotransfusion system is fully operational, it proceeds through a detailed cosmetic restoration process. The system is thoroughly cleaned, minor scratches and dents are addressed, surfaces are refinished when necessary, and decals are replaced if needed. After completing this refurbishment process, the CATSmart both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Fresenius Kabi CATSmart is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl is actively seeking to purchase Fresenius Kabi CATSmart autotransfusion systems. If your facility is interested in selling a CATSmart or other autotransfusion or blood salvage systems, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Fresenius Kabi equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a CATSmart autotransfusion system or other blood recovery systems you would like to sell, send us a message.
