Baxter Hillrom TotalCare Bariatric Plus
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Baxter Hillrom TotalCare Bariatric Plus Therapy System Features

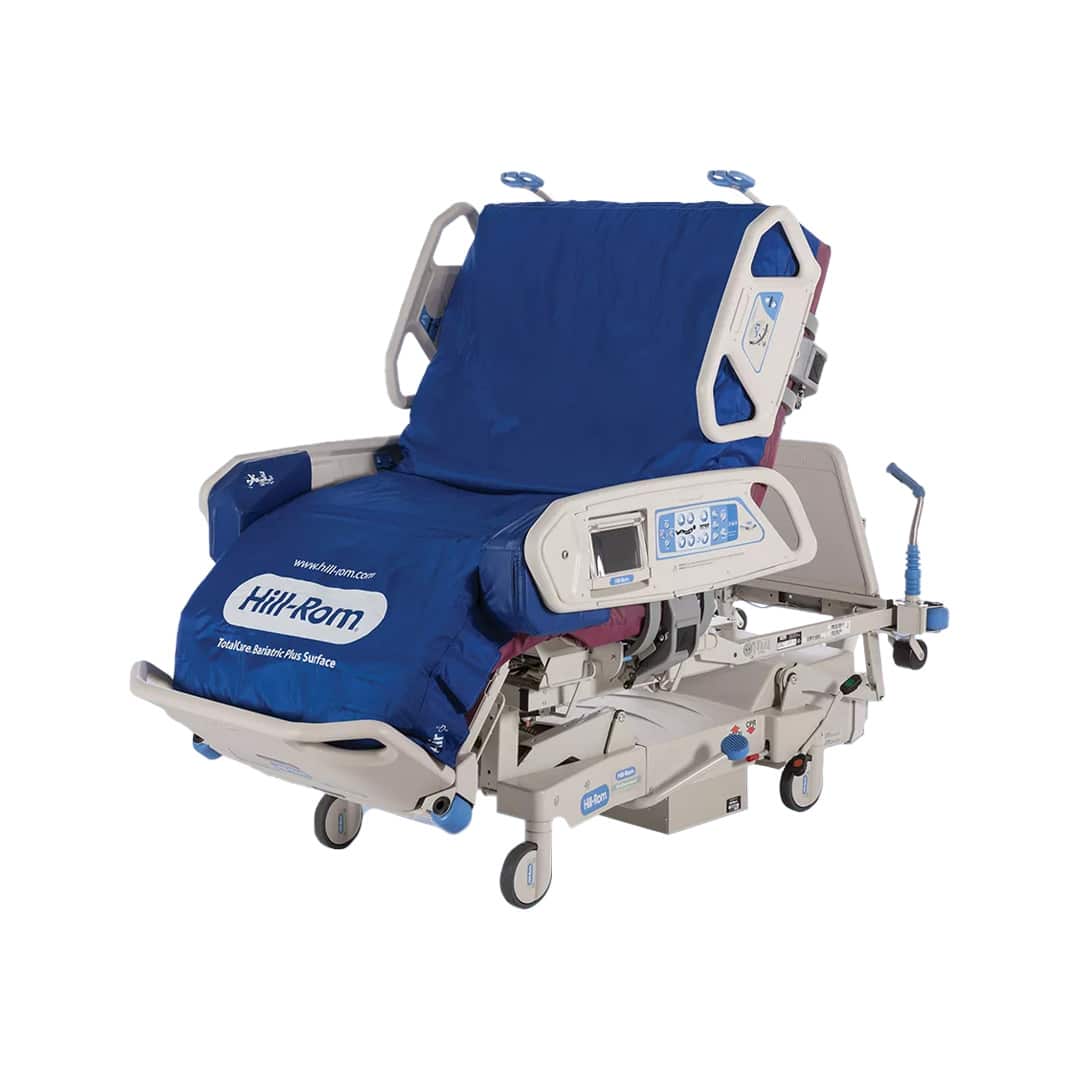

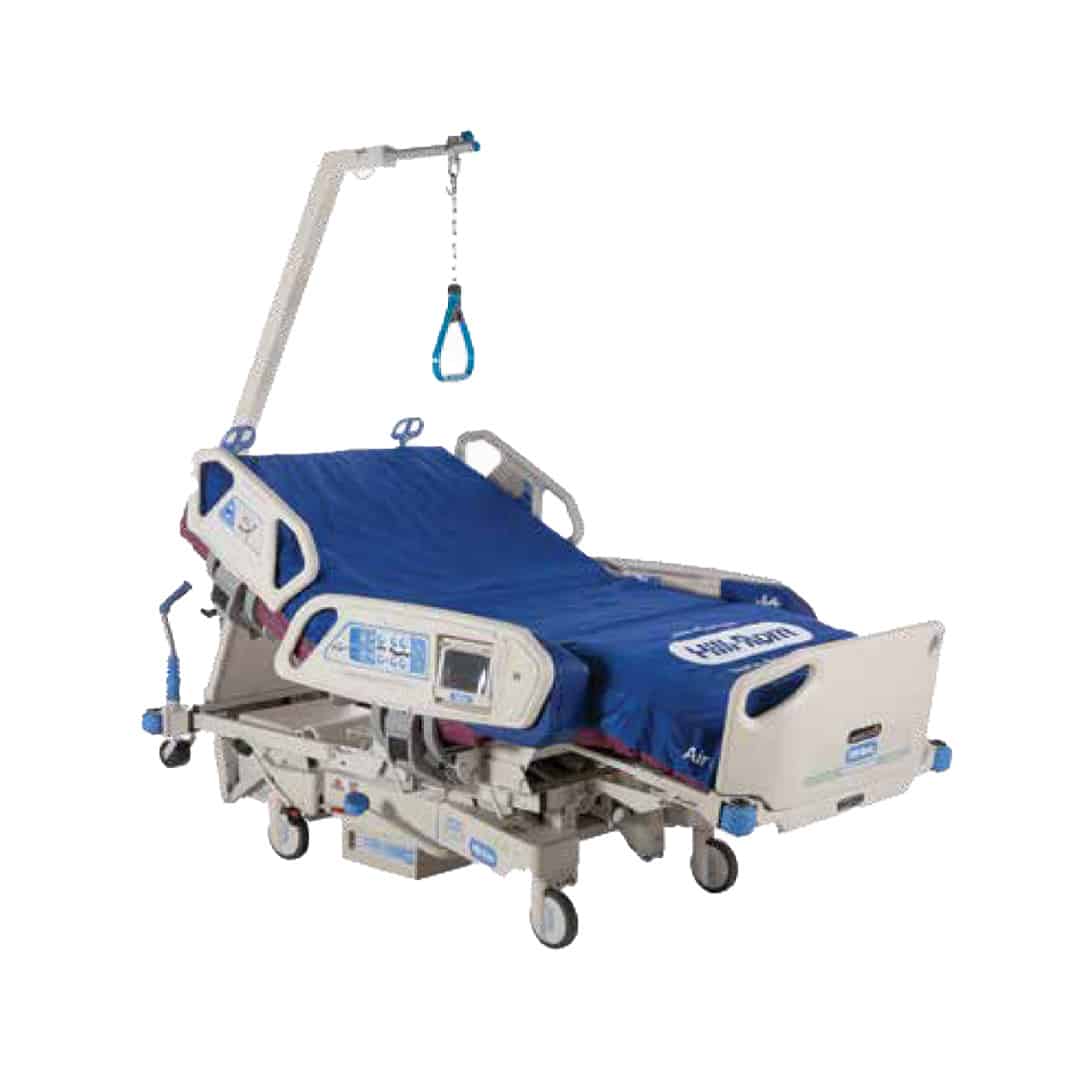

The Baxter Hillrom TotalCare Bariatric Plus Therapy System is a heavy-duty critical care bed built for the needs of larger patients. It supports up to 500 lbs (227 kg) and combines mobility, pressure relief, and positioning tools that help reduce caregiver strain and maintain patient comfort. The bed’s surface options help protect skin health, while powered mobility features make transport easier for hospital staff.
- MicroClimate Management: Uses Low Air Loss surfaces to help maintain dry skin conditions and offers options such as turn assist, percussion and vibration, and continuous lateral rotation therapy.
- Motorized Transport: The IntelliDrive XL system moves patients through the facility with minimal effort from caregivers.
- Chair Position & Seat Deflate: Converts smoothly from a flat surface to a seated position and includes a seat deflate mode to assist with transfers or repositioning.
- Built-In Weighing Scale: Provides weight readings within 1% accuracy (up to 400 lbs) and handles patients up to 500 lbs.
- Adjustable Length: Extends from 72 to 84 inches to fit different patient heights.
- Safety Features: Offers bed exit alerts, head angle alarms, and clear visual indicators to support safe patient handling.
- Siderail Controls: Simple controls on the siderails allow quick adjustments without leaving the bedside.
Baxter Hillrom TotalCare Bariatric Plus Specifications
Dimensions
- Overall Bed
- Maximum Overall Width: 44.5 in (113 cm)
- Maximum Overall Length: 81.5 in – 93.5 in (206.8 – 237.3 cm)
- Height (Sleep Deck to Floor): Low: 19 in (48.2 cm), High: 38 in (94 cm)
- Weight Capacity: 500 lbs (227 kg)
- Pressure Redistribution Foam
- Length: 72-84 in (182.7-213.4 cm)
- Width: 40 in (102 cm)
- Height: 7 in (17.8 cm)
- Microclimate Management (LAL) with Turn Assist/CLRT:
- Length: 72-84 in (182.7-213.4 cm)
- Width: 40 in (102 cm)
- Height: 11 in (27.9 cm)
Power
- Power Requirements: 120v, 60 cycle AC
- Fuse, Maximum Current: 15A, 9.9A
- Safety Listing: UL60601-1
Bed Angles
- Head Section: 0° – 75°
- Knee Section: 0° – 20°
- Max Trendelenburg: 15°
- Reverse Trendelenburg: 20°
Caster & Braking System
- Caster Diameter: 5 in (12.7 cm)
- Four Wheel Braking: Yes
- Steer and Lock Both Rolling and Swivelling: Yes
Scale System
- Accuracy: 1% of patient weight (up to 400 lbs)
- Scale Weight Capacity: 500 lbs (227 kg)
Refurbished Baxter Hillrom TotalCare Bariatric Plus Therapy System
Soma Tech Intl offers the Baxter Hillrom TotalCare Bariatric Plus Therapy System at up to 50% below OEM pricing, backed by the same service and warranty as new. Each bed is both technically and cosmetically restored to full working order. During refurbishment, the unit is thoroughly inspected and tested by Soma’s in-house biomedical engineers who specialize in therapy and critical care equipment. Any worn or nonfunctional components are replaced so the bed performs to original manufacturer standards.
After technical restoration, the bed receives a complete cosmetic renewal — it is cleaned, repaired, repainted, and fitted with new decals as needed. Soma Tech Intl follows ISO 13485 certified processes for every system it refurbishes. Before shipment, the TotalCare Bariatric Plus passes a final quality review to confirm it is patient-ready. For more information about refurbished therapy systems, contact Soma at soma@somatechnology.com or 1-800-438-7662.
Soma Tech Intl also purchases pre-owned therapy systems. If your facility is selling a Baxter Hillrom TotalCare Bariatric Plus, our purchasing team can help you receive fair market value. Soma is HIPAA-compliant and arranges all logistics so equipment arrives in the same condition it left your facility. Trade-in options are available—contact us to learn more.
