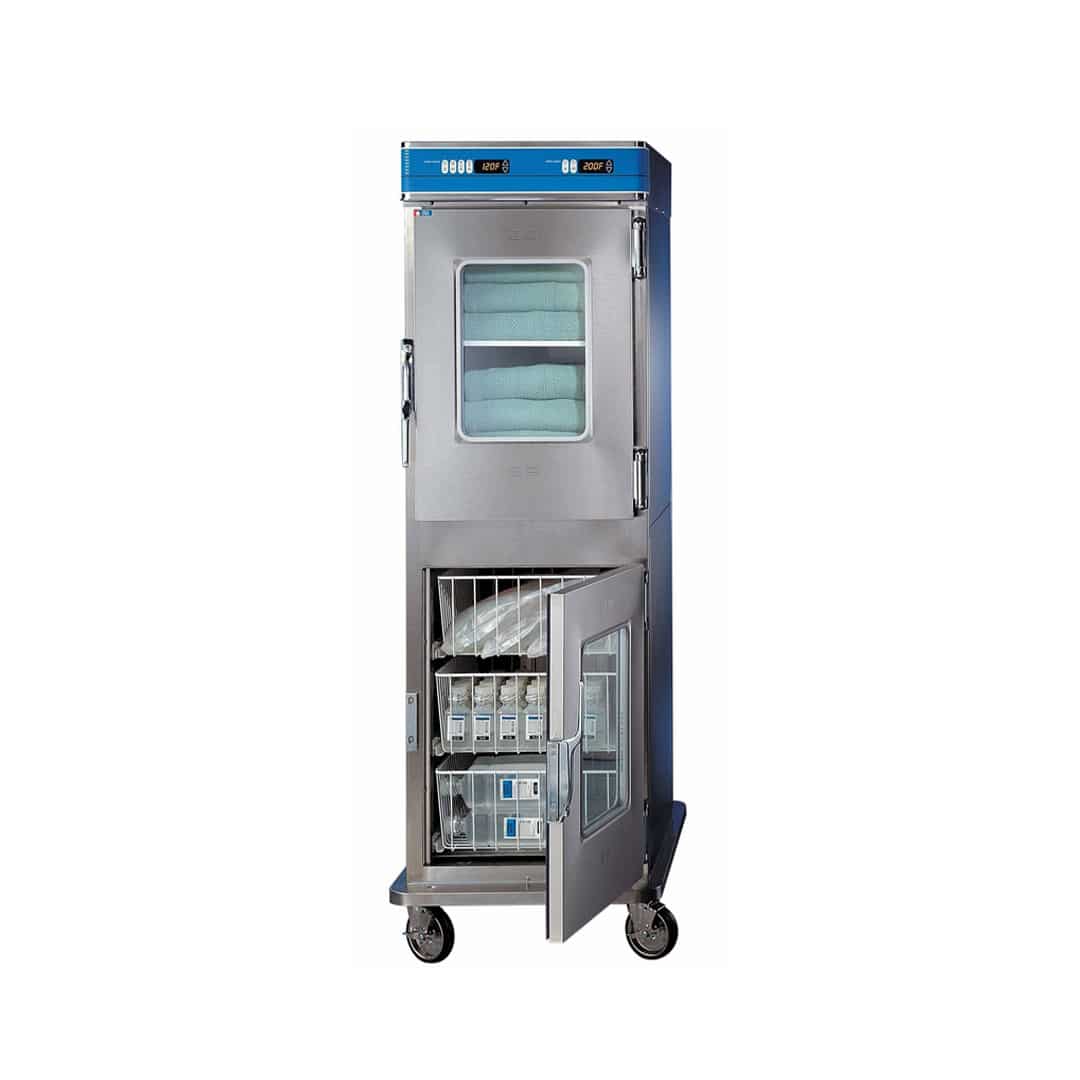

Pedigo P-2140
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Pedigo P-2140 Features
The Pedigo P-2140 is a dual-purpose warming cabinet built to handle both blanket warming and fluid warming in one unit. It contains two separate chambers with independent electronic controls for straightforward temperature adjustment. The upper chamber uses Halo Heat low-heat-density elements to warm blankets evenly, while the lower chamber includes dedicated settings for irrigation and injection fluids. The cabinet’s stainless steel frame, optional WarmWatch recording system, and large internal capacity make it practical for busy clinical areas.
- Dual-Chamber Design: Holds a blanket warming section above a three-basket fluid chamber to save space.
- WarmWatch Data Recording: Optional feature logs chamber temperature each hour for up to six months and can be exported through USB.
- Programmable Timer: The blanket chamber includes a 24-hour timer for scheduled on/off cycles.
- High-Capacity Fluid Storage: Three epoxy-coated baskets in the lower chamber, each with a 24-liter limit.
- Dual Fluid Modes: Separate settings for irrigation fluids (98°–150°F / 37°–66°C) and injection fluids (98°–110°F / 37°–43°C).
- Mobility Features: Full-perimeter bumper and four 5-inch heavy-duty casters, two with locks.
- Forced-Air Circulation: Fans in each chamber move air to avoid hot or cold spots within the cabinet.
Pedigo P-2140 Specifications
Dimensions
- Width: 33.10 in (840.9 mm)
- Height: 67.00 in (1702.6 mm)
- Depth: 28.80 in (730.8 mm)
Power
- Voltage: 120 VAC
- Frequency: 50/60 Hz, 1 Phase
- Power Consumption: 1920 Watts, 16.0 Amps
- Plug Type: NEMA 5-20P Hospital Grade
- Mode of Operation: Continuous
Capacity
- Blanket Chamber: 1 Shelf, includes blanket support assembly.
- Fluid Chamber: 3 Baskets, each with a 24-liter maximum capacity.
Environmental Conditions
- Operating Temperature: 60°F to 90°F (15°C to 32°C)
- Storage Temperature: -40° to +159°F (-40° to +70°C)
- Storage Relative Humidity: 10% to 100%, including condensation
Temperature Performance
- Fluid Chamber Accuracy: Within +0/-2°F (+0/-1.1°C) for 98–110°F; Within +0/-3°F (+0/-1.7°C) for 110–150°F.
- Blanket Chamber Accuracy: ±10°F (±6°C).

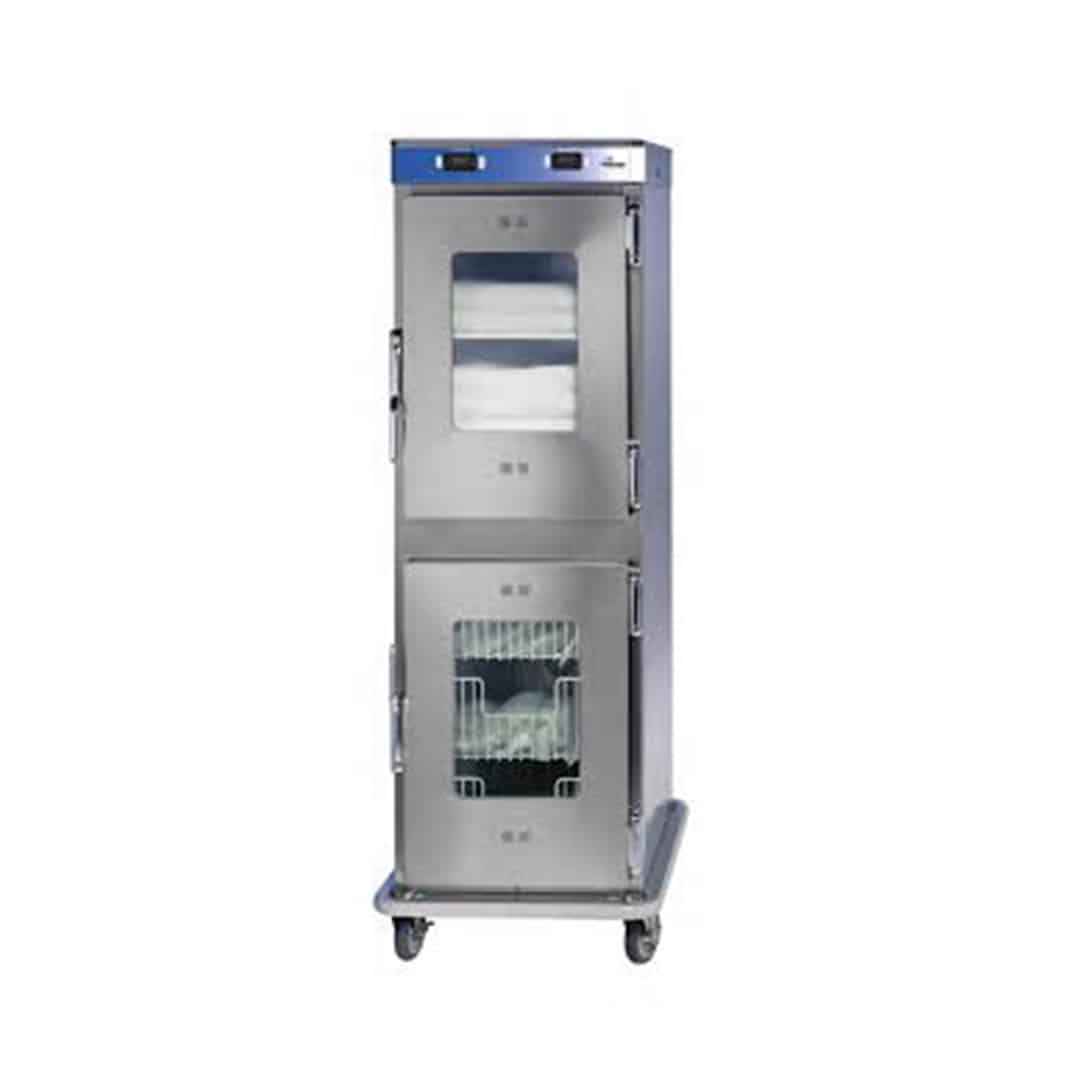

Refurbished Pedigo P-2140 Blanket Warmers
Soma Tech Intl offers the Pedigo P-2140 Blanket Warmers up to 50% below OEM prices with the same service and warranty as new. The P-2140 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the P-2140, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on blanket warmers. If necessary, parts are replaced to ensure that all aspects of the P-2140 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the P-2140 is functioning like new, it undergoes a specialized cosmetic restoration. The warmer is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the P-2140 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished blanket warmer, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase blanket warmers. If you or your facility are looking to sell your Pedigo P-2140, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
