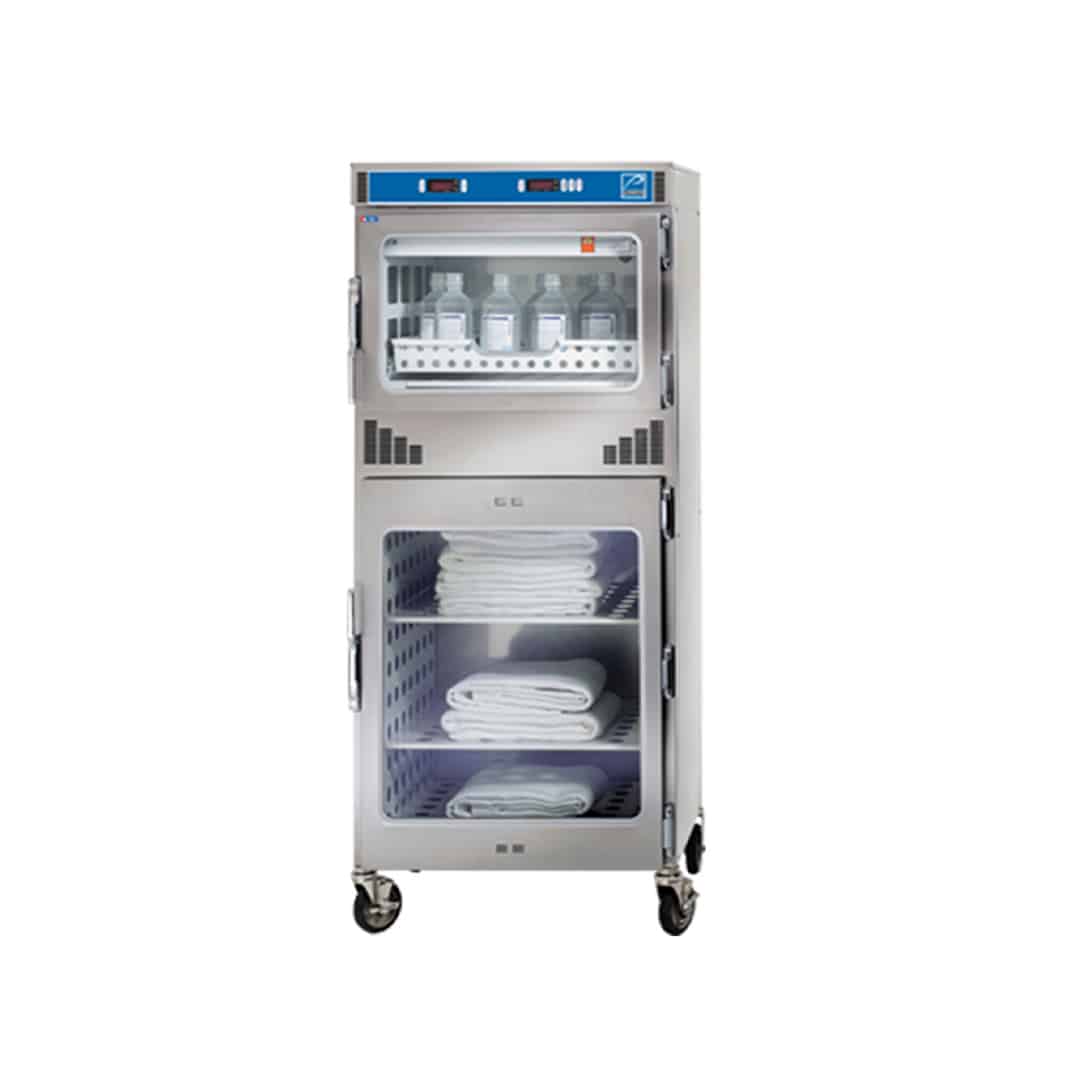

Pedigo P-2145
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Pedigo P-2145 Features
The Pedigo P-2145 is a dual-chamber warming cabinet used for heating blankets and medical fluids in hospitals and clinics. It has separate control systems for each chamber and a built-in WarmWatch display that tracks and records temperature data. The cabinet is made of stainless steel and includes casters for easy movement around the facility.
- Large-Capacity Layout: Includes a 38-liter fluid section and a two-shelf blanket area for high patient turnover.
- WarmWatch Display: Shows set and actual temperatures, with USB export for temperature logs.
- Timed Blanket Chamber: Operates between 98–200°F (37–93°C) with an optional 24-hour on/off timer.
- Dual Fluid Settings: Independent options for Irrigation (98–150°F / 37–66°C) and Injection (98–110°F / 37–43°C).
- Halo Heat® Design: Uses low-heat cables along the interior for even heating.
- Steel Construction: Made from 20-gauge stainless steel with a bumper and locking casters.
- Air Mixing System: Internal fans circulate air to maintain uniform temperature inside the chambers.
Pedigo P-2145 Specifications
Dimensions
- Width: 29.40 in (746.8 mm)
- Height: 84.16 in (2137.7 mm)
- Depth: 27.29 in (693.2 mm)
Power
- Voltage: 120 VAC
- Frequency: 50/60 Hz, 1 Phase
- Power Consumption: 1920 Watts, 16.0 Amps
- Plug Type: NEMA 5-20P Hospital Grade
- Mode of Operation: Continuous
Capacity
- Blanket Chamber: 2 Shelves, includes blanket support assembly.
- Fluid Chamber: 1 Basket with a 38-liter maximum capacity.
Environmental Conditions
- Operating Temperature: 60°F to 90°F (15°C to 32°C)
- Storage Temperature: -40° to +159°F (-40° to +70°C)
- Storage Relative Humidity: 10% to 100%, including condensation
Temperature Performance
- Fluid Chamber Accuracy: Within +0/-2°F (+0/-1.1°C) for 98–109°F; Within +0/-3°F (+0/-1.7°C) for 110–150°F.
- Blanket Chamber Accuracy: ±10°F (±6°C).

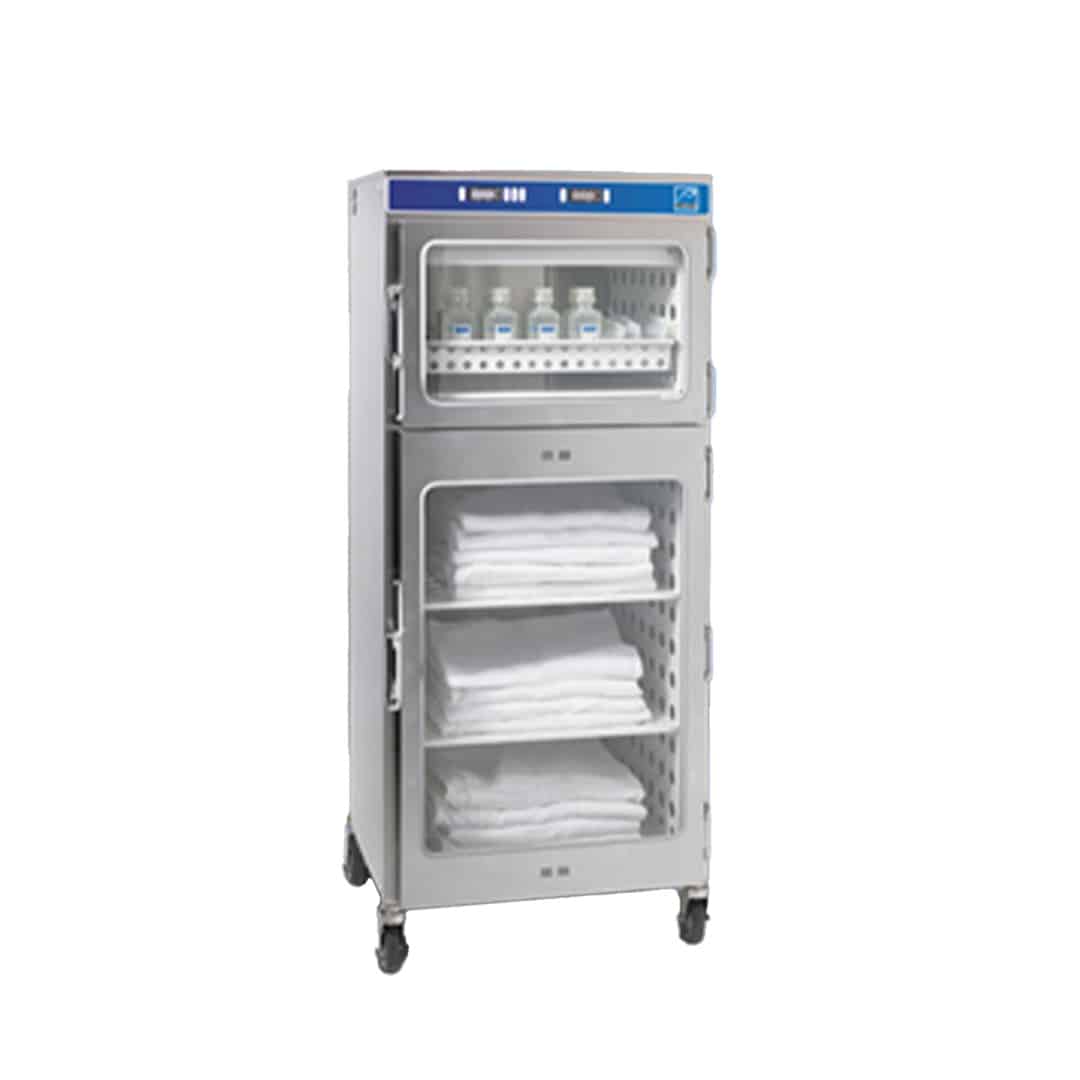

Refurbished Pedigo P-2145 Blanket Warmers
Soma Tech Intl offers the Pedigo P-2145 Blanket Warmers up to 50% below OEM prices with the same service and warranty as new. The P-2145 is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the P-2145, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on blanket warmers. If necessary, parts are replaced to ensure that all aspects of the P-2145 meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the P-2145 is functioning like new, it undergoes a specialized cosmetic restoration. The warmer is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the P-2145 is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished blanket warmer, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase blanket warmers. If you or your facility are looking to sell your Pedigo P-2145, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
