GE OEC Brivo Prime
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
OEC Brivo Prime Features

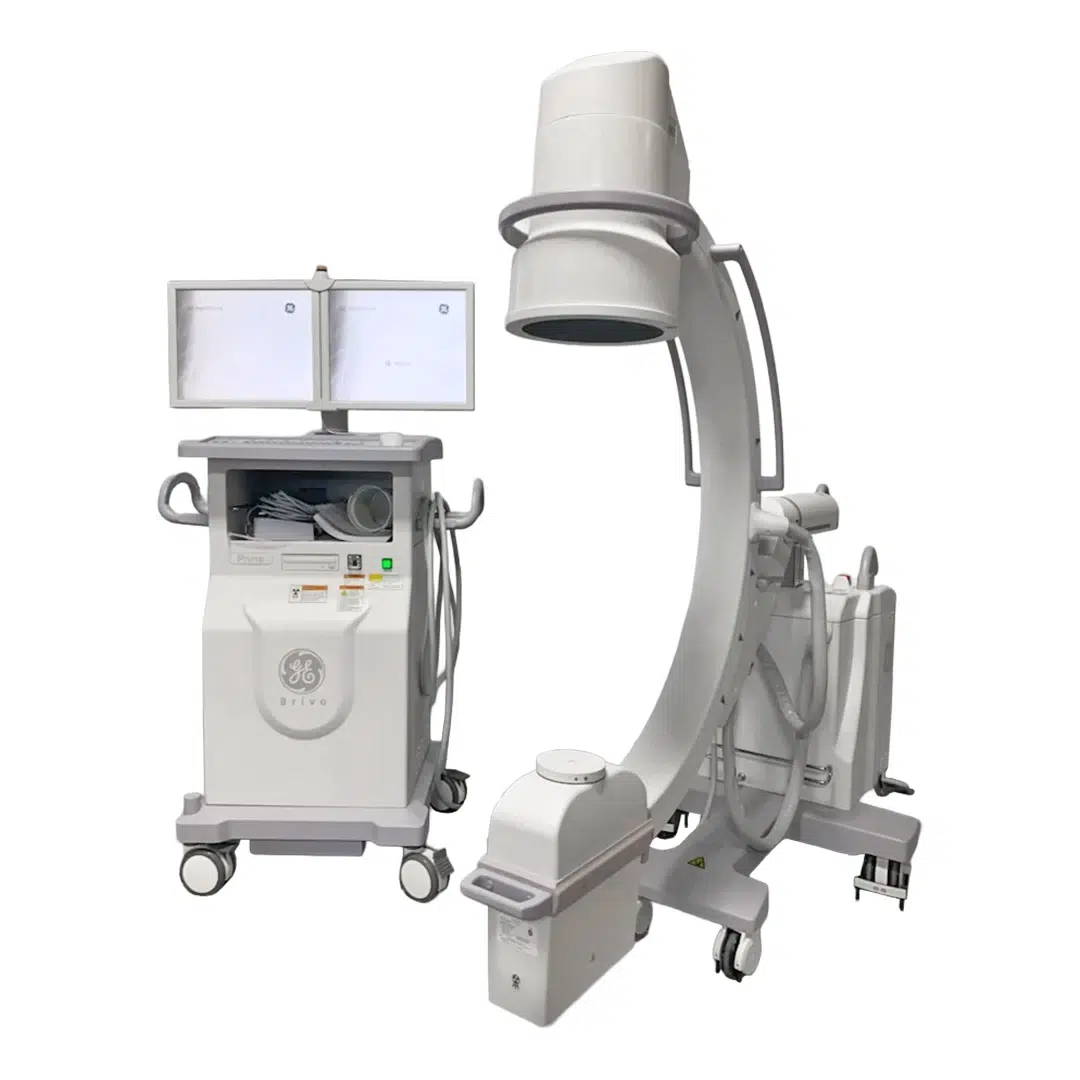

The GE OEC Brivo Prime is a mobile C-arm used for real-time X-ray imaging during surgery. It moves on wheels and combines motorized vertical travel with manual orbital, lateral, and wig-wag positioning, so the arm can be angled to fit the procedure. The generator runs up to 110kV and covers several fluoro modes, including low dose and pulsed fluoro, plus a digital spot mode for still images. The image intensifier switches between three magnification levels, and the attached camera captures at 1K x 1K resolution. Images show on a single 19-inch LCD monitor with tools like zoom, edge enhancement, and last image hold, and the system stores up to 100,000 images.
- Full C-Arm Positioning: Orbital rotation, lateral rotation, wig-wag, and horizontal cross-arm movement let the C-arm angle for different views.
- Motorized Vertical Column: Raises and lowers the C-arm with up/down switches on the control panel.
- Multiple Fluoro Modes: Includes normal, high-level, low dose, pulsed, and digital spot imaging.
- Three-Level Magnification: Image intensifier switches between 9″, 6″, and 4.5″ fields of view.
- Built-In Image Storage: Holds up to 100,000 images with tools like zoom, edge enhancement, and last image hold.
GE OEC Brivo Prime Specifications
C-Arm Dimensions
- Height: 67.1 – 84.6 in (170.5 – 215 cm)
- Width: 30.7 in (78 cm)
- Depth: 70.3 in (179 cm)
- Weight: 573 lb (260 kg)
Workstation Dimensions
- Height: 65.7 in (167 cm)
- Width: 35.4 in (90 cm)
- Depth: 25 in (64 cm)
- Weight: 375 lb (170 kg)
C-Arm Movement
- Source Image Distance (SID): 39.3 in (100 cm)
- Horizontal Travel: 8 in (20 cm)
- Vertical Travel: 17.5 in (44.5 cm)
- Orbital Rotation: 120°
- Lateral Rotation: ± 205°
- Wig-Wag: ± 12.5°
Technology
- 1k x 1k digital imaging system for high-resolution images
- 9 in image intensifier designed for detailed fluoroscopic imaging
- Intuitive controls for efficient operation during procedures
- DICOM connectivity with optional DVI interface
- Internal storage capacity for up to 100,000 images
- Integrated data protection features with UPS backup
Specifications
- 9 in image intensifier mobile C-arm
- 360° digital image rotation for real-time and stored images
- 40 kHz high-frequency generator
- 2.2 kW monoblock X-ray generator
- Stationary anode with dual focal spot
- 40–110 kVp operating range
- 19 in medical-grade anti-glare monitor(s)
- Normal, Low Dose, High Level Fluoroscopy, and Pulsed Fluoroscopy modes
- USB connectivity and integrated DICOM storage
- Optional CD/DVD writer
Refurbished GE OEC Brivo Prime
Soma Tech Intl offers the GE OEC Brivo Prime C-arm up to 50% below OEM prices, with the same service and warranty as new equipment. This system goes through both technical and cosmetic refurbishment so it performs and looks like new. During the refurbishment of the Brivo Prime, our in-house biomedical engineers, who are trained and certified to work on C-arms, carefully inspect and test the imaging chain and mechanical components, replacing parts as needed so every aspect of the unit meets the original manufacturer’s engineering specifications. Once it’s fully operational, the Brivo Prime moves into a detailed cosmetic restoration process: thorough cleaning, correction of minor scratches and dents, surface refinishing where needed, and decal replacement if required. After all of that, it functions and presents like new.
Soma Tech Intl is ISO 13485:2016 certified, so strict quality control standards apply to every piece of capital medical equipment we sell. Before the GE OEC Brivo Prime is labeled patient-ready and prepared for shipment, it goes through a final quality assurance inspection to confirm proper operation and performance.
Soma Tech Intl’s procurement team is also always looking to purchase GE OEC Brivo Prime C-arms and other used GE imaging equipment. If your facility has a Brivo Prime or similar model to sell, get in touch and our purchasing department will walk you through the process from start to finish. Selling directly to Soma cuts out the middleman, so your facility gets the best possible value for its used or pre-owned equipment. We’re 100% HIPAA compliant as well, meaning your equipment arrives at our facility in the same condition it left yours. Soma also offers trade-in credit, so if you have a Brivo Prime or any other used medical equipment to sell, just send us a message.
