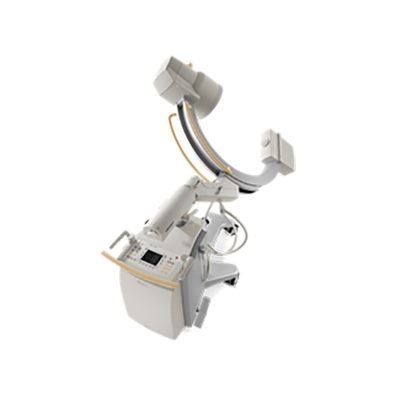

Philips BV Pulsera C-Arm

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications

Philips BV Pulsera Features

The Philips BV Pulsera C-Arm is a multi-application mobile X-ray imaging system for the most challenging interventional procedures in Pain Management, General, Orthopedic, Vascular, Neurovascular, and Cardiac surgeries. The BV Pulsera is a C-arm with a powerful fluoroscopy system and high-resolution CCD camera, outstanding image quality with low X-ray dosage, crisp, clear images, and superior penetration power.

Clear Visualization

The Philips Pulsera features a full range of radiation management protocols that allow low X-ray doses even during lengthy procedures, while still providing excellent image quality. The Pulsera comes equipped with unique technology to help maintain clear visualization of dense anatomy and complex vasculature:

  • High Power Pulsed Exposure visualizes fast-moving anatomy with outstanding image quality for a virtually unlimited amount of time.
  • Unique BodySmart software promotes first-time right imaging and dose efficiency. It delivers consistently superb image contrast by adapting the measuring field to the area of interest.
  • Automatic contrast and brightness offer single-touch adjustment of contrast/brightness to the ROI to enhance details in real-time.
  • High-definition fluoroscopy provides full contrast for the steepest projections, like lateral hip exams.
  • Digital Exposure (Sharp Shot) mode allows a single high-quality image to be taken for archiving and printing.
  • Ortho Plus applies extra X-ray power to visualize challenging regions of interest with normal or obese patients.

Philips BV Pulsera C Arm Specifications

X-Ray System

Specialty Packages Available

  • Extended processing.
  • Vascular functions.
  • Extended vascular functions.
  • Cardiac Pulsed functions.


  • 80 kHz High frequency.
  • 7.5 kW full-wave.
  • Up to 120 kVp.
  • Up to 60 mA for radiographic film exposures.
  • Continuous fluoro boost mode up to 20 mA.
  • Pulsed fluoro mode.
  • Pulsed fluorography mode up to 60 mA.
  • Full power from outlet:
    • 50 Hz or 60 Hz.
    • 100V-20A to 240V-10A.

X-Ray Tube

  • Rotating anode X-ray tube.
  • Focal spots: 0.3 mm and 0.6 mm.
  • Anode heat capacity: 300,000 HU.
  • Anode cooling rate: 70,000 HU/min.
  • Housing heat capacity: 1,900,000 HU.
  • Anode diameter: 2.8 in.
  • Anode angle: 10°.


  • Iris collimation with dual opposing lead shutters allows elliptical, round and rectangular collimation.
  • Minimum beam size < 5 X 5 cm2.
  • Iris and shutters are continuously variable.
  • All functions are remotely controlled from the C-Arm control panel.

Fluoroscopy Mode

  • Focal spot: 0.3 mm and 0.6 mm.
  • kVp range: 40 – 120 kVp.
  • mA range: 0.2 – 20 mA continuous High Definition fluoro boost mode.
  • Auto and manual modes.
  • Continuous or Pulsed operation.
  • APF varies mA, kVp, and camera gain.
  • User-specific APF tables.

Pulsed Fluoroscopy Mode

  • Half Dose Fluoroscopy.
  • Quarter Dose Fluoroscopy.
  • Focal spot: 0.6 mm.
  • kVp range: 40 – 120 kVp.
  • mA range: 0.4 – 12 mA.
  • Pulse rate: 6.25 or 12.5 pulses per second.
  • Pulse width: 11 to 37 milliseconds.
  • Computer-controlled APF, mA, kVp, and camera gain.

Pulsed Fluorography Mode

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 110 kVp.
  • mA range: Up to 60 mA.
  • Pulse rate: 3 to 30 pulses per second. (optional)
  • Pulse width: 8.0 / 9.5 / 11.1 milliseconds.
  • Computer-controlled camera iris, mA, kVp, & camera gain.

Digital Exposure Mode

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 110 kVp.
  • mA range: 1.0 – 75 mA.

Radiographic Mode

  • Focal spot: 0.6 mm.
  • kVp range: 40 – 120 kVp.
  • Fixed 60 mA.
  • 0.6 mm – mAs range: 3.2 – 125 mAs.

Video Imaging System

Image Intensifier

  • 9 in Image Intensifier
    • Tri-mode 9 in/7 in/5 in image intensifier
      • 9 in.: 1.6 lp/mm
      • 7 in.: 2.1 lp/mm
      • 5 in.: 2.9 lp/mm
    • DQE: 65% (typical)
  • 12 in Image Intensifier (optional)
    • Tri-mode 12 in/9 in/7 in image intensifier
      • 12 in.: 1.2 lp/mm
      • 9 in.: 1.4 lp/mm
      • 7 in.: 2.0 lp/mm
    • DQE: 65% (typical)

Video Camera

  • High-resolution CCD camera.
  • 525 line/frame.
  • Full frame capture.
  • 360° motorized rotation.
  • Left-right image reversal.
  • Top-bottom image reversal.
  • Negative mode.
  • Computer-controlled features: (optional)
    • Gain.
    • Blanking.
    • Camera iris.

Video Monitors

  • Dual 17 in high resolution, anti-glare, anti-static.
  • Ambient room light sensor.
  • Multi-LED X-ray “ON” indicator.

Hardcopy Options

  • Thermal printer. (optional)
  • DICOM. (optional)
  • Image Capture Device. (optional)
  • Laser aiming device. (optional)

C-Arm Dimensions

  • Height: 71 / 91 in. (1805 / 2305 mm)
  • Width: 35 in. (880 mm)
  • Length: 76 in. (1930 mm)
  • Weight: 695 lbs 315 kg.

Workstation Dimensions

  • Height: 69 in (1760 mm)
  • Width: 32 in (800 mm)
  • Depth: 37 in (925 mm)

Refurbished Philips BV Pulsera C-Arms

Soma Technology, Inc. offers Refurbished Philips BV Pulsera C-arms up to 50% below OEM prices with the same service and warranty as new. The BV Pulsera C-arm is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on Philips Pulsera, the mobile X-ray system is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Philips C-arms. If necessary, parts are replaced to make sure that all aspects of the C-arm are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Philips BV Pulsera is working like new it undergoes a special cosmetic restoration process. The Pulsera is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the mobile C-arm functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the C-arm is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Philips BV Pulsera C-arms contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase Philips BV Pulsera C-arms. If you or your facility is looking to sell your Philips BV Pulsera, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned BV Pulsera C-arms to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Techn is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Technology also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our C-arms?

Soma Tech Intl offers a wide range of C-Arms. If you have any questions about any of our C-arm machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your C-arms? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
