Siemens ARCADIS Orbic 3D

Quotes in less than 24 hours Download Specifications

Siemens ARCADIS Orbic 3D Features

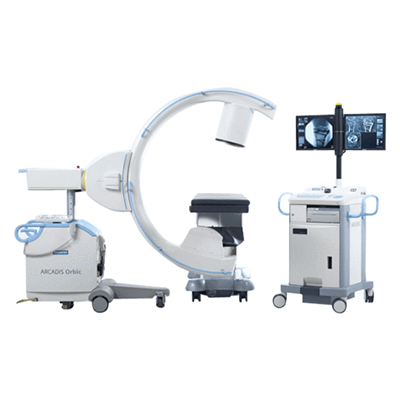

The ARCADIS Orbic 3D mobile C-arm system provides fast scan times matched with enhanced image quality. The ARCADIS generates 2D images of the human anatomy in only 30 seconds in 1K2 resolution or 60 seconds for 100 2D images. ARCADIS Orbic 3D C-arm machines can be equipped with a direct 3D navigation interface NaviLink 3D, or choose the integrated optical navigation platform NaviVision 3D.

ARCADIS Orbic’s software is designed to support the entire clinical workflow, from patient registration to image documentation. Patient data can seamlessly be transferred from the hospital information system to your C-arm worklist. Two distinctive features of the ARCADIS Orbic mobile C-arm are true isocentric orbital movement and 190° orbital movement with 95° overscan. Due to this technology, this unit does not require horizontal or vertical readjustment in order to keep the viewing area centered and focused.

Siemens ARCADIS Orbic 3D Specifications


  • Diameter, cm (in) (Wheels) 23, 15 (9, 6)
  • H x W x D of C-arm Frame, cm (in) (Image Processing and Storage): 183 x 80 x 215 (72 x 31.5 x 84.5)
  • Weight, kg (lb) (Display): 348 (765) chassis, 190 (418) monitor cart
  • Cassette Holder Sizes (Focal spot size, mm): 24 x 3024 x 30 cm
  • Free Space, cm (in) (C-Arm): 78 (31)
  • Depth, cm (in) (PA Gantry): 73 (29)
  • Panning Movement (C-Arm) 10
  • Rotation (C-Arm) 190 ( 95)
  • Horizontal Travel, cm (in) (C-Arm): 20 (7.9)
  • Pivot Rotation, (C-Arm) 190


  • Isocentric C-arm movement with integrated cables and electromagnetic brakes
  • Orbital movement 190° (± 95°)
  • Angulation ± 190°
  • Horizontal movement 20 cm (7.9”)
  • Immersion depth 73 cm (28.7”)
  • Swivel range ± 10°
  • Vertical travel 40 cm (15.7”), motorized
  • Source-I.I. distance 98 cm (38.5”)
  • Free space 78 cm (30.7”)

X-ray generator/tube

  • Max. pulsed output 2.3 kW
  • Inverter control frequency 15 kHz to 30 kHz
  • kV range 40 kV to 110 kV
  • Fluoroscopy 0.2 mA to 15.2 mA (max. 1000 W)
  • Digital Radiography 0.2 mA to 23 mA (max. 1000 W) <?li>
  • Pulsed Fluoroscopy up to 23 mA <?li>
  • Pulse width min. 7 ms Pulse rate up to 8 f/s, up to 15 f/s*
  • Power Mode enables temporary max. output in continuous fluoroscopy and pulsed fluoroscopy

Operating Data

  • Power Requirements: 100 V, 110 V, 120 V, 127 V, 200 V, 230 V, 240 V, (± 10%), 50/60 Hz (± 1 Hz)
  • Device Fusing (Internal): 100 V to 127 V 20 A slow-blow fuse 200 V to 240 V 15 A slow-blow fuse

Environmental Conditions

  • Temperature range + 15°C to + 35°C
  • Relative humidity 15% to 75%, non-condensing
  • Barometric pressure 700 hPa to 1060 hPa


  • Pulses Per Sec (Monitor): p to 15
  • Ma Range (Imaging System): 0.2 – 23
  • Pulsed Fluoroscopy (X-Ray Generator): Yes
  • Kv Range (X-Ray Generator): 40
  • Aec (X-Ray Generator): mAs
  • Tube Power Rating, kw @ 100 kvp (Maximum Output): 2.3
  • Power Requirements: 110-240 VAC

Video / Images

  • Monitor Size, cm (in) (Maximum Object): 18 dual TFT flat-panel monitors
  • H x W x D of C-Arm Frame, cm (in) (Image Processing and Storage): 183 x 80 x 215 (72 x 31.5 x 84.5)
  • Video Storage (Image Processing and Storage): Digital memory digital memory, disk
  • Image Matrix Size (Image Processing and Storage): 2.3
  • Last Taken Image hold (Image Processing and Storage): Yes
  • Frame Integration (Image Processing and Storage): 0-32 frames
  • Max. # of Images (Image Processing and Storage): 10,000 on hard disk; ~300 on CD; both are standard

Refurbished The Siemens ARCADIS Orbic 3D C-arm

Soma Tech Intl offers the Siemens ARCADIS Orbic 3D C-arms up to 50% below OEM prices with the same service and warranty as new. The Mindray Siemens ARCADIS Orbic 3D is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Siemens ARCADIS Orbic 3D, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on C-arms. If necessary, parts are replaced to make sure that all aspects of the Siemens ARCADIS Orbic 3D are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Siemens ARCADIS Orbic 3D is working like new it undergoes a special cosmetic restoration process. The Siemens ARCADIS Orbic 3D is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Siemens ARCADIS Orbic 3D is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished Siemens ARCADIS Orbic 3D C-Arms contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Siemens ARCADIS Orbic 3D If you or your facility is looking to sell your Siemens ARCADIS Orbic 3D, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Siemens ARCADIS Orbic 3D takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!


Questions about our C-arms?

Soma Tech Intl offers a wide range of C-Arms. If you have any questions about any of our C-arm machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your C-arms? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
