Medrad Mark V ProVis

Quotes in less than 24 hours Download Specifications

Medrad Mark V ProVis Features

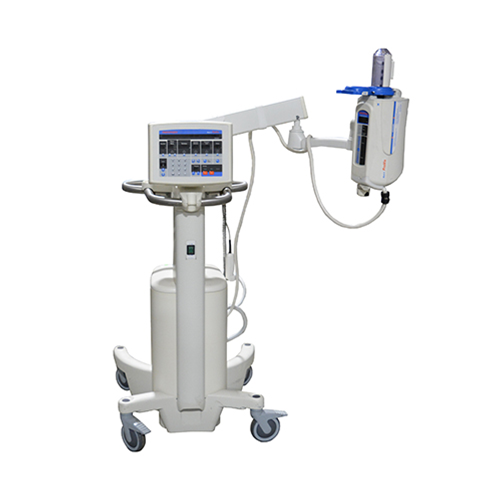

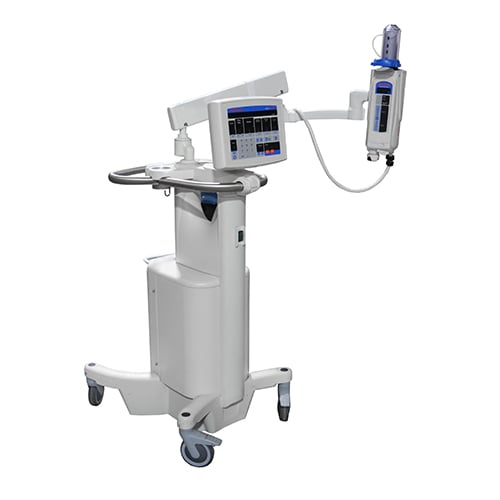

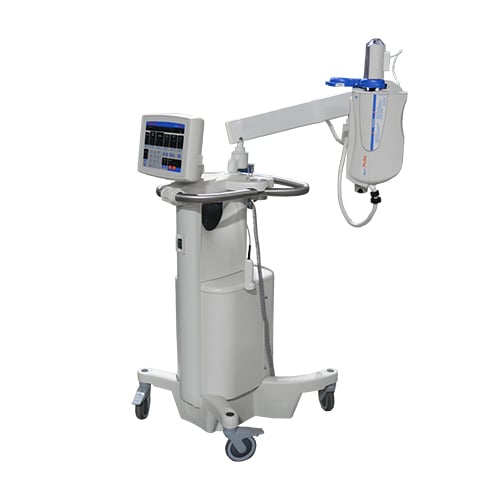

The Medrad Mark V ProVis Is an Angiographic injection system. The Medrad System injects Contract mediums or fluid solutions intravenously into the human body. The Mark V ProVis Comes with a microprocessor that can help prevent overinjections, overflow, and overpressure in the patient. The ProVis injection system offers a rotating and tilting control panel and articulation arm for the injector head. With an easy-to-use control panel, you can select various speeds to make for faster loading and easier delivery of the injection. The Mark V ProVis can be used in both Cardiology and angiography laboratories and can be used on both adult and pediatric patients.

  • Height adjustable arm for ease in loading syringes
  • Rotating, and tilting the control panel makes it easy to see and read from almost any position in the room
  • Multiple syringe configurations (60/150 ml – 150/150 ml – 200/200 ml) help to match the right syringe size with the patient and procedure
  • Floor, ceiling, or wall mount options add flexibility
  • The segmented control panel is easy to learn and operate
  • “One Touch” enable button and variable speed control for fast loading and easy delivery

Medrad Mark V ProVis Specifications


  • Height: 10.5 in (27 cm)
  • Width: 19 in (48 cm)
  • Depth: 12.6 in (32 cm)
  • Weight: 45 lbs. (20.4 kg)


  • Pedestal System: 213 lbs (97 kg)
  • Injector head: 21.5 lbs (9,8kg)
  • Pedestal System without head: 191.5 lbs (87,2 kg)
  • Control Room Console without head: 45 lbs (20,4 kg)
  • Remote Control Panel without cable: 10.5 lbs (4,8 kg)

Injector Head

  • Load Speed: forward or reverse 5-10 ml/sec.
  • Syringe Heater: 37°C (98°F) nominal
  • Syringes: Disposable: 60 ml, 150 ml or 200 ml
  • Selected Volume before each injection:
    • 1.5 ml with a 60 ml syringe
    • 2.5 ml with a 150 ml syringe
    • 4.0m ml with a 200 ml syringe


  • Single Use (Syringes): Yes
  • Type (Configuration): Angiographic
  • Power, VAC (Synchronization): 100-240
  • X-Ray Generator (Power Needed, VAC): Yes
  • Flow Capabilities mL/Sec: 0.3-50; 1-59 mL/min, 10-59 mL/hr
  • Capacity Range, mL: 1-60, 1-150, 1-200
  • Range, bar (psi) (Output Pressure): 6-82 (100-1,200)
  • Drive system (Configuration): Electromechanical

Refurbished The Medrad Mark V ProVis Injector

Soma Tech Intl offers the Medrad Mark V ProVis Injectors up to 50% below OEM prices with the same service and warranty as new. The Medrad Mark V ProVis is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Medrad Mark V ProVis, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on Injectors. If necessary, parts are replaced to make sure that all aspects of the Medrad Mark V ProVis are to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the Medrad Mark V ProVis is working like new it undergoes a special cosmetic restoration process. The Medrad Mark V ProVis is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the Medrad Mark V ProVis is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Medrad Mark V ProVis injector contact soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is actively looking to purchase a Medrad Mark V ProVis If you or your facility are looking to sell your Medrad Mark V ProVis, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Medrad Mark V ProVis takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech Intl also gives the option for trade-in credit on your medical equipment.  If you have medical equipment you would like to sell to Soma, send us a message here!
