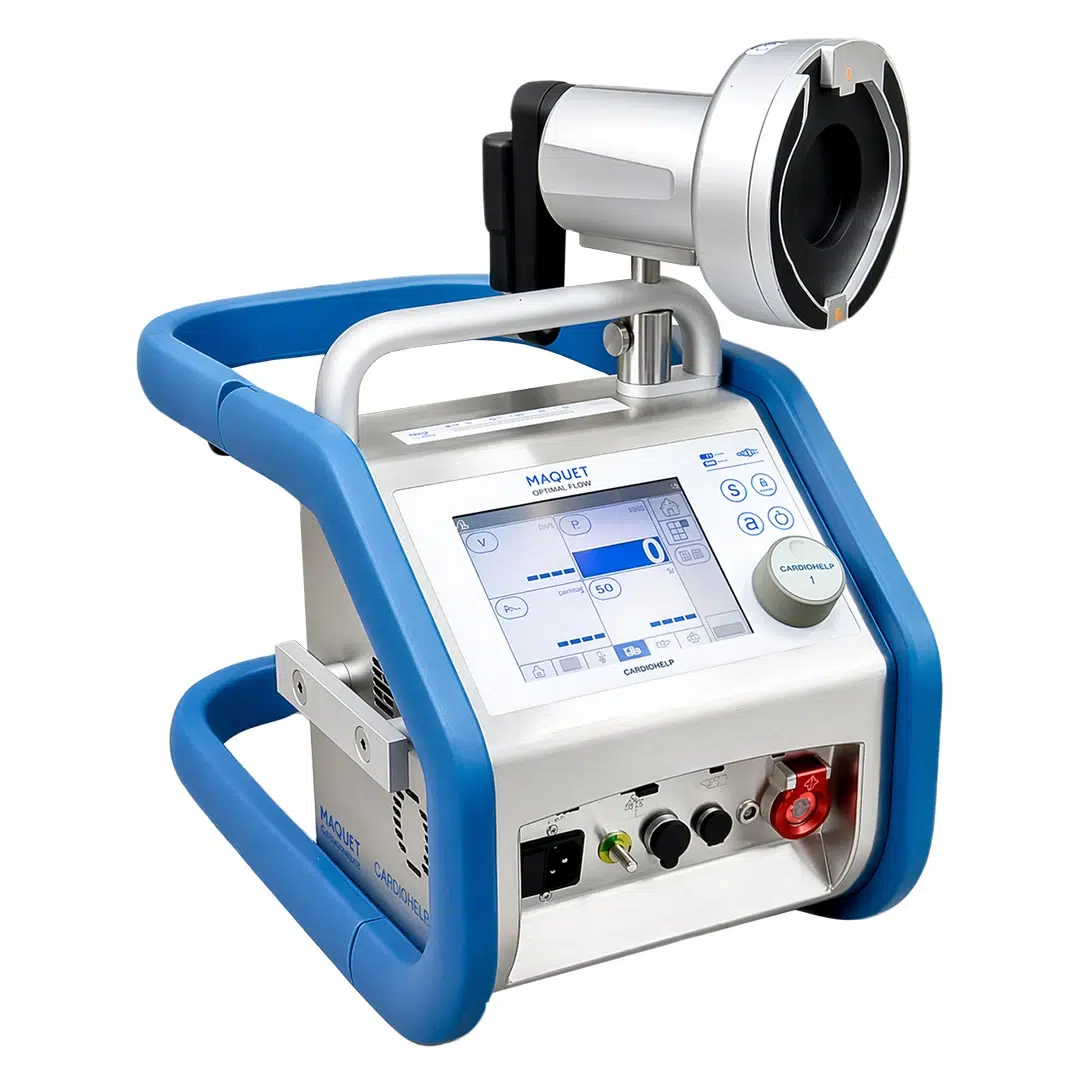

Maquet Cardiohelp System
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Maquet Cardiohelp System Features
The Maquet Cardiohelp System is a compact extracorporeal life support platform designed to provide temporary cardiac and respiratory support in critical care and transport settings. Engineered for mobility, the system integrates pump, oxygenation, and monitoring capabilities into a single portable unit, allowing clinicians to initiate and maintain ECMO therapy with greater flexibility. Its intuitive interface displays real-time patient and system parameters, supporting quick decision-making during high-acuity situations. The Cardiohelp system is designed for use in a variety of environments, including operating rooms, intensive care units, and interhospital transport. With its modular design and reliable performance, it supports both adult and pediatric patients requiring short-term circulatory and pulmonary assistance.
- Integrated ECMO Platform: Combines pump, oxygenator, and monitoring functions into a single compact system.
- Portable Design: Lightweight and transport-ready configuration supports use during patient transfer and in multiple clinical environments.
- Real-Time Monitoring: Displays key parameters such as blood flow, pressures, and oxygenation.
- User-Friendly Interface: Intuitive controls and clear display simplify system operation in critical care situations.
- Flexible Clinical Applications: Supports both cardiac and respiratory support for adult and pediatric patients.
Maquet Cardiohelp Specifications
Dimensions
- Height: 14 in (31.5 cm)
- Width: 10 in (25.5 cm)
- Depth: 17 in (42.7 cm)
- Weight: 22 lb (10 kg)
Display
- Type: LCD Touchscreen
- Size: 5.7 in
Battery
- Operating Time: Minimum 90 minutes (fully charged)
Electrical Requirements
- AC Power: 100–240 V, 50–60 Hz
- DC Power: 11–28 V
HLS Set Advanced 5.0
- Maximum Blood Flow: 0.5 – 5 L/min
- Gas Exchange Membrane Surface Area: 1.3 m2
- Heat Exchange Surface Area: 0.3 m2
- Priming Volume (HLS Module Advanced): 240 mL
- Priming Volume (HLS Set): 570 mL
- Membrane: Diffusion membrane (PMP)
- Coating: BIOLINE Heparin Coating
- Integrated Sensors:
- 3 Pressure Sensors (Venous, Arterial, Internal)
- Venous Oxygen Saturation (SvO2)
- Hemoglobin
- Hematocrit
- Venous and Arterial Temperature
- Duration of Use: Maximum 6 hours
HLS / HIT Set Advanced 7.0
- Maximum Blood Flow: 0.5 – 7 L/min
- Gas Exchange Membrane Surface Area: 1.8 m2
- Heat Exchange Surface Area: 0.4 m2
- Priming Volume (HLS Module Advanced): 273 mL
- Priming Volume (HLS Set): 600 mL
- Membrane: Diffusion membrane (PMP)
- Coating: BIOLINE and SOFTLINE (HIT)
- Integrated Sensors:
- 3 Pressure Sensors (Venous, Arterial, Internal)
- Venous Oxygen Saturation (SvO2)
- Hemoglobin
- Hematocrit
- Venous and Arterial Temperature
- Duration of Use: Maximum 6 hours
Refurbished Maquet Cardiohelp System
Soma Tech Intl offers the Maquet Cardiohelp System ECMO machine up to 50% below OEM prices, providing the same service and warranty as a new. This ECMO system undergoes both technical and cosmetic refurbishment to ensure reliable performance and a clean, professional appearance. During the refurbishment of the Maquet Cardiohelp System, our in-house biomedical engineers, who are highly trained and certified to work on ECMO machines, carefully inspect and test the unit. If required, components are replaced to ensure the Cardiohelp ECMO system meets the original manufacturer’s engineering specifications.
Once the Maquet Cardiohelp System ECMO machine is fully operational, it proceeds through a detailed cosmetic restoration process. The system is thoroughly cleaned, minor cosmetic imperfections are addressed, exterior surfaces are refinished when necessary, and labels or decals are replaced if needed. After completing this refurbishment process, the Cardiohelp System both functions and presents like new. Soma Tech Intl is ISO 13485:2016 Certified, ensuring strict quality control standards are maintained for all capital medical equipment sold. Before the Maquet Cardiohelp System is labeled patient-ready and prepared for shipment, it undergoes a final quality assurance inspection to confirm proper operation and consistent performance.
Soma Tech Intl is actively seeking to purchase Maquet Cardiohelp System ECMO machines. If your facility is interested in selling a Cardiohelp ECMO system or other Maquet ECMO machines, contact Soma Tech Intl. Our experienced purchasing department will guide you through the entire process. Selling your used or pre-owned Maquet equipment directly to Soma eliminates the middleman and helps ensure your medical facility receives the highest value for its equipment. Soma is 100% HIPAA compliant, ensuring your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit for your medical equipment. If you have a Maquet Cardiohelp System ECMO machine or other used medical equipment you would like to sell, send us a message.
