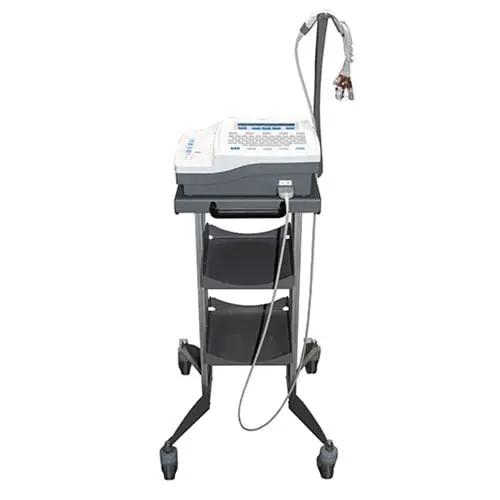

Burdick Atria 3100

Quotes in less than 24 hours Download Specifications

Burdick Atria 3100 Features

The Burdick Atria 3100 EKG is a powerful electrocardiogram system that can ensure an accurate report. These reports can be viewed and edited directly on the mobile cart as well as transmitted to an ERM system at your facility through an ethernet connection or a wireless Bluetooth connection. The Burdick 3100 is a lightweight, compact system that operates either manually or automatically and can trace 3, 4, 6, or 12 lead ECG. The Burdick EKG comes with a standard keyboard and intuitive menus that make the ECG machine easy to use. The Burdick Atria 3100 can be used on patients ranging from pediatric to adult.

  • Stores up to 50 EKGs.
  • Manual or Automatic 3, 4, 6, and 12-lead EKG Printouts.
  • Wireless 802.11, Bluetooth, or Wired Ethernet capabilities.
  • Download and upload patient information and test results directly from your EMR system.
  • Quickly review, edit, and confirm test results right from the patient’s chart.

Burdick Atria 3100 Specifications


  • Height: 5.5 In (14 cm)
  • Width: 15 In (38.1 cm)
  • Depth: 13.1 In (33.4 cm)
  • Weight (Including external power supply): 11 lb (5 kg)


  • 2 x 40 Characters backlit LCD screen


  • Full alphanumeric keypad plus designated quick keys

Data Storage

  • 50 Records standards

Input Power

  • AC Operation 100-240 VAC ± 10%, 50-60 Hz ± 3 Hz


  • Duration: 55 minutes of continuous printing


  • Printout Device: 216 mm thermal dot array
  • Paper Dimension:
    • 8.5” x 11” (US letter)
    • 210mm x 300mm (A4)
  • Paper Type: Thermal sensitive (Burdick Assurance or HeartLine paper recommended)
  • Chart Speeds: 12.5, 25, 50 mm/sec


  • Lead selection: I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6, and Alternate Chest Lead (chest lead selection V2R through V9R, V7, V8, and V9).
  • Modes: Automatic, automatic rhythm, or manual rhythm.
  • Frequency Response: Meets or exceeds ANSI/AAMI EC11-1991 and IEC 60601-2-51 standards.
  • Input Impedance: Meets or exceeds ANSI/AAMI EC11-1991 and IEC 60601-2-51 standards.
  • Electrode Offset Tolerance: ±300 mV.
  • Sampling: 8000 Samples/Sec. 2.5µV LSB.
  • Artifact Filter Response: 40 Hz, -3db.
  • Storage: 500 samples/second, 2.5µV LSB.
  • Pacemaker Display Capability: Meets or exceeds ANSI/AAMI EC11-1991 standard and IEC 60601-2-51.
  • Interpretation (Optional): Diagnosis, measurements, and reasons statements based on five demographic criteria.
