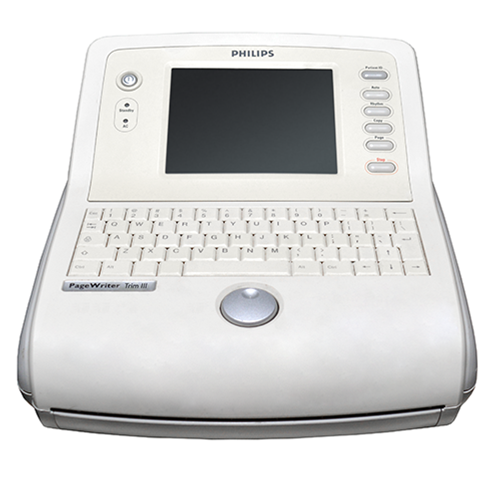

Philips PageWriter Trim III EKG

Quotes in less than 24 hours Download Specifications

Philips PageWriter Trim III Features

The Philips PageWriter Trim III is a portable, compact EKG. The Trim III is a 12-lead ECG monitoring system that offers advanced technology for reporting, and EKG storage. The Philips PageWriter is easy to use and offers full-page printouts (8.5 x 11) of ECG readings. The 6.5-inch color display screen makes it easy to preview an EKG while also continuously displaying the patient’s heart rate. It offers a variety of connectivity modes from Modem, CF Card, and LAN options. The PageWriter can easily connect to the Philips TraceMasterVue ECG Management system. The ECG system can store up to 150 ECGs in the system’s internal memory and can use the TraceMasterVue system to transfer data for additional storage.

  • 12-lead EKG reports
  • Easy-to-use with 6.5-inch color display
  • Full-page recordings (8.5 x 11, z-fold paper)
  • Modem, CF Card, or LAN Connectivity
  • Can store up to 150 ECG reading

Philips PageWriter Trim III Specifications


  • Depth: 15.3 in (38.8 cm)
  • Width: 12.2 in (31 cm).
  • Height: 6.9 in (17.6 cm).
  • Weight: 16.3 lb (7.38 kg) – includes battery, patient module, lead wires, alligator clips, electrode pack, and paper pack.

Display Screen

  • 640 x 480-pixel resolution.
  • Color TFT display.
  • 6.5 inches in diameter.

Electrical Power

  • Line Power: 100 – 240 VAC, 50/60 Hz, 65 VA max.
  • Battery Capacity: Typically 40 ECGs on a single charge or 30 minutes of continuous rhythm recording.
  • Battery Recharge: Eight hours to full capacity.

ECG Acquisition:

  • R/T (real-time) ECG (12 leads).
  • Auto (12 leads).
  • Rhythm (up to 12 leads).
  • Disclose (1 lead).

Auto Frequency Response

  • 0.05-150 Hz, 0.15-150 Hz, 0.5-150 Hz, 0.05-100 Hz, 0.15-100 Hz, 0.5-100 Hz, 0.05-40 Hz, 0.15-40 Hz, 0.5-40 Hz

Rhythm Frequency Response

  • 0.05-150 Hz, 0.15-150 Hz, 0.05-100 Hz, 0.15-100 Hz, 0.05-40 Hz, 0.15-40 Hz


  • AC noise
  • Artifact
  • High and low pass

Environmental Operating Conditions

  • 10° to 40°C (50° to 104°F)
  • 15% to 80% relative humidity (non-condensing)
  • Up to 4,550 m (15,000 ft.) altitude

Environmental Storage Conditions

  • 0° to 50°C (0° to 122°F)
  • 1 5% to 90% relative humidity (non-condensing)
  • Up to 4,550 m (15,000 ft.) altitude
