Schiller At 10 Plus Features

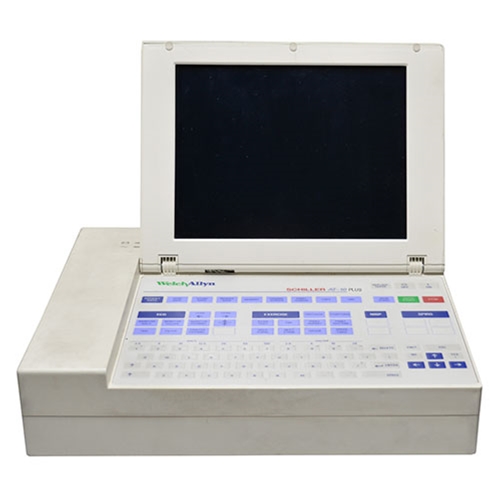

The Schiller Welch Allyn AT-10 Plus is an EKG Monitor that can measure resting and exercising ECG readings. The AT-10 Plus, a 12-lead ECG system, comes with interpretation and memory in a laptop design. It offers the ability to print 8.5 x 11 (or z-fold) EKG print-outs, a Built-in LAN, and VGA output ports. The Cardiovit AT-10 Plus EKG system offers a full-page thermal print-out and a color LCD screen for viewing the EKG waveforms. Additional on-screen menus make for a quick and dependable EKG system.
- Laptop / tilt-screen design
- High-resolution 10.4″ TFT color LCD screen
- 12-channel resting and exercise ECG
- 15VAC and battery-operated
- Easy operation of all ECG functions
- Built-in thermal printer with 8.5″x11″ z-fold printing paper
- Built-in RS-232 interface for data transfer to SEMA 200 (with serial cable)
- Built-in LAN interface for data transfer via XML
- Bi-directional communications
- Options, including LAN, wireless (Wi-Fi), and/or modem
- Optional barcode scanner for EMR records
Schiller At 10 Plus Specifications
Dimensions
- Length: 13.7 in (34.8 cm)
- Width: 11.34 in (28.8 cm)
- Depth: 3.43 in (8.7 cm)
- Weight: 9.26 lb (4.2 kg)
Monitor
- Backlit for graphic and LCD Alphanumeric representation
- Resolution: 800x 600 dots
Power Supply
- Mains voltage: 220 – 20 V (nominal), 50/60 Hz; 100 – 115 V (nominal), 50/60 Hz
- Power Consumption: 14VA to 28VA (Max)
- Battery: Operational with built-in rechargeable battery
Battery
- Nickle cadmium 9.6 V
- Capacity: 2 hours normal use, 3 hours Standby
- Battery life: Under normal operating conditions, 4 years
- Recharging:90% – approx. 7 hours, 100% – approx. 15 hours
Printer
- High-resolution thermal printing, 8 dots/mm (amplitude axia), 40 dots/mm (time axis), @ 25mm/s
- Frequency range: 0.05 to 150 Hz(IEC/AHA)
- Chart paper: Thermal reactive, Z-fold, 14 21 cm (DIN A4; letter size)
- Chart print-out speed: 5/12.5/25/50 mm/s (manual print)
- Sensitivity: 5/10/20 mm/ms (manual print)
- Recording tracks: 3 to 12 channels, positioned optimally on 200mm, automatic baseline adjustment
Interfaces
- RS-232 connector for treadmill
- RS-232 connector for Ergometer
- RS-232 connector for neurotech sensor
- VGA connector for external monitor
- ECG cable interface
- DC input – 0.5V/cm
- DC output – 0.5v/cm
- further interface options with the communications module
Memory
- Storage for up to 40 ECG recordings. Further Memory is available with the extended memory option.
Environmental Conditions
- Operational Temperature: 10 to 40°c
- Storage Temperature: -10 to 50°c
- Relative Humidity: 25 to 95% (no condensation)
- Pressure during operation: 700 to 1060 hPa
Leads
- 12 simultaneous leads
- Standard
- Cabrera
