Schiller At 2 EKG

Quotes in less than 24 hours Download Specifications

Schiller At 2 Features

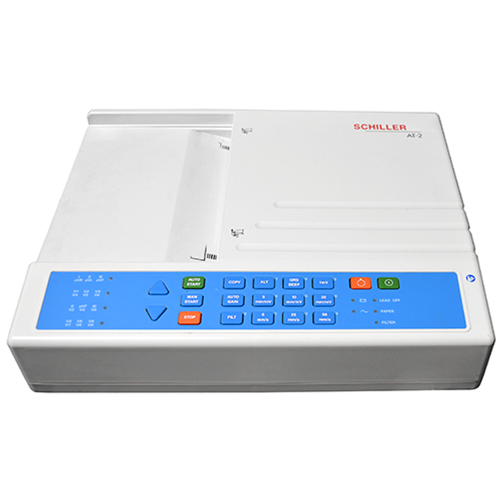

The Welch Allyn Schiller AT 2 is a 12-lead EKG system that can support a six-channel format. The AT 2 is a battery-operated system that can run up to 6 hours and provide full-size (8.5 x 11) report printouts. The EKG offers an LCD screen for quick previews and an alphanumeric keyboard for ease of use. The Cardiovit At 2 is a lightweight system, making it ideal for either a Physician’s office or ambulatory field work.

  • 6 or 12-channel representation of all 12-leads
  • Automatic and Manual Modes
  • Full size 8 x 11 report printouts (A4)
  • Rechargeable battery
  • can do 400 recordings on a fully charged battery
  • Single button operation

Schiller At 2 Specifications


  • Length: 15.7 in (400 mm)
  • Width: 13 in (330 mm)
  • Depth: 4 in (100 mm)
  • Weight: 11 lbs. (5 kg)


  • Battery: Built-in 12 V lead-acid battery (rechargeable)
  • Battery Capacity: 4 hours normal use – 300 printouts
  • Power Consumption: Recording: 28 VA max

Other Specifications

  • Leads: Standard / Cabrera
  • Paper Speed: 5 / 10/ 25 / 50 mm/s (direct)
  • Sensitivity: 5 /10 / 20 mm/mV, either automatically adjusted or manually selected
  • Chart Paper: Thermoreactive – Z-folded, 210 mm wide, perforation 280 mm
  • Printing Process:
    • The high-resolution thermal print head,
    • 8 dots per mm / 200 dots per inch (amplitude axis)
    • 40 dots per mm / 1000 dots per inch (time axis 25mm/s)
  • Recording Tracks: 6 channels, positioned at optimal width on 200 mm, automatic baseline adjustment
  • Automatic lead Programs: Printout of all 12 leads
  • Data Record: Listing of ECG recording data

ECG Storage

  • Circular input memory for 10 s, 12-lead ECG.

ECG Amplifier

  • Simultaneous, synchronous registration of all 9 active electrode signals (= 12 standard leads)
  • Sampling frequency: 1000 Hz
  • Digital resolution: 5 µV
  • Dynamic range: ±9.5 mVAC
  • Max. electrode potential: ±300 mVDC
  • Time constant: 3.2 s
  • Frequency response: 0.05 to 150 Hz (-3 dB)<?li>
  • Input impedance: >2.5MOhms at 10Hz

Environmental Conditions

  • Temperature, Operating: 10O to 40 deg. C
  • Temperature, Storage: -10 deg. to 50 deg. C
  • Relative humidity: 25 to 95% (noncondensing)
  • Atmospheric pressure: 700 to 1060 hPa

Internationally Renowned ECG Technology

  • 6-channel real-time printout at 5, 25, or 50 mm/s
  • Automatic 6 /12 channel printout on one or two pages
  • Quick and reliable PC-based interpretation and measurement program for adult and children ECGs
  • No need to repeat ECG recordings since the quality of the waveforms is optimized by the SCHILLER smoothing and baseline filters
  • Save time and paper by simply monitoring all 12 leads on the integrated 3-channel screen

Fulfilling Highest Spirometry Standards

  • Thanks to the SP-250 sensor with its unique disposable mouthpiece, the risk of cross-contamination is eliminated
  • Small and light sensor
  • Simple and quick calibration
  • Inspiratory and expiratory pulmonary function tests: FVC, SVC, MV, MVV as well as pre/post medication tests
  • Several norm value tables can be selected as needed
  • Visual support due to real-time graphics and display of the measured values on the screen
