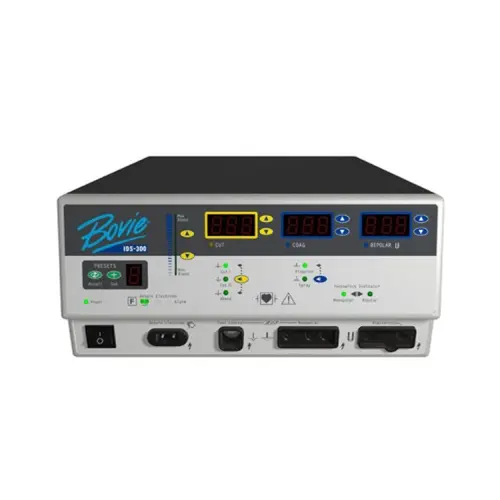

Bovie IDS-300 Features
The Bovie IDS-300 is an electrosurgical generator. The Bovie IDS-300 offers monopolar and bipolar functionality. The electrosurgical unit is a digital system making it easier while still providing exceptional performance and reliability. The system has two different cutting modes, giving the flexibility to cut a wide range of tissues. Additionally, the Bovie IDS 300 offers ten different Blending settings that can be adjusted to the desired level of hemostasis. Coagulation Modes on the electrosurgical unit include Pinpoint and Spray modes. Pinpoint coagulation allows for precise control of bleeding in specific areas. At the same time, Spray Mode coagulation helps to control the bleeding over a larger surface of vascular tissue.
- Cutting Modes include: Cut I Mode, Cut II Mode, and Blended Cut
- Coagulation Modes: Pinpoint Coagulation and Spray Coagulation
- Stores up to 10 power settings for cutting, coagulation, and bipolar modes
Bovie IDS 300 Electrosurgical Unit Specifications
Dimensions
- Height: 6 in (15.3 cm)
- Width: 12.25 in (31.1 cm)
- Depth: 16.25 in (41.3 cm
- Weight: 19 lb (<8.75kg)
Operating Parameters
- Ambient temperature range: 10° to 40° C
- Relative humidity: 30% to 75%, non-condensing
- Atmospheric pressure: 70kPa to 106kPa
- Warm-up time: If transported or stored at temperatures outside the operating temperature range, allow one hour for the generator to reach room temperature before use.
Input Power
- Input Voltage: 100-240 ~ VAC ± 10%
- Mains line frequency range (nominal): 50 – 60 Hz
- Power consumption: 560 VA
- Fuses (two): 6.3 A (slow blow)
Transport and Storage
- Ambient temperature range: -40° to +70° C
- Relative humidity: 10% to 100%, including condensation
- Atmospheric pressure: 50kPa to 106kPa
