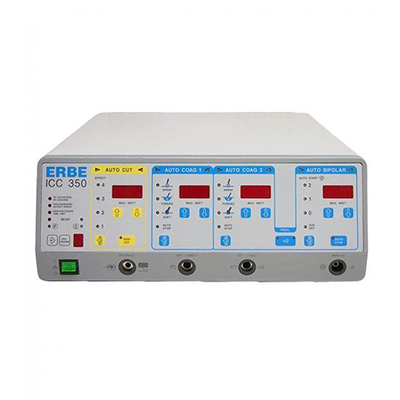

ERBE Erbotom ICC 350
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
ERBE Erbotom ICC 350 Features
The top-of-the-line ERBE ERBOTOM ICC 350 heads ERBE’s family of units for HF surgery. They’ve given it one-of-a-kind functionality for all-around use, with the features and abilities developed in close teamwork with leading surgeons from many different medical disciplines.
The ICC 350 has received worldwide attention and recognition; it is a step forward from conventional surgical methods and opens the way for new ones.
- General surgery
- Dermatology
- Endoscopy
- Gastroenterology
- Vascular Surgery
- Genecology
- Neurosurgery
- Plastic Surgery
- Oral surgery
ERBE Erbotom ICC 350 Specifications
Dimensions
- Dimensions (W x H x D): 410 × 152 × 368 mm
- Weight: 10.0 kg
Electrical
- Rated power voltage: 240V/230V/115V/110V/100V± 10%
- Rated power frequency: 50/60 Hz
- Power current: 4.0 A at 230 – 240 V/8.0 A at 100-115 V
- Power consumption in Standby mode: 25 watts
- Power consumption at max. HF power: 620 watts 920 VA
- Current consumption in Standby mode: 150 mA at 230 – 240V/300 mA at 100-115 V
- Potential equalization terminal: Yes
- Power fuses: 2 slow burn, 4 A at 230 – 240 V/8 A at 100-115 V
Cutting
- HF power adjustment: With up/down increment keys
- Form of HF voltage: Sine-shaped
- Nominal frequency of HF voltage: 330 kHz
- Cutting quality: 4 coagulation effects, selectable by key
- Constancy of the coagulation effects: Automatically regulated
- Support for initial incision and cutting: PPS, PowerPeakSystem
- Monopolar AUTO CUT: With automatic voltage control
- Monopolar HIGH CUT: with automatic arc control
- Nominal HF output: 300 watts at 500 ohms
- Peak HF power with PPS: 400 watts at 500 ohms
- Monopolar ENDO CUT: 200 watts at max 200 ohms
- BIPOLAR AUTO CUT: With automatic voltage control
- Nominal HF output: 100 watts at 500 ohms
Coagulation
- HF power adjustment: With up/down increment keys
Monopolar SOFT COAG
- Form of HF current: Sine-shaped
- Nominal frequency of HF voltage: 300 kHz
- Nominal HF output: 120 watts at 125 ohms
- End of coagulation: with Pedal or AUTO STOP
Monopolar FORCED COAG
- Form of HF current: Pulse-modulated
- Nominal frequency of HF voltage: 1 MHz
- Nominal HF output: 120 atts at 350 ohms
Monopolar SPRAY COAG
- Form of HF current: Pulse-modulated
- Nominal frequency of HF voltage: 1 MHz
- Nominal HF output: 120 watts at 500 ohms
Biopolar COAG
- Form of HF current: Sine-shaped
- Nominal frequency of HF voltage: 330 kHz
- Nominal HF output: 120 watts at 125 ohms
- Start of coagulation: By foot pedal or AUTO START
- End of coagulation: By foot pedal or AUTO STOP
Safety Precautions
-
- Safety class: I, corresponds to DIN IEC 601-1
- Type: CF, corresponds to DIN IEC 601-1
- Software check of LF leakage current, Icritical: 0.05mA (only with capacitive grounding)
- Software check of HF leakage current, Icritical: 150 mA/300MA
- NESSY: Neutral electrode Safety System
- Neutral electrode switching: Switch-selectable capacitively grounded or with floating power
- Self-Check: Includes all safety-related subassemblies
Environmental Conditions for Storage
-
-
- Temperature -40°C to + 70°C
- Air humidity, relative 30% to 95%
-
Environmental Conditions for Operating
-
-
- Temperature +10°C to + 40°C
- Air humidity, relative 30% to 75%, noncondensing
-
Soma Tech Intl offers the ERBE Erbotom ICC 350 electrosurgical unit up to 50% below OEM prices with the same service and warranty as new. The ERBE electrosurgical unit is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Erbotom ICC 350, it is carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on electrosurgical units. If necessary, parts are replaced to ensure that all aspects of the Erbotom ICC 350 electrosurgical unit meet the original engineering manufacturer’s specifications. This ensures that the unit is working the same way it originally left the manufacturer. After the Erbotom ICC 350 is functioning like new, it undergoes a special cosmetic restoration process. The Erbotom ICC 350 is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this rigorous refurbishing process, the unit functions and looks new. Soma Tech Intl is ISO 13485 certified and ensures that the best quality is provided for all capital medical equipment that they sell. Before the ERBE Erbotom ICC 350 is labeled patient-ready and packed for shipment, it goes through one final quality control test to ensure all aspects are working as they should. If you are looking to buy a refurbished electrosurgical unit, contact Soma at [email protected] or call us at 1-800-438-7662.
Soma Tech Intl is actively looking to purchase an ERBE Erbotom ICC 350 electrosurgical unit. If you or your facility are looking to sell your Erbotom ICC 350 electrosurgical unit, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned ERBE equipment removes the middleman from the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPAA compliant and ensures that your equipment arrives at our facility in the same condition it left yours. Soma Tech Intl also offers trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
