Valleylab SurgiStat Features

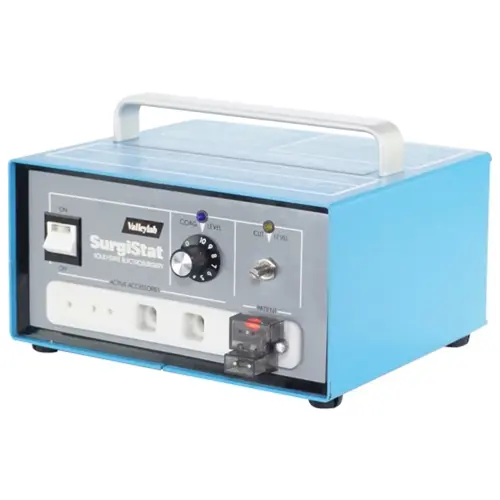

The Valleylab SurgiStat is an isolated, solid-state electrosurgical generator that is designed for procedures that require low power and are generally performed in offices, clinics, and emergency rooms. The Valleylab SurgiStat can cut and coagulate. This Valleylab ESU can be used in bipolar and monopolar modes.
- Cut and Coagulation modes.
- Monopolar and Bipolar operation.
- Perfect for common office-based procedures.
- Easy-to-use.
Valleylab SurgiStat Specifications
Dimensions
- Height: 6.3” (16 cm)
- Width: 9.5” (24.1 cm)
- Depth: 8.5” (21.6 cm)
- Weight: 13 lbs (5.8 kg)
Output Waveform
- Blended Cut: 300k Hz ± 25k Hz damped sinusoid with 50k Hz ± 5 Hz repetition
- Coag: 1 MHz ± 25k Hz damped sinusoid with 50k Hz ± 5 Hz repetition
Output Characteristics
- Blended Cut
- Nominal Open Circuit P-P Voltage: 2400 volts ± 400
- Nominal Power (Watts): 60 +5
- Crest Factor: 3.25 ± 0.5
- Coag
-
- Nominal Open Circuit P-P Voltage: 4200 volts ± 400
- Nominal Power (Watts): 25 + 2
- Crest Factor: 8 ± 0.5
Output Power Control
- Cut and Coag output current is essentially linear with control rotation from settings of (1) to (10).
- Duty: Maximum setting: 50%, 3 minutes on, 3 minutes off
Output Isolations
- Output Isolation: 115v Operation
- Line Frequency Source Leakage Current: = 0.2 uA
- Line Frequency Sink Leakage Current = 12 uA
- RF Patient Leakage: = 150 mA rms (with typical active accessory)
- Line Ground Leakage Current: 60 Hz
- Unit Off: = 10 uA
- Unit On: = uA
Line Regulation
- Line variations of 100 volts to 130 volts or 200 to 260 volts
- Cut: Output power 40 watts at 115 volts variation less than ± 4 watts
- Coag: Output power 15 watts at 115 volts variation less than ± 1 watt
