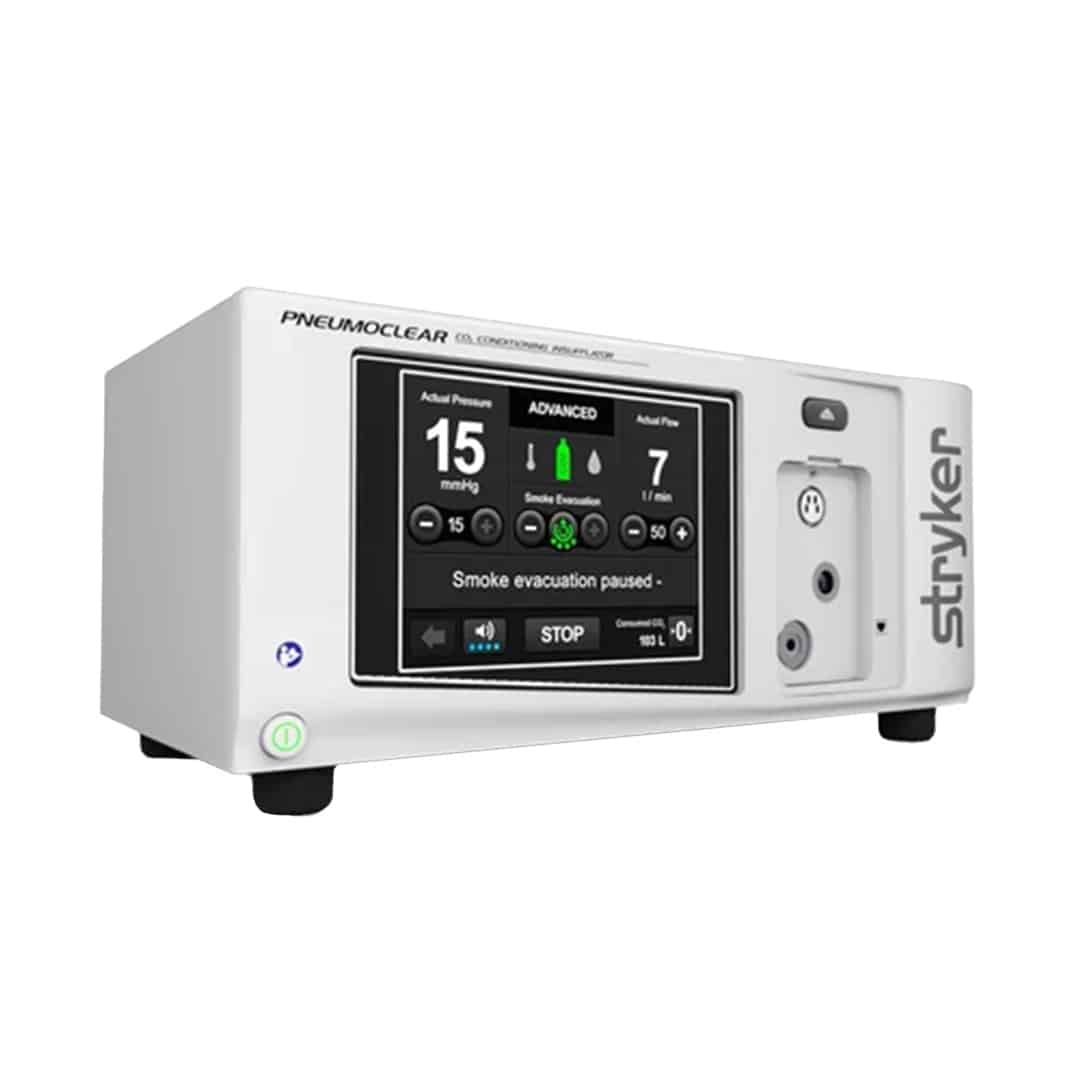

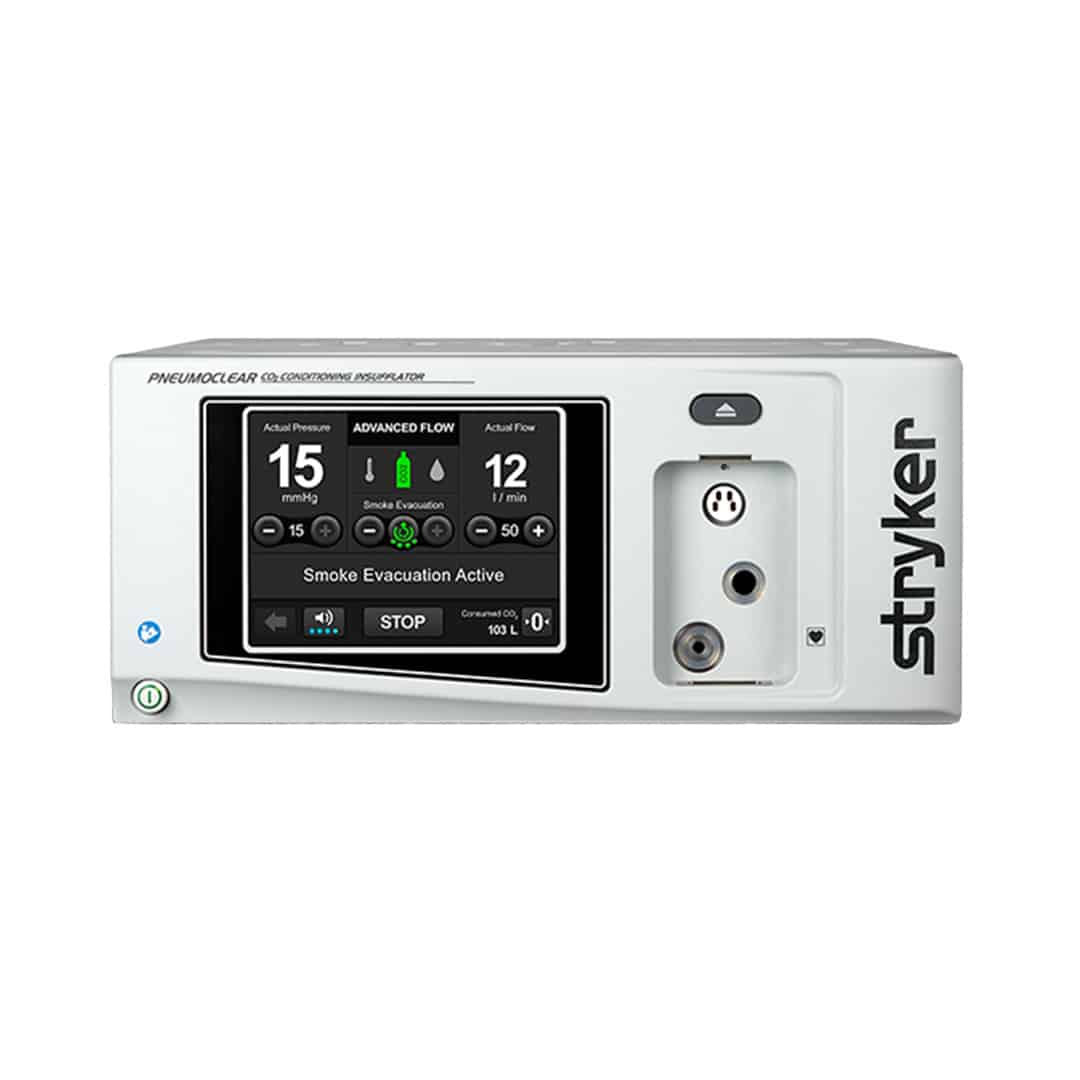

Stryker PneumoClear FM300
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Stryker PneumoClear FM300 Features
The Stryker PneumoClear Insufflator revolutionizes laparoscopic and robotic surgery with the first all-in-one system integrating heating, humidification, and smoke evacuation. Designed to enhance surgical precision and patient outcomes, it delivers conditioned CO₂ to reduce tissue trauma, improve image clarity by 30%+, and protect OR staff from harmful surgical smoke. Its six smart operating modes (Standard, Advanced Flow, Highflow/Bariatric, Pediatric, TAMIS, Vessel Harvest) adapt to diverse procedures.
- Integrated Smoke Evacuation: Actively removes toxic surgical smoke (equivalent to 27–30 unfiltered cigarettes per case) with one-touch activation.
- Heated & Humidified CO₂: Reduces post-op pain, cellular damage, and adhesions vs. cold/dry gas (clinically proven).
- Smart Flow Management: Maintains stable pneumoperitoneum (up to 50 L/min) while evacuating smoke.
- Five Interchangeable Tube Sets: Include options for heating, humidification, and smoke evacuation (e.g., PN: 620 050 350).
- Real-Time Monitoring: Displays actual pressure (mmHg), flow rate (L/min), and CO₂ consumption on a user-friendly interface.
- OR Workflow Optimization: Saves ~18 minutes per laparoscopic case by consolidating functions.
- AORN Go Clear Compliant: Supports smoke-free OR initiatives with built-in safety protocols.
Stryker PneumoClear Specifications
Dimensions
- Height: 12.6 in (32 cm)
- Width: 8.7 in (22 cm)
- Depth: 15.0 in (38 cm)
- Weight: 15.4 lbs (7 kg)
Performance
- Pressure Range: Adjustable up to 15 mmHg (actual pressure displayed).
- Flow Rate: Up to 50 L/min (Highflow mode).
- CO₂ Conditioning: Heated to body temperature (37°C), 95% relative humidity.
- Smoke Evacuation Rate: 12 L/min (configurable).
Compatibility
- Tube Sets:
- Heated/Humidified (PN: 620 050 300).
- Heated/Humidified/Smoke Evacuation (PN: 620 050 350).
- High Flow/Smoke Evacuation (PN: 620 050 250).
Certifications
- Complies with AORN Go Clear Award™ standards for smoke evacuation.
Refurbished Stryker PneumoClear Insufflator
Soma Tech Intl offers the Stryker PneumoClear Insufflator up to 50% below OEM prices with the same service and warranty as new. Each unit undergoes ISO 13485-certified refurbishment, including:
- Biomedical Testing: Calibration of pressure/flow sensors and smoke evacuation function.
- Cosmetic Restoration: Repainting, decal replacement, and tube port inspection.
- Quality Assurance: Validated against original performance specs.
