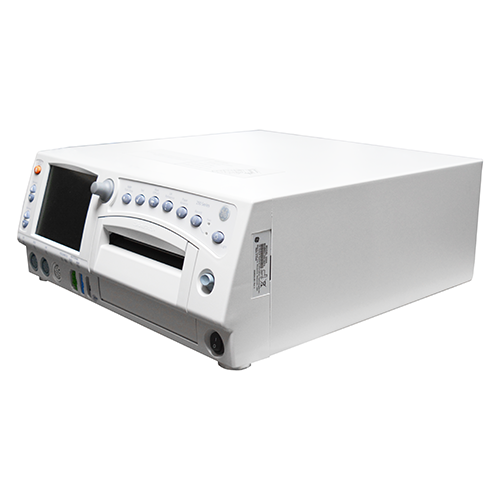

GE Corometrics 259 Features
The GE Corometrics 259 is a fully antepartum/intrapartum fetal monitoring system. The Corometrics 259 includes innovative features that can help deliver a high-quality birthing experience with advanced patient care. The Corometrics 250 series can monitor fetal heart rate and activity, along with monitoring parameters for the mother. These monitoring features include heart rate, temperature, oxygen saturation, ECG, and blood pressure. The Fetal Monitor can give you a comprehensive, detailed reading for labor and delivery.
The Monitor is equipped with an LCD screen that can simultaneously display fetal and maternal parameters plus the maternal waveforms. The Monitoring system additionally offers a recorder that prints continuous trends and alphanumeric data on a stripe chart. The GE Corometrics system offers a variety of ports on the back of the system to transfer data throughout the facility. Along with connectors for telemetry and data entry. The Corometrics 259 series also includes the Corometrics 259cx . The difference between the 259 and the 259cx is that the CX version has a color LCD screen.
- Maternal Blood Pressure
- Maternal Temperature
- Maternal Oxygen Levels
- MECG
- Centricity Perinatal (CPN)
- Telemetry Interface)
- Smart BP
- Backlit keys
- Dimmable display
- 9-crystal ultrasound technology
- One-touch hot keys
GE Corometrics 259 Specifications
Dimensions
- Height: 6.7 in (17 cm)
- Width: 16.7 in (42.4 cm)
- Depth: 17.5 in (44.4 cm)
- Weight: 22 lb (10.9 kg)
Power
- Nominal Line Voltage: 100 VAC, 120 VAC, 220 VAC, 230 VAC, 240VAC
- Line Frequency: 50/60Hz
- Power Consumption: 100 W, 100 W, 0.4 A, 0.4 A
- Chassis Leakage: <300 µA
Operating Environment
- Ambient Temperature: 50°F to 104°F (10°C to 40°C)
- Relative Humidity: 10% to 95%, non-condensing
- Atmospheric Pressure: 700–1060 mbar (525–795 mmHg)
Storage Environment
- Ambient Temperature: 14°F to 131°F (–10°C to 55°C)
- Relative Humidity:0% to 95%, non-condensing
- Atmospheric Pressure:700–1060 mbar (525–795 mmHg)
Recorder
- Speed: 1, 2, and 3 cm/min
- Speed Accuracy: ± 1%
FECG
- Technique: Peak detecting, beat-to-beat cardiotachometer
- Heart Rate Counting Rage: 30-240 bpm
- Heart Rate Resolution: ± 1 bpm
- Artifact Elimination: Selectable, ± 25 bpm artifact rejection
- Countable Input Signal Range: 15 µV to 2 mV peak-to-peak
- Offset Voltage Tolerance (Differential): ± 300 mVdc maximum
- Maximum Common Mode Voltage: 20 V peak-to-peak
- Preamplifier Bandwidth: 1–90 Hz
- Common Mode Rejection:
- Balanced: > 120 dB at mains frequency, with a patient cable
- Unbalanced 5kO RA or LA: > 110 dB at mains frequency
- Input Equivalent Noise: < 10 µV peak-to-peak
- Input Impedance:
- Differential: > 10 MO
- Common Mode: > 20 MO
- Mains Frequency Rejection: > 40 dB
- Leakage Current: < 10 µA at 100-240 VAC, electrically isolated
- Isolation, Mains-to-Patient: > 4 kVAC
Ultrasound Mode
- Technique: Pulsed Doppler with autocorrelation processing
- Transducer Type: 9-crystal
- Pulse Repetition Frequency:
- Single Ultrasound Mode: 4 kHz
- Dual Ultrasound Mode: 2 kHz
- Pulse Duration: 92 µs
- Transmitter Frequency: 1.151 MHz
- Spatial-Peak Temporal Average Intensity: Ispta < 10 mW/cm2
- Spatial-Average Temporal Average Intensity: Isata< 5 mW/cm2
- Focal 20 dB Beam Area: 16.6 cm2 , at a range = 7 cm
- Peak Instantaneous Intensity: 1.8 mW/cm2
- Peak-Negative Acoustic Pressure: p < 10.0 kPa
- Heart Rate Counting Range: 50–210 bpm
- Leakage Current: < 100 µA at 100-240 VAC, isolated by the transducer
Uterine Activity Mode
Toco transducer
- Range (typical): 0–100 mmHg (0–13.3 kPa)
- Resolution: 1 mmHg (0.13 kPa)
- Bandwidth: dc to 0.5 Hz
- Excitation Voltage:
- Zero Set Temperature Drift: < 0.1 mmHg/°C (0.013 kPa/°C), excluding transducer
- Leakage Current: < 100 µA at 100-240 VAC, electrically isolated
MECG
- Technique: Peak detecting, beat-to-beat cardiotachometer
- Maternal ECG Electrode Type: Medtronic 1700-003 or equivalent
- Leads Available: I, II, and III
- Heart Rate Counting Range: 30–240 bpm
- Heart Rate Resolution: ± 1 bpm
- Heart Rate Update Rate: > 1 update per second
- Countable Input Signal Range: 0.5 mV to 5 mV peak-to-peak
- Baseline Drift: < 0.5 mV RTI
- Tall T-wave Rejection: 0.8 x QRS amplitude
- Heart Rate Meter Response Time:
- 80–120 bpm Step Increase: < 2 seconds
- 80–40 bpm Step Decrease: < 3 seconds
- Alarm Time for Tachycardia 80–200 bpm: < 10 seconds (high alarm limit at 100 bpm)
- Offset Voltage Tolerance (Differential): ± 300 mVdc maximum
- Maximum Common Mode Voltage: 20 V peak-to-peak
- Preamplifier Bandwidth: 0.6 to 40 Hz
- Common Mode Rejection:
- Balanced: > 80 dB at mains frequency, with a patient cable
- Unbalanced 5K RA or LA: > 50 dB at mains frequency
- Input Equivalent Noise: Input Impedance: < 30 µV peak-to-peak
- Differential: > 2.5 MO
- Common Mode: > 10 MO
- Mains Frequency Rejection: > 40 dB
- Mains Frequency Rejection: > 40 dB
- Leakage Current: < 10 µA at 100-240 VAC, with cable, electrically isolated
- Isolation, Mains-to-Patient: > 4 kVAC
- Leads Off Detection: dc current < 0.1 µA
- Alarms:
- Audio: Alternating 1.5-second chimes
- Visual: Flashing heart rate numeric or message
- Limits: User-selectable high and low maternal heart rate
- Technical: Leads of
- Tachycardia Response Time: < 8 seconds
Refurbished GE Corometrics 259 Fetal Monitors
Soma Tech Intl offers refurbished GE Corometrics 259 fetal monitor systems up to 50% below OEM prices with the same service and warranty as new. The Corometrics 259 fetal monitor is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the GE Corometrics 259 its carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on GE fetal monitors. If necessary, parts are replaced to make sure that all aspects of the fetal monitor are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the GE 259 is working like new it undergoes a special cosmetic restoration process. The Corometrics 259 fetal monitor is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the unit functions and looks like new. Soma is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment that they sell. Before the GE Corometrics 259 fetal monitor is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy refurbished GE Corometrics 259 contact soma at [email protected] or call us at 1-800-GET-SOMA.
Soma Tech Intl is also actively looking to purchase a GE Corometrics 259 fetal monitors If you or your facility is looking to sell your GE Corometrics 259 Fetal Monitor system, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned GE Corometrics 259 Fetal Monitor to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma Tech is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!
