LivaNova Sorin Stockert S5

24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included.

LivaNova Sorin Stockert S5 Features

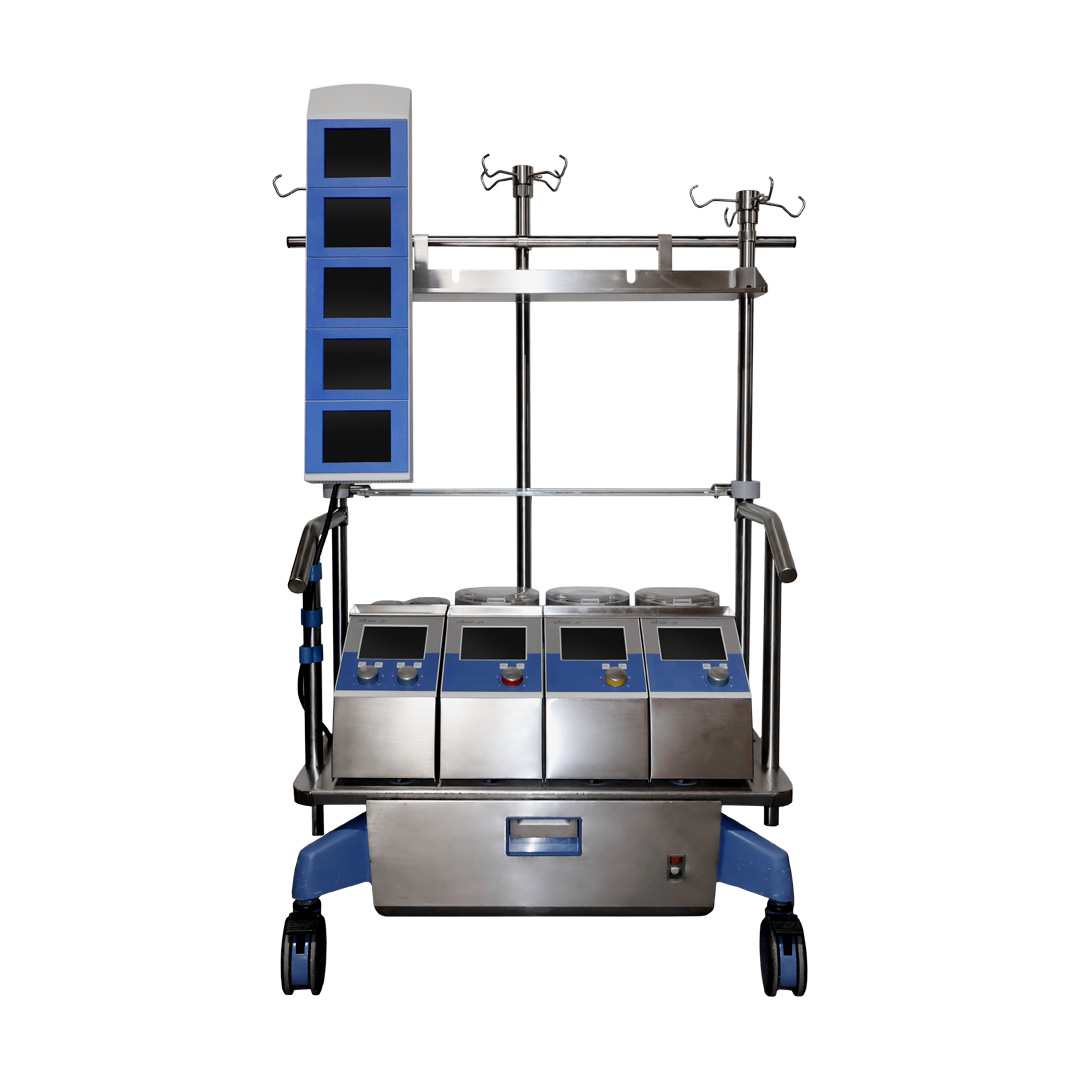

The LivaNova Sorin Stockert S5 is the 5th generation of the perfusion heart-lung machine. The S5 offers state-of-the-art hardware and technology. The Sorin heart-lung machine has a similar design to the Sorin Xtra system – making it more flexible and configurable in different situations. The Stockert S5 system can be configured to hold three roller pumps to a full system which includes five roller pumps and a monitoring system. The system consists of different components that can be included in your system; Roller pumps, double roller pumps, a centrifugal pump, and a system panel. Each roller pump has an independent touchscreen control panel that can be adjusted using a knob to set the speed of the electronics in the pump.

  • Console for 3 to 5 roller pumps. 2 Additional roller pumps can be mounted on the mast.
  • Panel with 3, 4, or 6 display modules.
  • SIII and SI Encore system users can easily transfer their external devices for data management or SCP to the S5 System.
  • Pump heads can be rotated into position to optimize the tubing layout.
  • Up to 4 TFT displays can be stacked vertically in the last panel.
  • Brushless, direct-drive roller pumps reduce noise.

LivaNova Sorin Stockert S5 Specifications

Dimensions (Console)

  • Height: 25” (64 cm)
  • Depth: 23.6” (60 cm)
  • Width
    • 3-Position: 29.3” (74.5 cm) (Including push bars)
    • 4-Position: 35” (89 cm) (Including push bars)
    • 5-Position: 42.2” (107.3 cm) (Including push bars)
  • Weight
    • 3-Position: 183.9 lbs (83.4 kg)
    • 4-Position: 190.3 lbs (86.3 kg)
    • 5-Position: 197.3 lbs (89.5 kg)

Pump Dimensions

  • Roller Pump 150
    • Height: 11.22” (28.5 cm)
    • Width: 7.1” (18 cm)
    • Depth: 19.1” (48.5 cm)
    • Weight: 33lb (15 kg)
  • Double Roller Pump 85
    • Height: 10.1” (25.7 cm)
    • Width: 7.1” (18 cm)
    • Depth: 19.1” (48.5 cm)
    • Weight: 26.5 lb (12 kg)
  • Mast Roller Pump 150
    • Height: 11.4” (28.9 cm)
    • Width: 7” (17.8 cm)
    • Depth: 11.8” (29.9 cm)
    • Weight: 24.4 lb (11.9 kg)
  • Mast Roller Pump 85
    • Height: 9.3” (23.7 cm)
    • Width: 4.6” (11.6 cm)
    • Depth: 6.9” (17.5 cm)
    • Weight: 11lb (5 kg)
  • 2 Mast Roller pumps 85
    • Height: 9.3” (23.7 cm)
    • Width: 10.2” (26 cm)
    • Depth: 7.9” (20 cm)
    • Weight: 24.3 lb (11 kg)

Pump Specifications

  • Roller Pump
    • Diameter of pump raceway Ø: 150 mm
    • Diameter of occlusion roller Ø: 30.5 mm
  • Double Roller Pump
    • Diameter of pump raceway Ø: 85 mm
    • Diameter of occlusion roller Ø: 15 mm
  • Speed Range: 0 to 250 rpm (clockwise, counterclockwise)
  • Deviation in Speed Accuracy: ±1% of the terminal value 250 rpm plus ±0.5% of set value
  • Speed Deviation in The Event of a Fault (Detection of faulty speed from 30 rpm): during continuous operation: +15% max.; 2 revolutions max. until pump stops
  • Direction of Rotation: Clockwise/counterclockwise

System Panel

  • 3 Display and Control Modules
    • Height: 18.7″ (47.5 cm)
    • Width: 7.2″ (18.4 cm)
    • Depth: 3.7″ (9.4 cm)
    • Weight: 8.6 lbs (3.9 kg)
  • 4 Display and Control Modules
    • Height: 23.2″ (59 cm)
    • Width: 7.2″ (18.4 cm)
    • Depth: 3.7″ (9.4 cm)
    • Weight: 9.9 lbs (4.5 kg)
  • 5 Display and Control Modules
    • Height: 28.5″ (72.3 cm)
    • Width: 7.2″ (18.4 cm)
    • Depth: 3.7″ (9.4 cm)
    • Weight: 11.2 lbs (5.1 kg)
  • 6 Display and Control Modules
    • Height: 18.7″ (47.5 cm)
    • Width: 14.7″ (37.5 cm)
    • Depth: 3.7″ (9.4 cm)
    • Weight: 15.4 lbs (7 kg)

Pressure

  • Measurement range mmHg -200 mmHg to +800
  • Resolution 1 mmHg

Cardioplegia

  • Pressure measurement range -200 mmHg to +800 mmHg
  • Resolution 1 mmHg

Temperature monitor

  • Display range 0 °C to +50 °C

Timer

  • Counting range 0 – 999 min 59 sec

Refurbished Sorin S5 Heart-Lung Machine

Soma Tech Intl offers refurbished S5 Heart-Lung Machines up to 50% below OEM prices with the same service and warranty as new. The Sorin Heart-Lung Machine is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on a Stockert heart-lung machine, it’s carefully inspected and tested by our in-house biomedical engineers who are highly skilled and certified to work on LivaNova S5 Heart-Lung Machines. If necessary, parts are replaced to make sure that all aspects of the pump are functioning properly. Once everything is in working order, the unit is calibrated back to the original engineering manufacturer’s specifications. This ensures that the unit is working the same way that it originally left the manufacturer. After the perfusion system is working like new, it undergoes a special cosmetic restoration process. The modular perfusion system is cleaned, minor scratches and dents are repaired, it’s painted, and new decals are replaced if necessary. After this strenuous refurbishing process, the Unit functions and looks like new. Soma Tech is ISO 13485 certified and ensures that the best quality is given to all capital medical equipment they sell. Before the Sorin heart-lung machine is labeled patient-ready and packed up for shipment, it goes through one last quality control test that makes sure all aspects are again working as they should. If you are looking to buy a refurbished Sorin S5 contact Soma at [email protected] or call us at 1-800-GET-SOMA.

Soma Tech Intl is also actively looking to purchase S5 Heart-Lung Machines. If you or your facility is looking to sell your Sorin S5, be sure to contact Soma Tech Intl. Soma has a dedicated and experienced purchasing department that helps you through the entire process. Selling your used or pre-owned Sorin S5 Heart-Lung Machine to Soma Tech takes out the middle man in the equation. This also ensures that your medical facility gets top dollar for your equipment. Soma is 100% HIPPA compliant and makes sure that your equipment gets to our facility in the same condition that it left yours. Soma Tech also gives the option for trade-in credit on your medical equipment. If you have medical equipment you would like to sell to Soma, send us a message here!

Banner

Questions about our Heart-Lung Machines?

Soma Tech Intl offers a wide range of heart lung machines. If you have any questions about any of our heart-lung machines or need a quick quote, call us and one of our knowledgeable sales representatives will help you.

Looking to sell your heart-lung machines? Soma ensures your facility gets top dollar for your equipment and also gives the option for trade-in credit.
