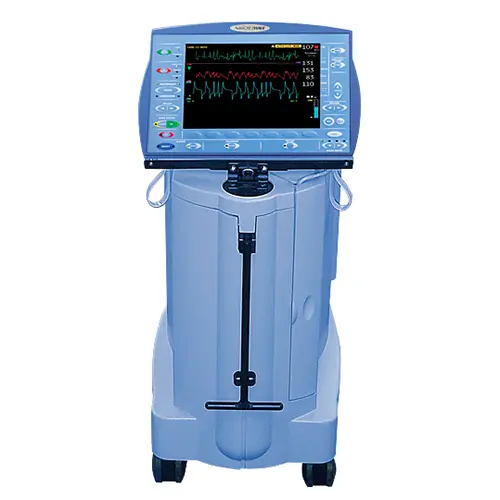

Arrow ACAT 2 Wave Intra-Aortic Balloon Pump

Quotes in less than 24 hours Download Specifications

Arrow ACAT 2 Features

The Arrow ACAT 2 Wave Intra-Aortic Balloon Pump (IABP) system provides counter-pulsation support to the most unstable of IABP patients. Those with tachyarrhythmias and variable pulse pressures, all while maintaining 1:1 assist and with full volume delivery to the catheter. The Arrow AutoCAT 2 console, when combined with the FiberOptic IAB technology, utilizes a physiologic timing algorithm called WAVE that provides uncompromised patient support to a broad range of patients.

The Arrow ACAT 2 system is integrated with AutoPilot which is designed to make automatic operation adjustments in the timing and triggering parameters. This optimizes counter-pulsation support in patients with a wide range of conditions. The AutoCat 2 system uses fiber-optic technology and a physiology-based timing algorithm, WAVE, to deliver beat-specific support.

The ACAT 2 provides precise helium pulses to an Intra-Aortic catheter, assisting an injured or failing heart. The AutoCat 2 WAVE is portable and designed for use in any hospital or transport setting, including ambulance and LifeFlight aircraft. The design includes a menu-driven, removable user-interface display with a 360-degree rotation and 45-degree tilt when mounted. The chassis and housing provide easy access to consumables, storage for cables and accessories, and rugged, shock-absorbing protection for precision components.

  • Converts the highly accurate arterial pressure from the fiber optic IAB catheter, fiberoptics series, to Aortic Flow on a beat-to-beat basis.
  • Proprietary WAVE technology automatically inflates IAB to coincide with aortic valve closure. In the presence of an arrhythmia, initiates real-time, automatic R-wave deflation.
  • Aortic Flow timing delivers the first truly intra-beat timing system based on individual patient physiology and virtually eliminates timing errors no matter how erratic the arrhythmia is.
  • 2 modes of operation: Operator and AutoPilot.
  • One button start-up.
  • Full-color display with fast inflation and deflation speeds.
  • Bellows / Stepper motor pneumatics with no maintenance required.
  • Automatic scaling of ECG and pressures.
  • Bright, clean display of all parameters, including assisted and unassisted pressures.

Arrow ACAT 2 Specifications

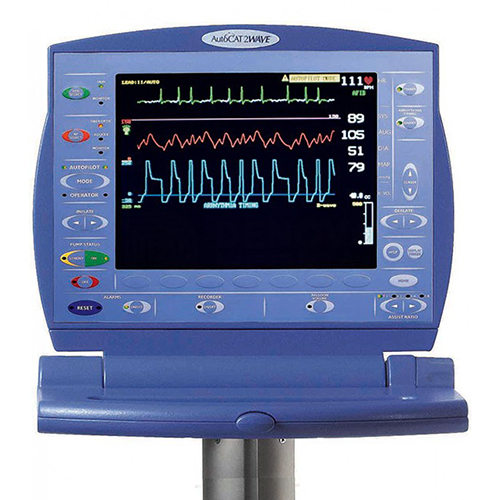

Control Module with Monitor

  • Height: 10″ (25.4 cm)
  • Width: 13.75″ (35 cm)
  • Depth: 2″ (5 cm)
  • Weight: 5 lbs (2.3 kg)

Pneumatic Drive Unit

  • Height: 31″ (80 cm)
  • Width: 13.5″ (34.3 cm)
  • Depth: 21″ (53.3 cm)
  • Weight: 95.5 lbs (42.4 kg)


  • AC requirements: 90–264 VAC 47–63 Hz
  • Typical power consumption: 245 watts
  • Maximum power consumption: 420 watts
  • Battery operating time: 90 minutes minimum with a full charge; 180 minutes with an optional second battery
  • Typical battery recharging time: 80% in 4 hours from full discharge; Recharge to 80% indicated by yellow light


  • FiberOptix™ capable: AP signal transmitted at the speed of light.
  • Proprietary WAVE® algorithm.
  • Proprietary Aortic Flow Timing Method.
  • AutoPilot™ mode of operation.
  • Microprocessor-based system architecture.
  • Modular system consisting of display/control module and pneumatic drive unit.
  • Proprietary deflation timing management.
