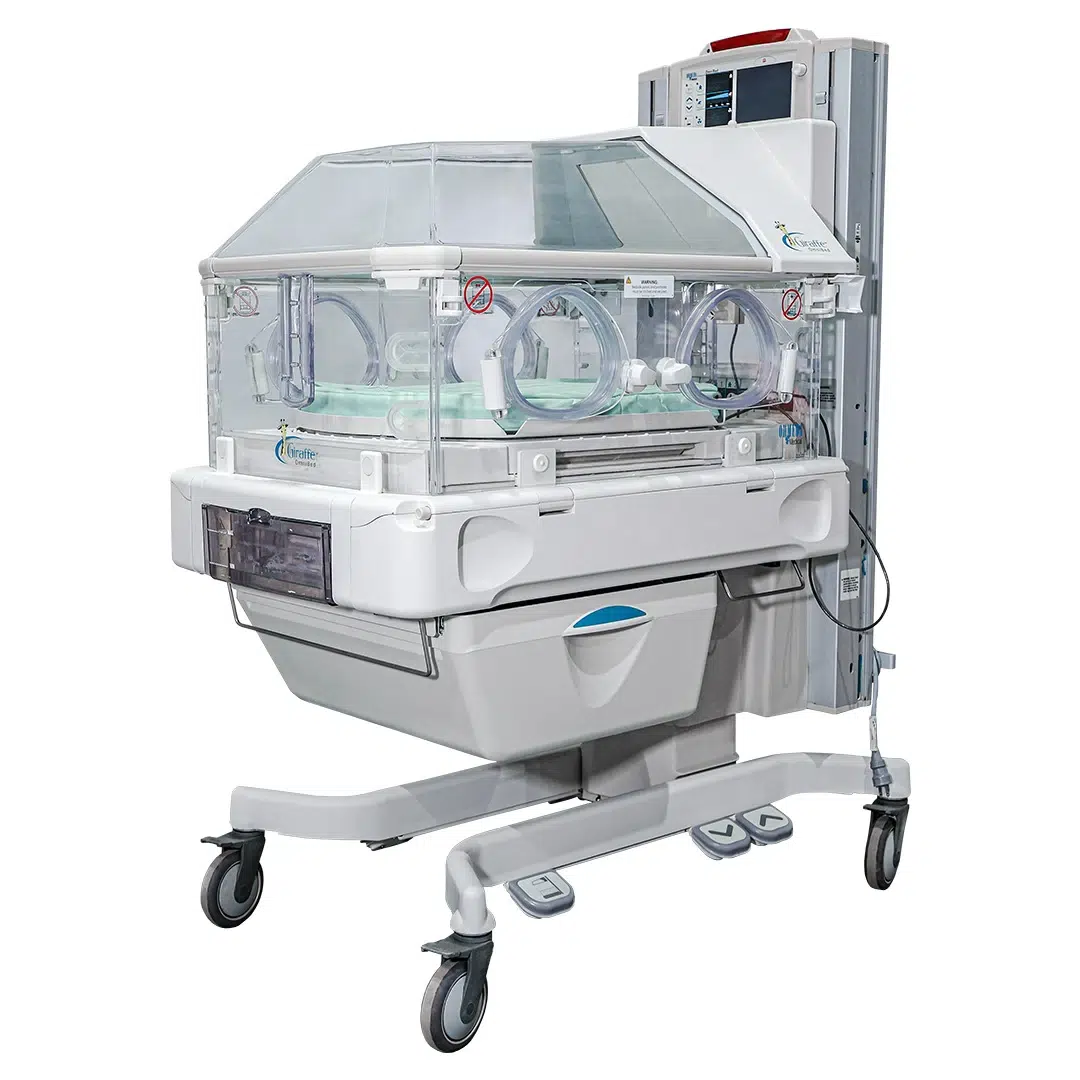

GE Giraffe OmniBed

Quotes in less than 24 hours Download Specifications

Incubator Features

The GE Giraffe OmniBed is a richly-featured neonatal microenvironment that combines the thermal advantages of a double-walled incubator with the access advantages of an open bed radiant warmer. Conversion between an incubator and an open bed warmer happens in seconds with a touch of a button. In either open or closed bed operation, the GE OmniBed provides precise microprocessor-controlled thermal support.

Stress on the infant, staff, and family members is reduced by eliminating the need to transfer the baby between incubators and warmers. Less equipment is now required for caregiving, cleaning, service, and storage. The Giraffe pioneered developmentally appropriate features including the patented Baby Susan rotating mattress and internal bed tilt. This feature enhances productivity by allowing the caregiver to properly position the baby for clinical procedures and to effortlessly facilitate family bonding. The GE OmniBed Incubator combines two traditional infant care products in one. A fully-featured Giraffe OmniBed incubator and a radiant warmer in one. Protects from heat loss while the bi-directional maintains thermal stability. An infant receives uniform heat regardless of position. Looking for a newer model? Check out the GE Giraffe OmniBed Carestation.

  • OmniBed Incubator with an Air Curtain to protect from heat loss
  • Radiant warmer that provides consistent heat in any position
  • A consistent and controlled thermal environment
  • Improved access to patient
  • A less stressful environment for the patient and family
  • No need to transfer a patient from the incubator to the infant warmer
  • 360-degree rotating patient mattress
  • Drop-down removable doors and a rotating bed provide easy access In-Bed scale

GE Giraffe Incubator Specifications


  • Maximum height: Canopy down: 70″ (178 cm) Canopy up: 94 in (239 cm)
  • Minimum height: Canopy down: 60″ (152 cm) Canopy up: 82.3 in (209 cm)
  • Footprint: 45″ x 26″ (114 cm x 66 cm)
  • Weight: 328.5 lb. (149kg)
  • Floor to mattress height: 33″ to 43 in (84 cm to 109 cm)
  • Mattress size: 25.5″ x 19.2″ (64.8 cm x 48.8 cm)
  • Access Door Size: 9″ x 31″ (23 cm x 78 cm)
  • Drawer Size: 19″ x 20″ (48 cm x 50 cm)
  • Drawer Depth: 8″ (20 cm)

Physical Characteristics

  • Full-Color Touch Display: 10.4″ (26.4cm) LCD
  • Mattress Tilt Angle: 12°
  • Micro Filter: 0.5µ – 99.8% efficiency (3M FiltreteTM)
  • Data Collection: RS-232
  • Tubing Access Ports: 8

User-Control Settings

  • Baby (Servo) Temperature Control: 35-37.5°C in 0.1° increments (Regulates baby temperature in both open and closed bed modes)
  • Manual Radiant Power Control: 0-100% in 5% increments
  • Air Temperature Control: 20-39°C in 0.1° increments
  • Servo Humidity Control Range: 30-95% relative humidity in 5% increments

In-Bed Scale Performance

  • Accuracy: ±0.35oz (10g)
  • Range: 0.66 lbs. to 17.6 lbs. (300g to 8kg)

Servo Oxygen Control Performance

  • Control Range: 21% to 65%
  • Display Range: 16 to 70%
  • Rise Time: < 10 minutes from 5% below set point in Whisper Quiet Mode after opening the door
  • Recovery From Opening Porthole: = 5 minutes from closing porthole to 5% below the set point
  • Alarms: ±3% from the set point
  • Accuracy 5%

Humidifier Performance

  • Recovery Time: < 15 minutes (typical) Recovery to 75% RH with 39°C air set temperature
  • Operating Time Between Refills: > 12 hours @ 65% RH control setting in a 25°C/50% RH ambient
  • Reservoir Capacity: 1000 ml
  • Servo Control Accuracy: ±10% for settings up to 85%: minimum 75% for settings > 85%
  • Ramp-up Time: = 50 minutes – Time to reach 75% RH with a 39°C control temp from a cold start in 25 °C, 50% RH room.

Operating Environment

  • Temperature: 20° to 30°C
  • Humidity: 5 to 85% RH (non-condensing)
  • Air Velocity: Up to 0.3m/sec
  • Water Ingress: IPXO

Storage/Shipping Information

  • Temperature: -25° to 60°C
  • Humidity: = 85% RH (non-condensing)
  • Pressure: 50-106k Pa

Service and Maintenance

  • Battery: 8.4V NiMH
  • Recommended Calibration/Preventative Maintenance Period: Annually
  • Limited Warranty: One-year parts and service *International specification, not available in the USA

Refurbished GE Omnibed

Soma Tech Intl offers Refurbished GE Giraffe Omnibed incubators and infant warmers up to 50% below OEM prices with the same service and warranty as new. Soma Tech Intl has a dedicated team of in-house biomedical engineers that technically and cosmetically refurbish our products. Each of our biomedical engineers is certified for the specific product they are working on. When the Giraffe comes into our facility, they are fully tested and calibrated back to OEM specifications. If necessary, parts are replaced to get the OmniBed incubator to function the way it did when it originally left the manufacturer. Once the Omnibed Incubator is working the way it should, it’s cleaned and undergoes a special cosmetic restoration process. Now that the OmniBed functioning properly, this cosmetic restoration process will make it look new. After the cosmetic restoration, the Giraffe then undergoes a final Quality Control test before being labeled patient-ready. Once the GE Giraffe is patient-ready, it is packaged up and ready for shipment. If you have medical equipment you would like to sell to Soma, send us a message here!
