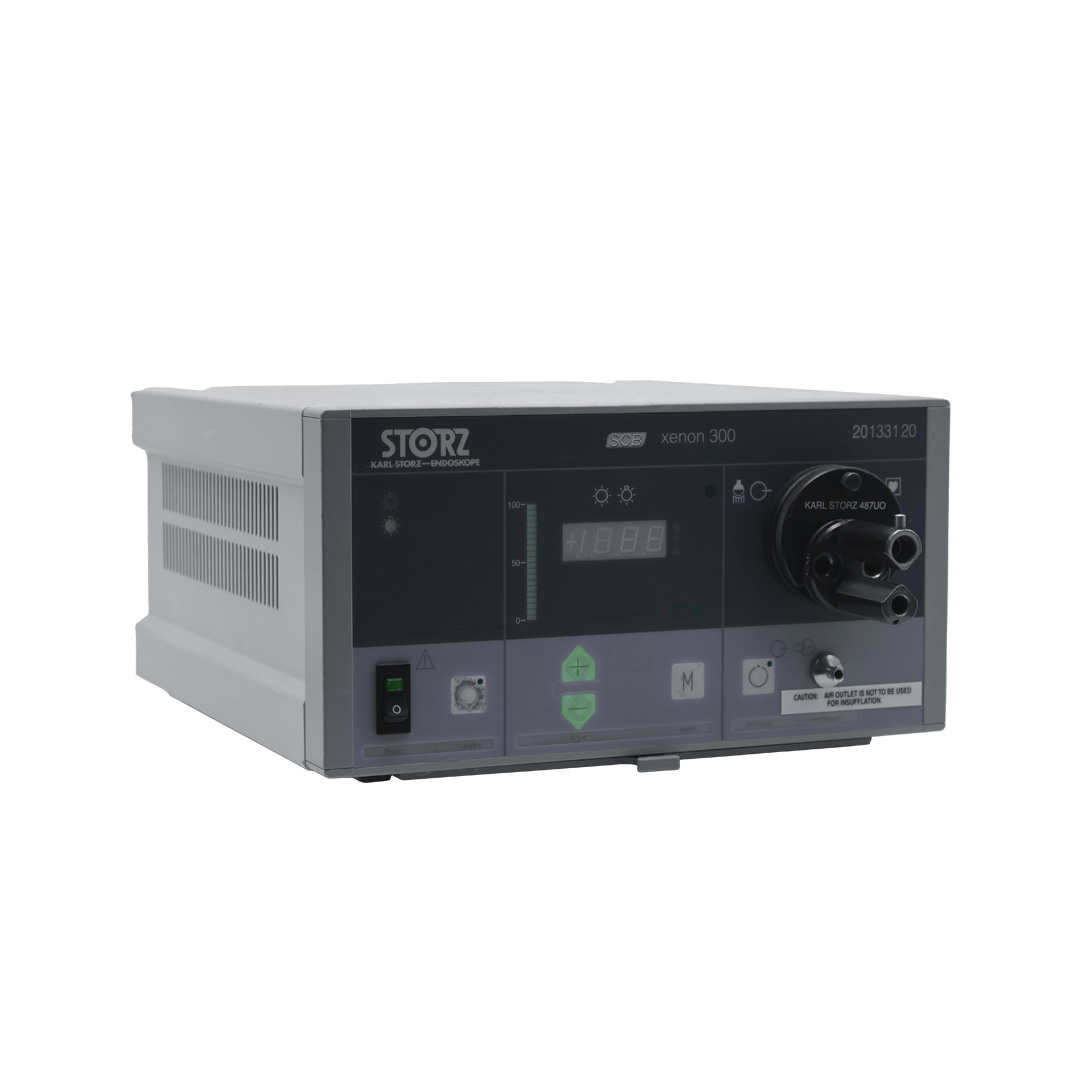

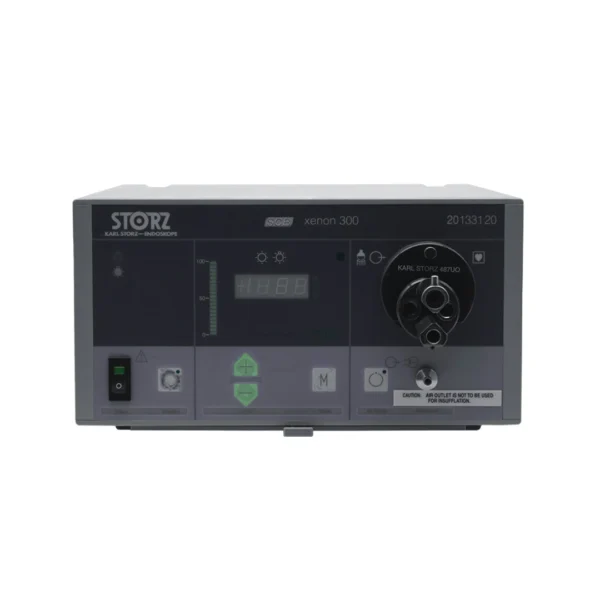

Storz Xenon 300 – 20133120 – 300 Watt Xenon Light Source

Add to quote
24-Hour Quotes

Pricing up to 50% below the cost of new,
with service and warranty included. Download Specifications

Storz Xenon 300 – 20133120 Features

The Karl Storz 20133120 Cermax xenon lamp by Excelitas is the xenon light source of choice for fiber optic illumination applications such as endoscopy and surgical headlamps. This is a 300-watt xenon arc surgical endoscope medical bulb with a parabolic reflector. The PE300BF light bulb has a 1000-hour life expectancy and a warranty period of up to 500 hours.

  • 300 Watt Xenon bulb
  • video in/out BNC sockets
  • 6-pin Mini-Din-sockets for optional SCB interface



Storz Xenon 300 – 20133120 Specifications

Dimensions

  • Width: 360 mm (14.2 inches)
  • Height: 150 mm (5.9 inches)
  • Depth: 430 mm (16.9 inches)
  • Weight: 4 kg (8.8 lbs)

Lamp

  • Type: Xenon short arc lamp
  • Power: 300 Watts
  • Rated Voltage: 14V
  • Rated Current: 21.43 Amps
  • Life Expectancy: 500-1000 hours
  • Reflector: Parabolic, integrally bonded to the lamp Optical System
  • Illumination: High-intensity, constant illumination
  • Focus Adjustment: Manual focus control for optimizing light output

Electrical

  • Input Voltage: 100-120 V or 220-240 V (depending on model)
  • Frequency: 50-60 Hz
  • Power Consumption: Approximately 600 VA
  • Fuse Rating: 10 A for 100-120 V; 5 A for 220-240 V

Cooling System

  • Type: Forced-air cooling
  • Fan: High-efficiency, low-noise fan
  • Temperature Monitoring: Over-temperature sensor for protection

Connections

  • Light Source Connection: Standard fiber optic light guide connection
  • Video Out: BNC socket for video output
  • SCB Interface: Compatible with Storz Communication Bus (SCB) systems

Environmental Conditions

  • Operating Temperature: 10°C to 40°C (50°F to 104°F)
  • Storage Temperature: -10°C to 60°C (14°F to 140°F)
  • Relative Humidity: 10% to 90% (non-condensing)

Safety and Compliance

  • Certifications: CE, UL, and CSA certified
  • Safety Features: Includes protective mechanisms against over-voltage, over-current, and overheating
  • Leakage Current: Meets IEC 601-1 requirement
