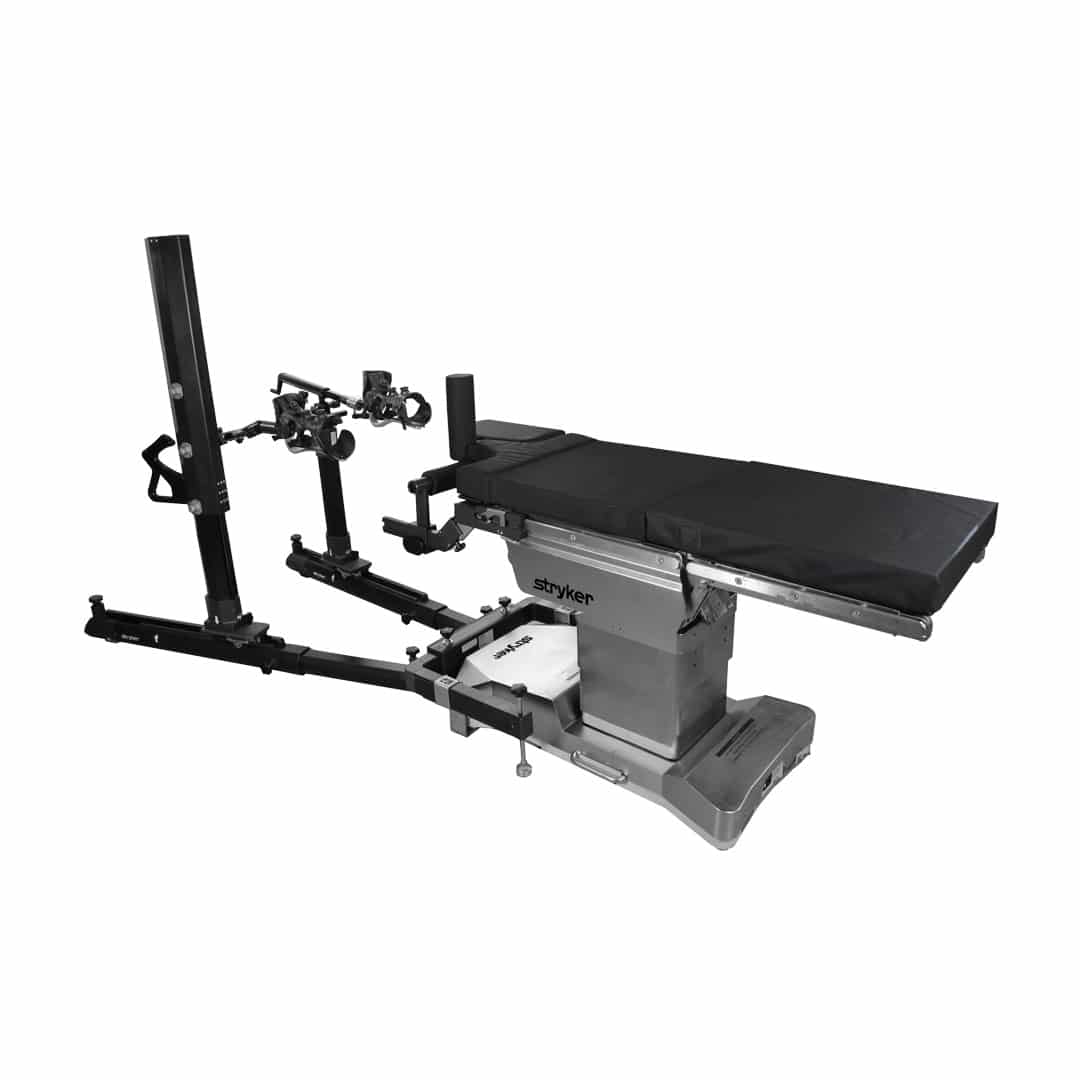

Stryker Pivot Guardian
24-Hour QuotesPricing up to 50% below the cost of new,
with service and warranty included.
Download Specifications
Stryker Pivot Guardian Features
The Stryker Pivot Guardian is a distraction system used in hip arthroscopy procedures. Instead of relying on a perineal post, it uses a post-free setup that helps reduce complications such as pudendal nerve injury and soft tissue pressure. Surgeons can adjust traction and positioning with accuracy, while the radiolucent carbon fiber frame allows clear intraoperative imaging.
- Post-Free Design: Removes the perineal post to lower the risk of nerve dysfunction, groin numbness, and soft tissue injury.
- Traction Force Gauge: Displays the estimated distraction force applied to the patient, typically ranging between 50–120 lbf.
- Traction Controls: Provides both fine and gross adjustments for hip adduction, abduction, flexion, extension, and rotation.
- Boot System: Uses a Boa® Fit System and an Achilles block to secure the ankle and reduce heel slip during distraction.
- Carbon Fiber Frame: Radiolucent construction reduces metal near the hip, allowing full anterior and posterior visualization and a true AP radiographic view.
- Gas Shock System: Assists with raising and lowering the patient’s foot for positioning.
- Operating Room Efficiency: Built for quicker setup, transport, and takedown to help reduce turnover time.
Physical Attributes
- Primary Construction Material: Carbon Fiber
- Key Feature: Radiolucent for unimpeded imaging
Traction & Control
- Traction Force Range: 50 – 120 lbf (as required for sufficient hip joint visualization)
- Traction Controls: Separate fine and gross traction controls for precise adjustments
- Range of Motion: Designed to allow for adduction, abduction, flexion, extension, and internal/external rotation of the hip.
Refurbished Stryker Pivot Guardian Patient Lifts
Soma Tech Intl offers the Stryker Pivot Guardian Distraction System up to 50% below OEM prices with the same service and warranty as new. The patient lift is not only technically refurbished but also cosmetically refurbished to make it work and look like new. When the refurbishing process starts on the Pivot Guardian, it is carefully inspected and tested by our own in-house biomedical engineers who are highly skilled and certified to work on patient positioning and distraction equipment. If necessary, parts are replaced to ensure that all aspects of the distraction system meet the original manufacturer’s specifications. This ensures that the unit operates just as it did when it left the manufacturer. Once the Pivot Guardian is functioning like new, it undergoes a specialized cosmetic restoration. The system is cleaned, minor scratches and dents are repaired, it’s repainted, and new decals are added if necessary. After this thorough refurbishment, the unit both functions and appears like new. Soma Tech Intl is ISO 13485 certified, ensuring top-quality standards in every piece of medical equipment sold. Before the Stryker Pivot Guardian is labeled patient-ready and prepared for shipment, it goes through a final quality control check to confirm all aspects are working as they should. If you are interested in a refurbished patient lift, contact Soma at soma@somatechnology.com or call us at 1-800-438-7662.
Soma Tech Intl actively seeks to purchase patient lifts. If you or your facility are looking to sell your Stryker Pivot Guardian, contact Soma Tech Intl. Soma’s experienced purchasing team will guide you through the process to ensure your medical facility receives the best value for your equipment. Soma is fully HIPAA-compliant and ensures your equipment arrives in the same condition it left your facility. Soma also offers trade-in credits for medical equipment. If you have equipment to sell, send us a message here.
